"Zosma" obverse side view in T3 deep cryogenically treated 440C high chromium martensitic stainless steel blade, 304 stainless steel bolsters, Texas Moss Agate gemstone handle, sheath in leather shoulder inlaid with frog skin, nylon stitching
"Zosma"

D2: Tremendous Wear Resistance

"Magdalena Magnum" obverse side view in D2 extremely high carbon die steel blade, hand-engraved 304 stainless steel bolsters, Pilbara Picasso Jasper gemstone handle, hand-carved, hand-tooled leather sheat
D2 blade on this "Magdalena Magnum"


"Vulpecula" obverse side view in D2 extremely high carbon die steel blade, hand-engraved 304 stainless steel bolsters, Petrified Fern fossil gemstone handle, hand-carved leather sheath inlaid with rayskin
More about this Vulpecula

What is D2?

An air hardening die steel. It's composed of these major alloy elements (I don't list the minor elements since they don't play a major role) :

  • Carbon: 1.3-1.7% This increases hardenability and wear resistance, but decreases toughness in higher amounts.
  • Vanadium: 1.0% This is added to contribute to the refinement of the carbide structure, and in forming very hard vanadium carbides increasing the hardness and wear resistance.
  • Chromium: 12.0% Added only to high alloy tool steels, this improves hardenability, high wear resistance, toughness, and corrosion resistance.
  • Molybdenum: 1.0% Improves deep hardening and toughness.

These basic elements (along with iron) are a simple combination that works well together, and has for many decades. By the way, these alloy chemical compositions are standardized in ANSI, the American National Standards Institute.

King of Wear Resistance?

Some anonymous posters say that I'm wrong to claim on this page: "D2—Wear Resistance King" and they claim that there are other steels that are also highly wear-resistant. They claim that I don't know what I'm talking about.

This is typical of internet geniuses posting on internet forums created by non-professionals, guys (mostly) who bounce around and read titles and headlines in their frantic hurry to post their own precious comments based on their exhaustive research of page titles, without the bother of taking the time to read and understand page content and context. This is the problem with high alloy steels; they are complex, and can't be fully understood by simplistic charts, graphs, or claims. It takes solid experience and use to understand them well.

For those of you who do read, thanks for being here! Please understand that I'm not making the claim that D2 is the absolutely best wear resistant material (it's hard to beat tungsten carbide, ceramic metal, and diamond). Because D2 has been around so long, and because it is so highly tested and proven through many decades of use in die steel and cutting tool applications, it is a highly regarded, reliable, longstanding performer. Like 440C, it's not the new kid on the block. It's been around long enough to have a serious reputation, one of extremely high wear resistance and tough durability, with good stain resistance.

New steels on the block, or steels not normally used in knife blades like cobalt steels, high speed steels, and powder metal technology steels may be processed to be more wear resistant, but may also lack toughness necessary on knife blades without tempering them back to a lower hardness. This defeats the purpose of using them in the first place! Other steels can be highly corrosion resistant, something haters of high chromium stainless steels tend to selectively ignore when it suits their particular argument of the day. The reality is that D2 can be made extremely hard and wear resistant, and very tough as well as stain resistant, and that is why there is a huge industrial following of this long-standing, grizzled old royal in the tool and die steel field.

If you don't like this claim and don't support D2's long and recognized value in the tool steel field and industry, please don't just post your uninformed opinion on some third rate forum of hobbyists. Go to industry, into the field of machining, and tell the hundreds of thousands of machinists, engineers, metallurgists, and professionals that D2 has no place in any machine, tool, or part, and demand that they immediately switch over to a newer steel, one with more curb appeal to the internet title cruiser. Explain to them that their ways are dated, old, and passé. After all, you've learned your metallurgy from the very best internet chat forums, where it's known that the real professionals (the actual leading edge of scientific and industrial minds) spend their time, generating 25,000 posts every couple years just proving what they know, while calling themselves "dizzybob123" (my apologies to the real dizzybob). What about those guys actually doing the work, building the tools, equipment, and devices? What about full-time professional knifemakers? Why they're just losers, with industrial jobs with metals and things...

The truth is that D2 is here to stay. There have been refining and processing improvements in D2 in the last several years, like powder metal production and slight variations in the element content. From this, it's clear to note that D2 is a proven high performer, in dies, cutting tools, and in fine handmade knives.

Crazy Carbon?

D2 has a lot of carbon. A lot. This varies somewhat between manufacturers, but know that the extremely high amount of carbon is critical to this steel's very long and proven reputation. Simply put, it has some of the highest carbon content in tool and die steels. Other types of "D" steels have up to 2.25 percent carbon (D3, D4) which is more carbon than cast iron! The leader of carbon in high chromium-high carbon tool steels is D7, which has 2.35 percent! D3, D4, D5, and D7 are not used to make knife blades because they are too brittle, and not tough enough to resist fracture in thin cross sectional areas.

Though you might think these small percentages (most less than two percent) of carbon seem like they're not much, this makes a huge difference in the properties of the steel alloy. With a large percentage of chromium, the element pair (chromium and carbon) make up quite a contender in the field of wear resistance in die steels. Add a bit of vanadium and D2 has quite the reputation of super-long cutting edge retention, or wear resistance. The averages are used in the chart because of the large range of manufacturer variations.

Critical Alloy comparison between 440C and D2 (in percent, averaged)
Steel Type Carbon Chromium Vanadium Molybdenum
440C 1.0 17.5 0.0 0.5
D2 1.3 12 1.0 1.0
Percentage Difference +165 -69 No Comparison! 200

I left out the less critical alloys to illustrate the profound differences in these steels. While the two steels both have elevated levels of chromium and carbon, they are quite different in performance. While 440C excels in corrosion resistance with good wear characteristics, D2 is much less corrosion resistant, but more highly wear-resistant. So much so, D2 is considered a die steel.

For more information, link to my Heat Treating and Cryogenic Treatment of Knife Blades page.

Back to page topics

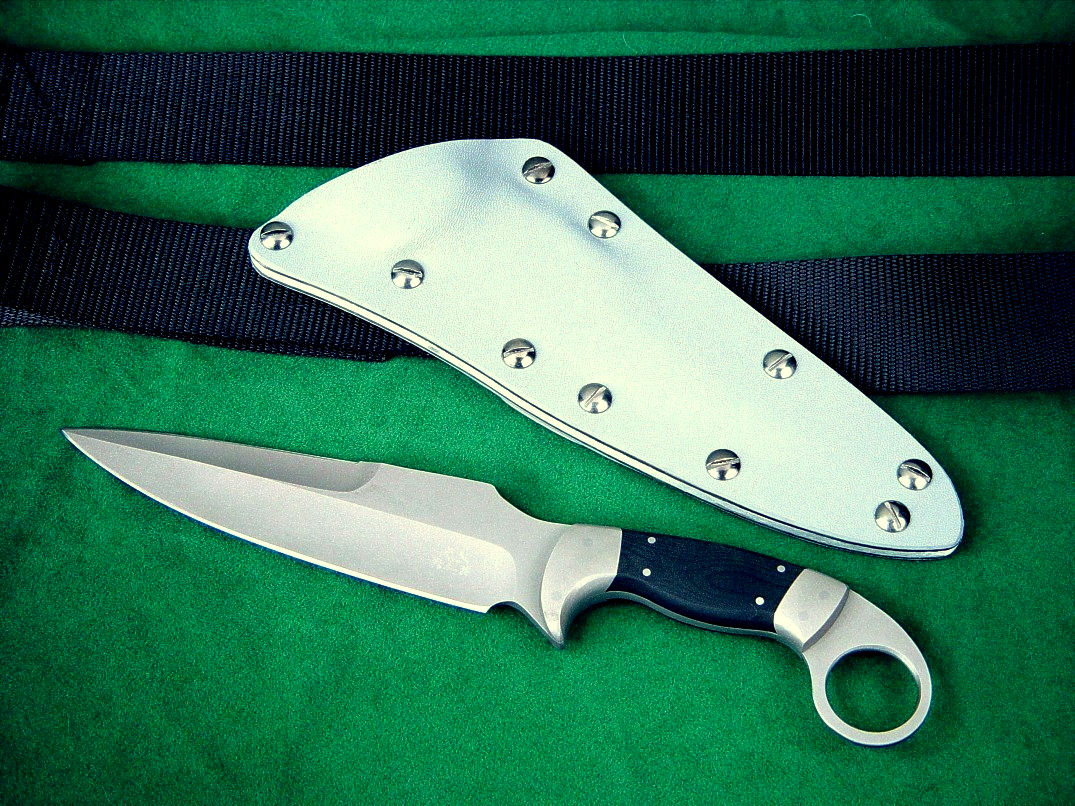

"Bulldog" tactical combat knife in bead blasted D2 high carbon die steel blade, 304 stainless stee bolsters, linen micarta phenolic handle, gray kydex, aluminum, steel sheath
The incredible hardness and wear resistance of high alloy D2 die steel on this Bulldog

D2: A true die steel

D2 is a die steel, thus the designation "D." It's part of the family of Tool Steels, steels used to work and form metals, woods, plastics, and other industrial materials. These steels must withstand shock loads, rapid temperature changes, high wear uses, and are generally the toughest, most wear-resistant steels made. They are far and above the high carbon alloys or the standard steels. I mention standard steels because standard steels are typically used to make most tools, like saws, hammers, files, and common drill bits. Standard steels are also the choice of individuals who hand-forge (open forge) knife blades, as they can be easily worked with low temperatures and in open atmospheres.

No matter what you read, D2 cannot be effectively hand-forged. If D2 is heated in an open forge, and handled in an outside atmosphere, it will rapidly and continually decarburize. This absolutely ruins the steel. The blacksmith and hand-forging crowd may claim that they know how to hand-forge D2, but they are either ignorant or they are lying. Open forges can't produce the heat and environment to allow forging of D2. There is a very delicate structural balance in the chemistry, allotrope conversion, and proper processing of D2, and this can't be done in the casual setting of the blacksmith. Knifemakers may claim that the steel in their damascus or hand-forged billet is D2, and it may well have started that way, but hand-forged D2 is ruined steel. There are no blacksmiths in the modern machine shop for many reasons.

The historic family of tool steels has several subgroups, and D2 was originally created to perform as a high speed steel, but was not temperature-stable enough. It's difficult to find any references on D2 before the 1960s, however high speed tool steels were known by the early 20th century. The details I can find suggest this is the case as in machinist's references, D2 is used in applications requiring sharp cutting edges where no high speed is involved. D2 does excel in heat treatment stability, not important to the knife owner, but critical to the knife maker. In industry, it's used in hot trimming dies, drawing dies, coining tools, forming and bending dies, thread rolling dies, as well as lathe centers, arbors, bushings and gauges.

Dies are an interesting tool. Many dies are used to shape metals by stamping, pressing, and forming under tremendous pressures available in hydraulic presses. There are many configurations for dies, but basically, they reshape the material they are working by shearing, bending, stretching, extruding, piercing, broaching, bulging, and blanking. These materials being formed by dies are mostly metals, and D2 is often used to make the dies that do the actual contact work. You can imagine the tremendous forces, wear potential, and stresses that take place in these dies as they work, and many times the materials and dies are hot while this is happening! So, while D2 is not used in high speed applications (motor-driven rotating tools that continually generate heat at a cutting edge), D2 has no problem working in the hot range. That is, if it's heat treated, quenched, cryogenically aged, and tempered (processed) correctly. This makes it easy to understand why D2 makes a superior knife blade.

There is a colloquial saying about D2 that I've heard all my life, "D2 holds an edge forever, and is impossible to sharpen."

This is a clear indication of D2's reputation, well deserved. When I was young, my father asked me to sharpen his D2 Kabar knife, a knife used in WW2. It took literally hours by hand on the stone, and I was sore from the effort. D2, when properly processed, is incredibly wear-resistant. By the way, no modern Kabar knife (now made in the People's Republic of China) is made with D2; the last one I looked at was made of—horror—420 stainless steel.

D2's wear resistance comes from several alloys working together. An old metallurgist explained to me that in heat treating high chromium and high carbon tool steels, extensive chromium carbides are formed that are highly wear resistant, but more so, the amount of the carbides overall and their distribution density is extremely high, as are dislocations when properly processed in cryogenic temperatures. The good measure of molybdenum creates not only molybdenum carbides but the moly is a strong carbide initiation site. Add a bit of vanadium and D2 has vanadium carbides, and this steel can form an edge that is difficult to dull, even when cutting metals!

For more information, link to my Heat Treating and Cryogenic Treatment of Knife Blades page.

Back to page topics

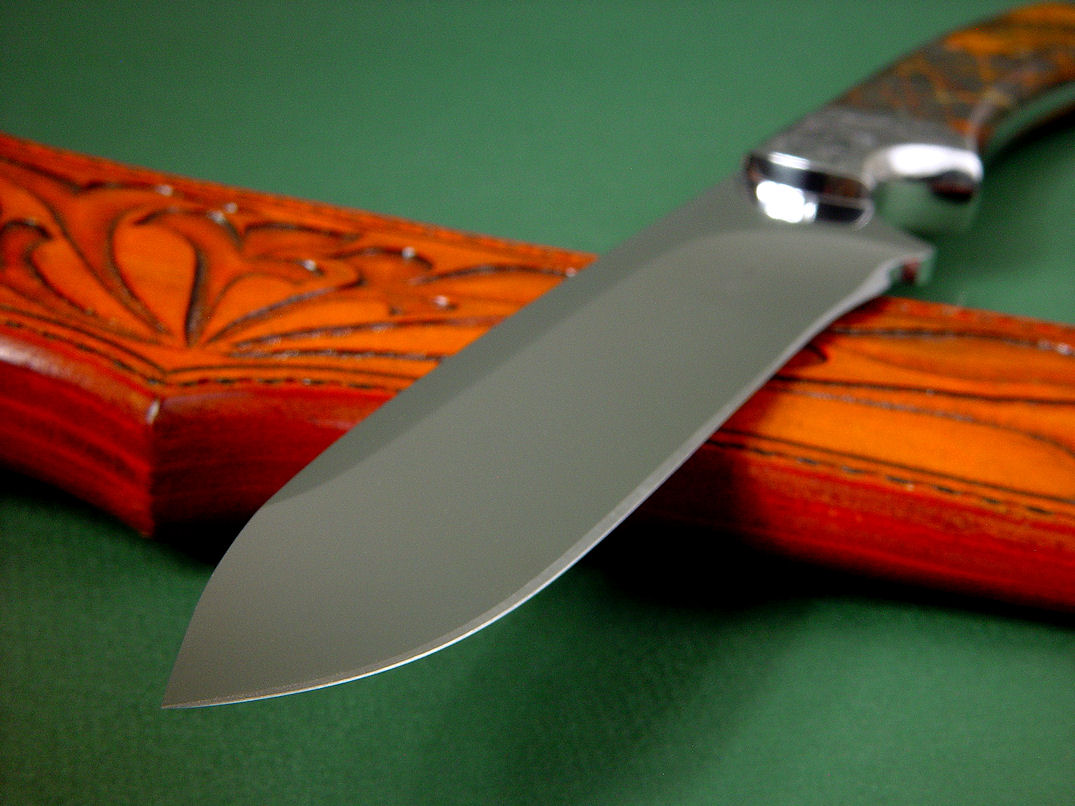

"Magdalena Magnum" obverse side view in D2 extremely high carbon die steel blade, hand-engraved 304 stainless steel bolsters, Pilbara Picasso Jasper gemstone handle, hand-carved, hand-tooled leather sheat
Super sharp and incredibly wear resistant, this D2 blade is on my Magdalena Magnum

D2: Stainless or Not Stainless?

As defined by ASM and ANSI, for a steel to be stainless, it must contain at least 11.5% by weight of chromium. with at least 12% for aqueous corrosion resistance. Since very little D2 is made with 11% or less, and that is not the ANSI standard chromium content for D2, and 12% is the standard, D2 is then a stainless steel.

It's true that it is at the lower end of chromium content, and what this means is that in practical use, leaving orange juice or blood on this steel can cause a graying or discoloration of the surface. This is far and above the nearly instant corrosion that happens in untreated O1, or in any carbon steel that is not stainless. D2 resists corrosion, and simply getting it wet will not lead to rust, as long as it's not left continually wet, particularly in salt water.

This is because D2 has "aqueous" corrosion resistance, meaning it is resistant to corrosion in water. A higher percentage of chromium is needed if a steel needs to be resistant to corrosion in non-aqueous solutions (like orange juice, brine, blood, or other acidic or caustic corrosives). Since there is no "magic number" that instantly makes all steels corrosion-proof, the aqueous exposure is the scientific threshold for determination and identification. D2 is technically a stainless steel, unless some foundry has less than 11.5% of chromium, and that means that it is  not made to the standard of ANSI, which is the authority on standards of such things.

 Things are different in the UNS, where D2 is classified as UNS T30402. D2's UNS classification lists it has having an 11% to 13% content of chromium, which is not as strict as ANSI. However, you'll be hard pressed to find D2 with less that 12% chromium, and you wouldn't want to.

Some countries, organizations, manufacturers, and even foundries consider 10 percent chromium a stainless steel. You can then understand that the word stainless can be a generalization. This is why it's the exact composition should be supplied by ANSI standards-compliant foundries and suppliers

I believe this is why it's so important to know your source, and have available any information that the client requires for the steel, as well as the treatment regime, if asked.

Corrosion Resistance and Heat Treatment

Someone asked if D2 had higher corrosion resistance if heat treated. The answer to this and for all martensitic stainless steels is a definite yes. Martensitic stainless steels do not reach their full potential for high corrosion resistance until they are properly hardened and tempered. For D2 that means cryogenic treatment, but in all stainless steels, hardening and tempering increases the corrosion resistance dramatically due to the final crystalline structure and allotropes formed and their repassivization potential. This is why I distinctly rule out 400-series stainless steels (410, 420) for bolsters, guards, and fittings, since they are never hardened and tempered and are then not corrosion-resistant.

Simply put, the highest corrosion resistance of all martensitic chromium-bearing steels is achieved after proper hardening and tempering.

Back to page topics


High Heat Resistance/Critical Control

Hand-forged D2 is ruined steel.

An added feature and benefit of D2 steel is that it has very high heat resistance, when processed in the higher temperature range. The processing of D2 is interesting, and timing is critical as well as tight control of temperatures, within a few degrees Fahrenheit. This is crucial for the knifemaker to understand well; a slight variation yields a completely different quality of blade. This is why when I read that someone is hand-forging D2, the blade quality and performance is definitely compromised, and the steel is ruined. You simply cannot hand-forge D2 and maintain the temperature, timing, and atmosphere critically necessary to yield maximum performance of this steel. Like the other exotic high alloy hypereutectoid martensitic stainless tool steels, this steel must be processed in narrow ranges and controlled environments. Hand-forged D2 is ruined steel.

D2 has a very precise knee in its TTT diagram, and hitting in front of the knee just right is paramount to performance. So quenching is specific and precise. Even more precision is required in tempering.

If D2 is hardened and tempered correctly (and at the correct time), the heat treating processer (the knifemaker, I hope!) can achieve the supreme balance of hardness and toughness that will yield incredible blade performance in both cutting, wear resistance, toughness, and even, to a degree, corrosion resistance. . This is why it's best to query the knifemaker about his heat treating practice, and true professional knifemakers should be able to answer every question you may have about your blade and how it was processed.

Interestingly, this steel is extremely process time critical. While many steels may be hardened and tempered at a later time convenient to the knifemaker, a delay in processing has disastrous results in D2. Pull a D2 blade out of an oven to air quench from its critical austenitizing temperature, and as soon as it cools to 120°F, it will (and should be) about 64HRC. Leave it to sit at room temperature overnight, and the blade will be 52-54HRC! This is a fascinating property, and just like the curious curve of the knee that proves that heating this steel actually increases the hardness during tempering is one of the reasons that heat treating has fascinated me for so many decades.

One more thing: D2 benefits greatly from triple tempering, with cryogenic holds between! Most knifemakers are unaware of this and  how it affects toughness (see the next topic below). This critical action in processing can result in a blade that has a 25% higher toughness (measured by the Charpy process) and better plasticity. This is another reason to do your own heat treating and educate yourself about the process.

For more information, link to my Heat Treating and Cryogenic Treatment of Knife Blades page.

Back to page topics

Note! (to knifemakers)

I've noticed that this page gets a lot of attention from knifemakers, and discussion goes on and on about this steel, how to heat treat it and what to expect. This can get out of hand, with guys claiming to know special bonding structures of the grain, grain size and shape, and describing various methods to achieve certain invisible, unproven, and ridiculous results. Here's my take on this:

Heat treat each piece of D2 according to the manufacturer's directions. THAT'S IT! You don't have to try to better their process; the foundry knows how they made the steel and they politely and effectively tell you how to heat treat it for the best performance.

Why?

All D2 is not the same! Since minor variations in the alloy content are certain to occur as a result of foundry process, as a knifemaker this is not your concern. Just heat treat the steel according to the manufacturer's directions.

Good grief, it's easier than baking a cake! When you bake a cake, you have to measure and mix the ingredients, and the foundry has already done this for you!

If, as a maker, you think that you have some better process than the steel supplier, please do tell them your discovery, maybe you can become a metallurgist or engineer. Also be sure to tell every machine shop and industrial manufacturer of machine tools, dies, valves, shears, forms, presses, and every other industry that uses D2-

Wait. Do you suppose that these professional industries already know how to achieve the best performance in their steels? Then, who do they get their heat treating information from? Could it be the supplier of the steel? Ahem.

Just follow the steel supplier's directions.

I don't know how this could be simpler. And then spend some time on Fit, Finish, Balance, Design, Accessories, and Service, as these are the real limitations for most knifemakers today.


"Minuteman EL" obverse side view in satin finished D2 high carbon chromium die steel blade, nickel silver bolsters, canvas Micarta phenolic handle, locking kydex, aluminum, stainless steel sheath
Military combat grade super wear-resistant D2 blade of this Minuteman EL

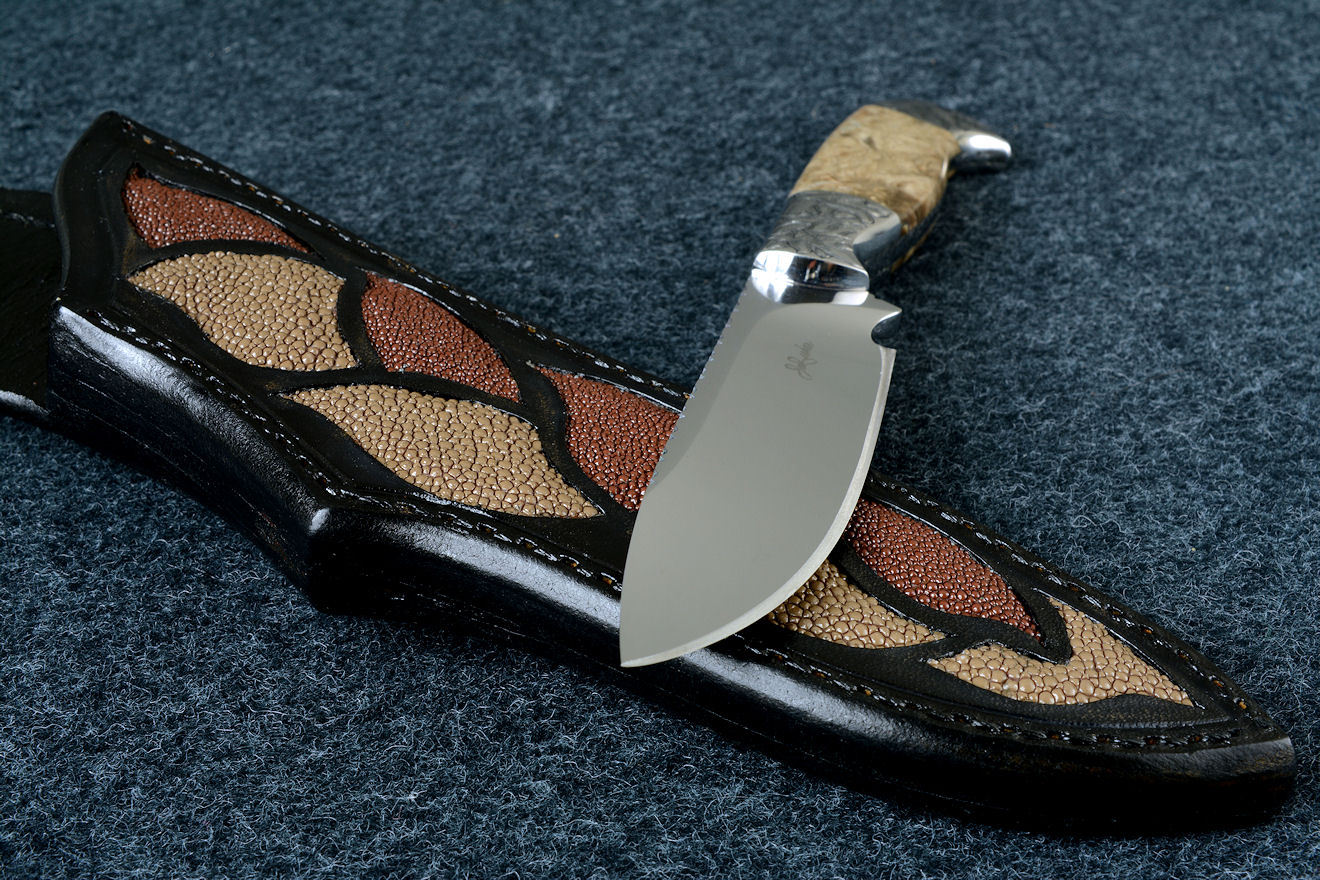

"Vulpecula" obverse side view in D2 extremely high carbon die steel blade, hand-engraved 304 stainless steel bolsters, Petrified Fern fossil gemstone handle, hand-carved leather sheath inlaid with rayskin
Extremely high wear resistance and great toughness when correctly processed, this D2 blade on Vulpecula

What about toughness?

Some people think that because D2 can be hardened and tempered to have very high hardness and high wear resistance that it won't be tough. Toughness is the resistance to breakage or fracture, or more microscopically, the ability for the steel to withstand its molecular bonds from being torn apart, leading to fracture. Another way to perceive this is to think of toughness being the antithesis of brittleness. The more tough, the less brittle, the less tough, the more brittle. If you think that properly hardened and tempered D2 is not tough, then why in the world would it be used for some of the most demanding industrial applications there are, such as dies to cut, form, shape, bend and pierce other materials, even metal? Of course D2 is tough, that is, if it is properly hardened and tempered.

The reason I emphasized that last phrase is because, like so many other steels, incorrect processing, missed steps, faulty timing, out-of-sequence actions, uncalibrated equipment, slow ovens, and bad atmospheres can cause outright failures in the processing of this steel, and this is a steel that is unforgiving of error or inattention. Please re-read the section just above. A lot can happen in the heat treatment of this steel, but only a narrow range of exposures, temperatures, and timing will give reliable, predictable success.

If you think that D2 isn't tough enough, and you think that there is some zero-sum game where in order to be wear resistant, steels must lose toughness, then why are planer blades made from D2, blades that may spin at over 15,000 rpm and 7800 Surface Feet per minute, hogging through rough, silica-containing abrasive hardwoods? Do you honestly think that your use on a hand knife can compare to this?

As stated in the previous section above, toughness can be increased by 25% by triple tempering with a cryogenic hold between steps. This has been proven by testing methods and electron microscopy (Arain, 1999, Heat Treatment and Toughness Behavior of Tool Steels (D2 and H13) for Cutting Blades). Unfortunately, this is not how most D2 is handled by knife makers and heat treating contractors, and is perhaps why some knifemakers consider it not very tough. If a die is being made in a professional die shop where it is expected to perform under tremendous pressures and abrasive conditions, with thin, tough sections, you can be assured that D2 is their choice for a reason, and you can be certain that they know how to heat treat it and process it correctly for optimum performance.

It's all about the process...

As always and with any tool steel, please consider that if there were a viable replacement for D2, D2 would be erased from production, and never used in any application. D2 fills a distinct position in the steel world, and it's been there a very long time and will continue to be!

Back to page topics

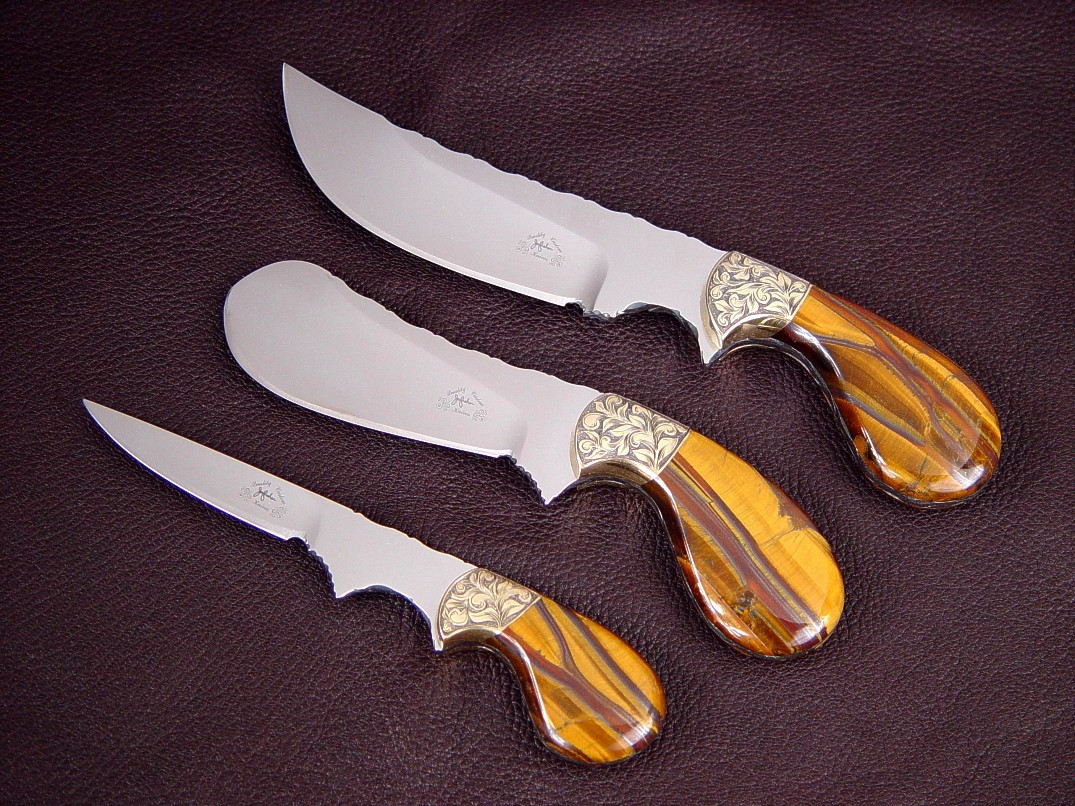

"Trophy Game Set" obverse side view in D2 extremely high carbon die steel blades, hand-engraved brass bolsters, Tiger Eye Gemstone handles: field dressing, skinning, caping knives
"Trophy Game Set" three knives, all with D2 blades

Finish Curiosities, Grain Structure, and Corrosion Resistance

Because D2 has such a high level of carbon with chromium, it forms a very distinctive grain pattern when the steel is polished. D2 can be polished, unlike the high vanadium S30V and S90V tool steels, which have too much vanadium to create an attractive finish. The finish on polished D2 is not smooth or glassy, but has a distinctive granularity commonly described as orange peel. Orange peel is a great description, because that is almost exactly the texture appearing in the finish.

Of all the steels that are used for polished knife blades, D2's characteristic orange peel has achieved a level of acceptance and even preference, as knife owners can instantly identify the steel, and that has its own appeal. Knife owners may even look for this granularity as an indicator of value.

It's important to note that not all D2 has this grain structure; high sulfur D2 does not exhibit this. But because of the higher sulfur content, the performance of high-sulfur D2 is somewhat less than low sulfur D2. The purpose of adding sulfur to steel is to improve machinability, and the sulfur content does not improve the performance of the knife blade. In fact, most steel makers are strictly required to limit the sulfur as it is considered detrimental. My advice is to stay away from any sulfurized steel for knife blades.

While D2 may not always be finished to a high polish (most tactical combat knives made in the studio have media blasted or satin finishes), it will benefit from polishing in increased corrosion resistance. Typically, the smoother the surface, the harder it is for surface corrosion (rust and pitting) to gain a foothold.

For D2, it's important to understand the limitations. D2 is corrosion resistant, but not as corrosion resistant as many other stainless steels. If the blade is left with a coating of citrus juice, blood, or salt water, it will darken and start to show initial corrosion effects fairly quickly, sometimes within minutes.  Simply exposing it to plain water periodically will not show rust, especially if dried immediately after. Like most blades, storing in a dry area, out of the sheath, and a light coating of wax will preserve the blade finish for many decades. This steel is for someone who will take care of their blade and understand its limitations.

In the photo below, look in the medium dark areas of the blade as I tried to photographically capture the characteristic orange peel granularity of this polished D2 knife blade.

Back to page topics

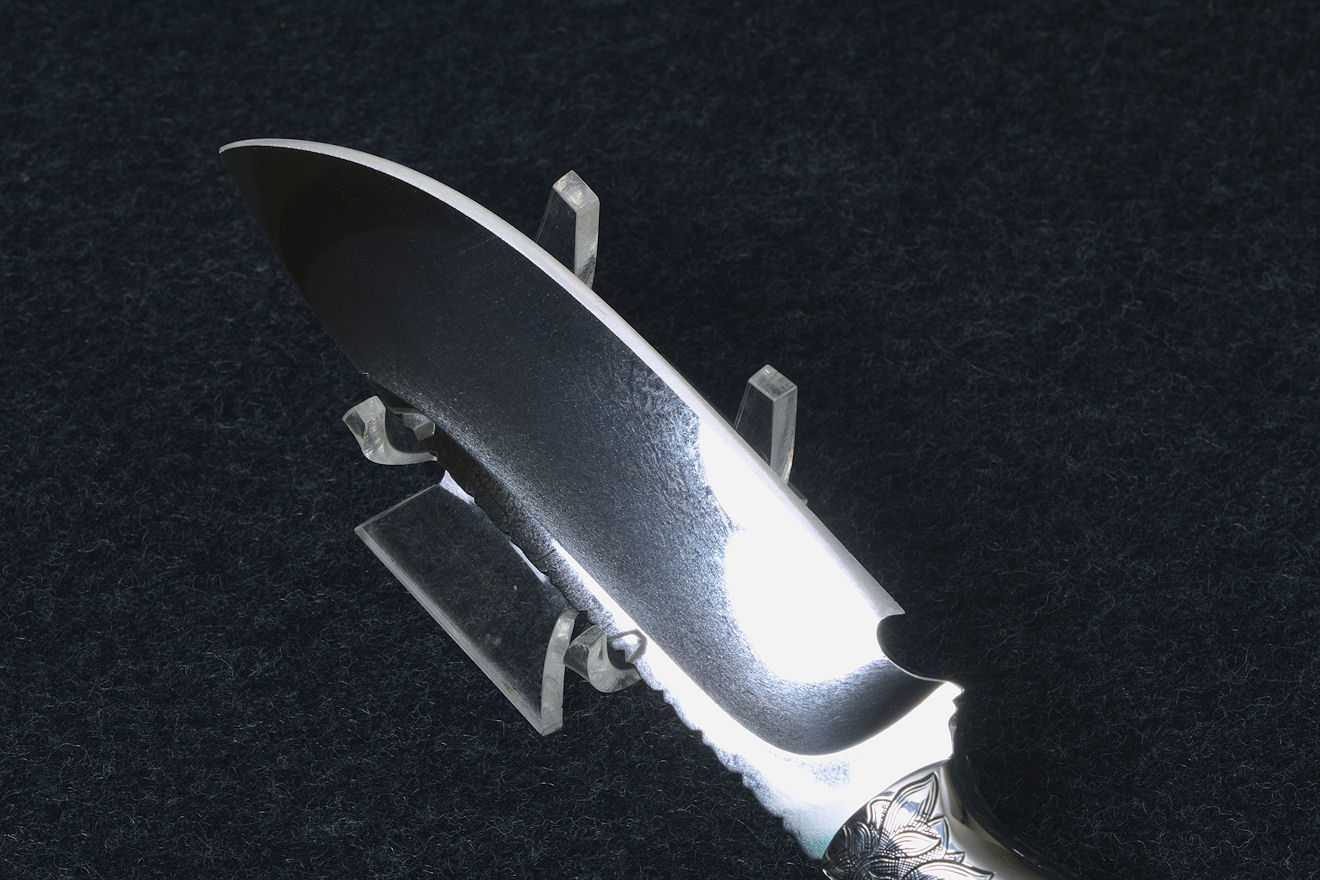

Characteristic "orange peel" granularity in the dark areas of this photo of polished D2 blade

Sharpening D2
When someone tries to sell you a knife blade that "holds an incredible edge, but is easy to sharpen," run the other way with your money. This is not possible.

Sharpening D2 is difficult, particularly if you're expecting to use traditional methods. If you're wanting a blade to hold an edge an incredibly long time, then you can expect that it will take a very serious method and time to sharpen it. A knife blade's cutting edge that is wear-resistant during cutting will also resist the abrasive of the sharpener; it's simple physics. The old claim of having a very long lasting edge and yet being easy to sharpen is a horrible myth, still used today by unscrupulous knife makers, manufacturers, boutique shops, semi and pre-production shops, and knife dealers. It's time this myth is laid to rest.

If you're going to sit down with a stone (Arkansas, silicon carbide, aluminum oxide, India, oilstone, or water stone) then you better have a pot of coffee, perhaps a sandwich for a the three hour break, and plenty of beefy forearms and grip strength. It will take a long while to scrub up a bur for the primary edge, and plenty more to refine the secondary cutting edge of properly hardened and tempered D2. Wear resistant means wear resistant to all things, including the stone. Even ceramic stones will meet with plenty of resistance in sharpening properly hardened and tempered D2. If you have a D2 blade and it is easy to sharpen, it's either not D2, or it's been incorrectly processed!

My answer? Diamond. Diamond. Diamond, followed by Diamond. No steel is harder, no steel can withstand the cutting action of the hardest material on earth. On my tactical combat knives with an Ultimate Belt Loop Extender, a small diamond pad will handle the touch ups, but for a full sharpening regime, you'll need some serious diamond abrasive stones.

I never recommend any motorized sharpening operations; they are just not controllable to a fine degree, and even water-cooled models can overheat the incredibly thin cutting edge, changing the microstructure.

As long as you understand that this steel will not easily or quickly be honed up, you'll be far ahead of the game. Incidentally, this steel is also known as "that damned D2," because of the sharpening effort. Diamond erases all that. It's one of those developments that wasn't available when I started making knives, and it is profoundly appreciated!

Back to page topics

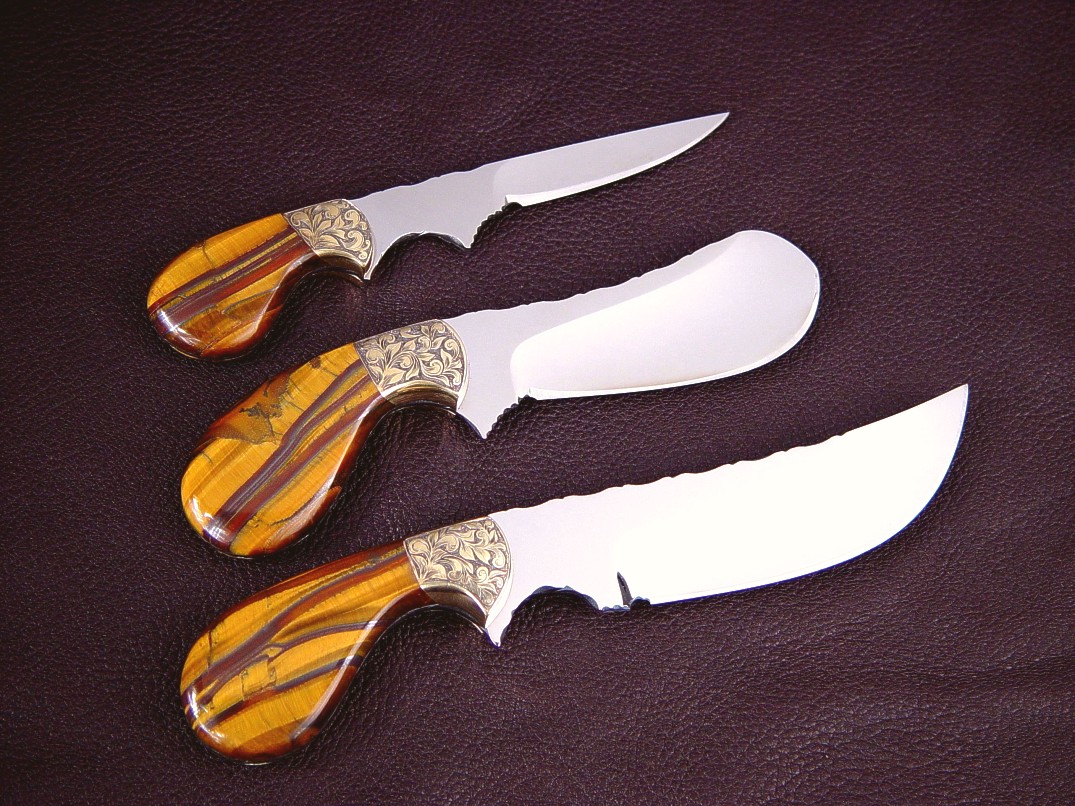

"Trophy Game Set" reverse side view in D2 extremely high carbon die steel blades, hand-engraved brass bolsters, Tiger Eye Gemstone handles: field dressing, skinning, caping knives
Hand-engraved brass bolsters, D2 high carbon die steel blades on the Trophy Set

What about the newer alloys?

D2 has been around longer than 440C, ATS-34, and most of the other high alloy steels. It's not a new, exciting, or proprietary steel, it's not a gimmick, not a flash in the pan. It's been around a very long while strictly because it is a very good steel; it has staying power. D2 is not a new steel, and thus, is not as pop-exciting as some of the newer alloys, though it has a very stout following and recommendations.

Are there other good alloys? Of course there are, and some of them have marked advantages over D2. You may be surprised to hear that at the time of this writing, I use over a dozen different steels, and every one of them has certain advantages and certain (and sometimes defeating) limitations. Take the CPM steels, made by the crucible particle technology process. They are great steels, they are very expensive, and each one has its own attributes. CPM154CM is a beautiful steel, but when compared to D2, is not as wear resistant. CPMS35VN is tougher, but it can't be mirror polished, has a lower tempering temperature, is expensive, and limited in available sizes. You won't see this on their data sheets.

By the way, don't always trust manufacturer's data sheets, Crucible Steel reps have told me face to face that there are "misprints" on these sheets. One such misprint is claiming that CPMS35VN can be mirror polished, when it can not be mirror polished due to the high vanadium carbides that are present after heat treating. Whoops! Okay, it's just a misprint. So if you can't entirely trust a manufacturer's data sheet, what can you trust? Who you should be able to trust is someone who has had decades of using many steel types for many knives; they are the guys with the know-how. More on that below.

Another example of painting newer steels as superior can be found in what is not said. Many of these newer alloys have totally ignored finishing as a benefit. Finishing is the ability for a knife blade to be polished to a high, even mirror luster. This is critical in art pieces and investment grade knives, and also critical to keep the highest corrosion resistance possible. A rough blade corrodes easier, simply because of increased surface area. More on that topic here.

There simply is no ultimate steel for knife blades, no superior, magnificent, ultimate blade material. Each choice of steel for a knife blade is a decision of balance of many properties.

Knife buyers are just like everybody else; they can be swayed towards a particular knife buying decision based on advertising. Who wouldn't want the newest truck, the newest tool, the newest snack, or the newest knife? How do you make a knife, a tool that has existed for longer than any other tool in the history of man sound and seem new? Sure, people need knives, they use knives, and they collect knives. What could be more appealing than the newest, most exotic, most astounding performing steel made today? Why, even I would want to buy that! One problem though: it doesn't exist. See the next topic.

Back to page topics

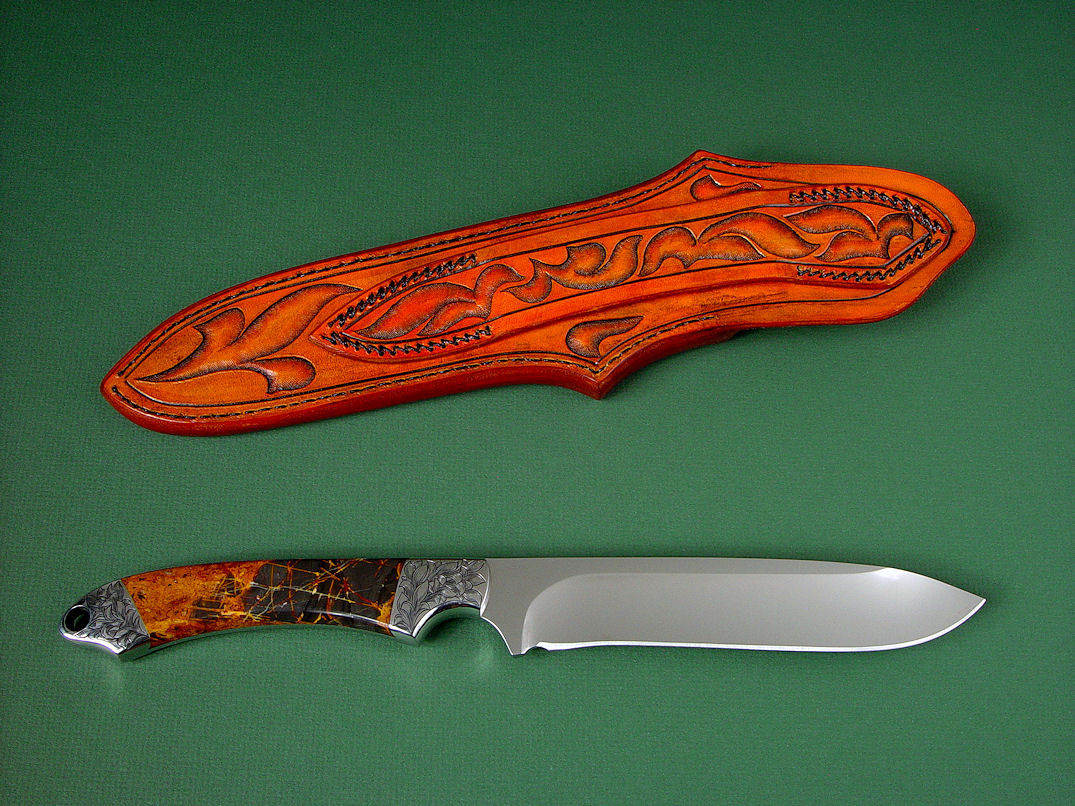

"Magdalena Magnum" reverse side view in D2 extremely high carbon die steel blade, hand-engraved 304 stainless steel bolsters, Pilbara Picasso Jasper gemstone handle, hand-carved, hand-tooled leather sheat
Elegance and tremendous wear resistance in this D2 Magdalena Magnum

Why do they claim their steel is superior and how can I find the truth?

There simply is no ultimate steel for knife blades: no superior, magnificent, ultimate blade material. Please understand this: If there were a steel superior to all other exotic metals, all others would be cast aside, no longer made at any foundry, and they would be sentenced to the ashbin of obsolescence. Every steel has its pros and cons, its advantages and disadvantages. So advertisers need to make something sound new and better (even if it is cheaper and worse), so they claim a new steel, a better steel, a rarer steel, a superior steel is used in their product. Isn't it funny that they never claim new or superior handles, bolsters, or sheaths, only the blade steel! That's because they know that you, as a consumer, have limitations that prevent you from knowing the truth. How does this happen?

  • They know that you will not have the steel tested by a certified metallurgist to determine exactly what the steel is.
  • They know that you will not use the knife in such a way as to notice any difference in any performance from earlier steels.
  • They know that there is no real testing of knife blade steel performance, only subjective comparisons based on vague properties that are not scientifically defined.
  • They know that if you are unsatisfied, they amount you pay is either not enough for you to care about, is not too much for them to refund, or that you will be satisfied with a replacement of the same item.
  • They know that you are influenced, hoodwinked, and taken in by advertising hype consisting of unsubstantiated claims.
  • They know that there is no official, law enforcing, or sanctioned authority that will police their lies, claims, and inflated hype to make them tell the truth in their advertising.
  • They think you are too stupid, ignorant, or careless to bother to research the topics presented by proven masters and highly experienced professionals in this field, and will simply go with the herd.
  • They know you, who are reading this website, are not their customers.

Okay, so is most of what you read about knife blade performance hype? It really depends on who is presenting it, and this is very important. If you are a knife client, buyer, or user, there is a simple way to know whether your knifemaker, knife factory, and knife supplier is selling the hype or knows what he is talking about. Look at his knives!

  • Look at the website; if there isn't a substantial web presence, they are not modern or advanced makers tuned to make and respond to modern knife use, design, or appeal. Their website demonstrates their participation, or lack thereof, in the professional knifemaking field. Look for information, lots of it. There simply is no reason a knifemaker or (worse) a knife manufacturer will not take the time to offer every available piece of information about the product they sell. If I, as an individual knifemaker can do it, certainly a large corporation with dozens or hundreds of employees can too! If it's a single knifemaker you intend to buy from, know that how he "wears" his website demonstrates how he treats his clients, because this is the service aspect of our field. More on service at this bookmark.
  • Look at his testimonials. Are they realistic, are they plentiful? Do they seem like they are all made by one writer, or do the individual testimonials have their own voice?
  • Look who he makes for. This should be clearly presented, with plenty of references, testimonials, and types of knife in his particular field.
  • Look at his history. A new maker is not an experienced maker. There is no shortcut, no fast track to knifemaking skill. There is no cultural claim to fine knives (like is so often seen in Japanese style sites and products). The history of the maker should be well established and clearly defined without hype.
  • Overall and most importantly: LOOK AT THE KNIVES! Do they look finely made, are the grinds crisp and uniform, are the finishes complete and precise? Do they have an excellent and precise fit? Do they even offer large, clear, and plentiful photos that you can see the fit at all, or are they just small, dinky "profile" photos? Have they painted the blade? Are there three ridiculous rivets securing the handle to the tang? Is the tang tapered for balance? Are the blades ground to their purpose, are there a large variety of styles, patterns, and designs to choose from, or are they just 4" drop points? Are the handle materials wide-ranging and exotic, as well as domestic? Are there fittings on the knife (bolsters)? Are there good sheaths? Good stands, good cases? Or is the maker or manufacturer just making a simple, plain, boring knife, and then hyping the steel type in hopes you'll buy?
  • Probably most important: does the maker make real combat knives? Why do I mention this? This is included because real combat knives are frequently the most durable, most well-made, most challenging, and most important endorsements of the maker's experience. I don't mean knives that are stylistically tactical, I mean real combat knives made for and used by professionals in the field of war, counterterrorism, or law enforcement. While many makers and manufacturers claim to be making these knives, their reputation, their illustration and their participation in this field is less tangible and more inferred. How do you know the difference between a maker or manufacturer who actually makes real combat knives and the company that just makes the claim? Hold on to your hat: it's the sheath. If a maker or company is making an actual combat knife, the sheath is just as important as the knife, and made just as durable, with specific and various options, with real mounting and interfacing hardware to work with the professional's gear. How do I know this? Because this is how every knife makes it into battle: in a sheath. So don't forget to look over what is (or what is not) offered in this critical part of the knife package; it will tell you a lot!

Most knifemakers and manufacturers who overly hype their steel type produce an inferior product.

Back to page topics

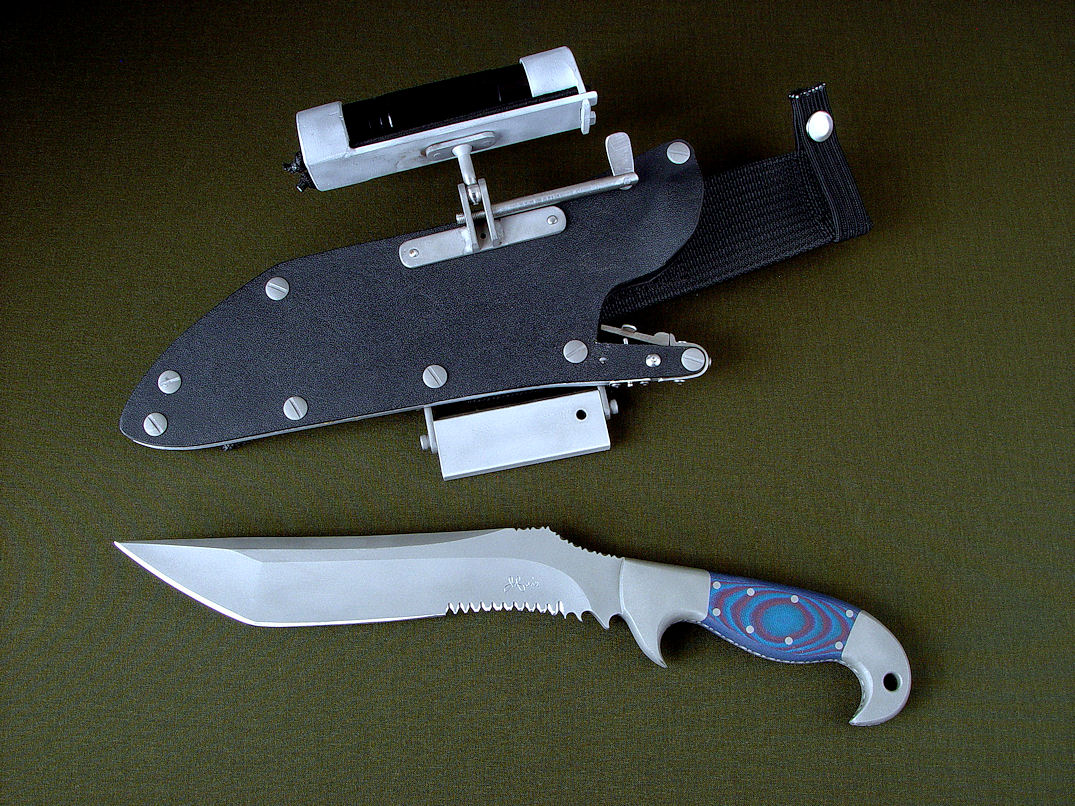

"Arcturus" obverse side view in ATS-34 high molybdenum stainless steel blade, 304 stainless steel bolsters, red/blue G10 fiberglass/epoxy composite handle, locking kydex, aluminum, stainless steel sheath with ultimate extender and HULA accessories
The incredibly tough and durable blade and military combat sheath and accessories of this "Arcturus"

Why don't you see more D2 blades?

D2 is an older, proven tool steel, relied upon in industrial settings for making some of the  most durable cutting and metal forming tools possible. It's hard, wear resistant, and fairly tough (when properly processed) and makes an extremely long-lived and edge-holding knife blade. So why don't you see D2 used more often, and what are some of its limitations?

  • It's not a new steel, therefore does not gain pop attention.
  • It's difficult to treat, requiring processing in a clean and specific controlled environment and very accurate temperature, timing, and oven controls. A very accurate oven/pyrometer/control system is vital, frequently tested and calibrated for certainty.
  • While D2 can be processed with conventional methods and result in a good knife blade, this is not where D2 excels. In cryogenic processing, the wear resistance can be improved many times with this extremely cold process. More about cryogenics on this page.
  • D2 is not forgiving. Once it's been hardened and tempered, there is no correction, no "fixing" any mistakes.
  • A proper hardness testing apparatus, calibrated and tested, is required to make certain the treatments are on track and successful.
  • D2 is not a steel that can be hand-forged, no matter what a knifemaker tells you! It requires a high purity environment, very high forging temperatures, strict temperature control with verified pyrometers, and can suffer greatly from decarburization if not treated properly.
  • D2 is not a highly corrosion resistant stainless steel, requiring more care than higher chromium content steels.
  • D2 does not blue well, due to high chromium content, so the corrosion resistance can't be improved by passive oxidation.
  • D2 is diffiuclt to sharpen. While it stays sharp much longer than most other knife blade steels, it's difficult to put an edge on.
  • D2 is extremely wear resistant, even before heat treatment! This means high expense of abrasives, high expenses of machining tools, cutters, and lots of time. D2 is expensive for the knifemaker to make a knife blade with.
  • D2 is very difficult to polish and finish, requiring many steps of abrasives to bring to a bright finish. Since this takes more time and more abrasives, it costs more.
  • D2 cannot be mirror polished without the grain effect. To some, this is undesirable, but it varies with the knife owner.
  • D2 bar stock and billets are expensive! Very. D2 is more expensive than 440C, ATS-34, and many other high alloy and stainless tool steels.
  • D2 stock is available, in only a narrow range of sizes, and is often not available in many sizes required by knifemakers. When it is, it is very pricy. Frankly, D2 is one of the more expensive tool steels made overall.

From this list, you can see that the number one issue with D2 is the expense of the steel, in acquiring and machining and finishing, and the particular nature and high care required. It's an expensive steel, and will always have its place at the top of the wear resistance kings of knife blades.

Back to page topics

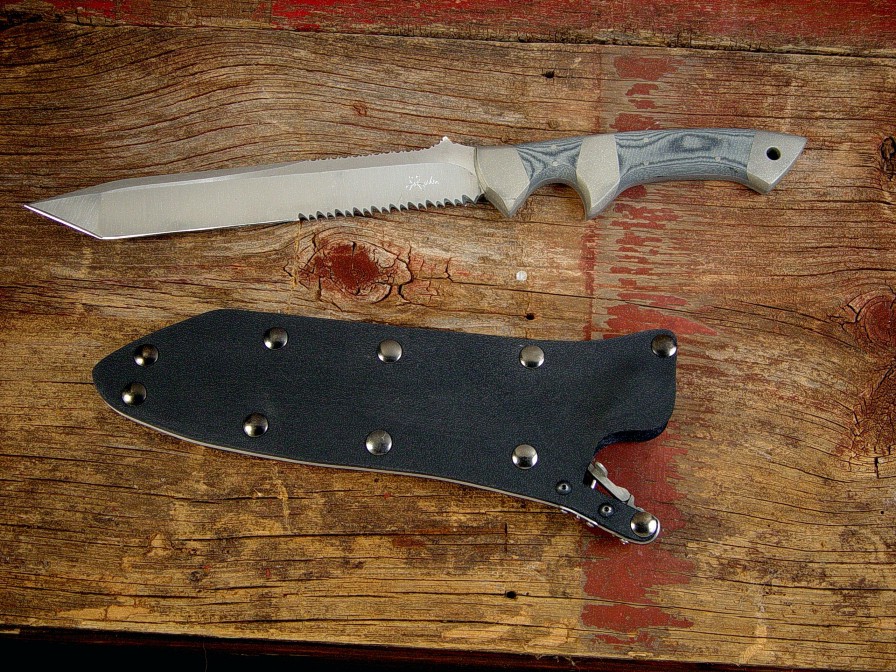

The highly wear resistant D2 blade of this Minuteman EL with locking combat sheath

D2 is a supreme wear resistance king

D2 has been around a long while, and it is here to stay. With its extreme wear resistance and good toughness, with proper processing and attention to detail, this steel makes a knife blade that has an incredible cutting edge that just won't stop.

When you want a knife edge to last and last, and you're not exposing the blade to corrosive or salty environments, and you trust the maker to understand the particularities of this steel type, D2 can offer a supreme cutting edge, and a fantastic knife that will last for many generations.

For more information, link to my Heat Treating and Cryogenic Treatment of Knife Blades page.

Back to page topics

"Berger" custom handmade knife in bead blasted D2 high carbon die steel blade, nickel silver guard, Staghorn handle, Faux lizard inlaid in hand carved leather sheath
The traditional stag horn treatment of a long-standing D2 steel type on this "Berger"

To the Blades page


XHTML 1.0 Validated, Compliant, Link Checked, and CSS Level 2.1 Validated through W3C, the World Wide Web Consortium
Main Purchase Tactical Specific Types Technical More
Home Page Where's My Knife, Jay? Current Tactical Knives for Sale The Awe of the Blade Knife Patterns My Photography
Website Overview Current Knives for Sale Tactical, Combat Knife Portal Museum Pieces Knife Pattern Alphabetic List Photographic Services
My Mission My Knife Prices All Tactical, Combat Knives Investment, Collector's Knives Copyright and Knives Photographic Images
The Finest Knives and You How To Order Counterterrorism Knives Daggers Knife Anatomy
Featured Knives: Page One Purchase Finished Knives  Professional, Military Commemoratives Swords Custom Knives
Featured Knives: Page Two Order Custom Knives USAF Pararescue Knives Folding Knives Modern Knifemaking Technology My Writing
Featured Knives: Page Three Knife Sales Policy USAF Pararescue "PJ- Light" Chef's Knives Factory vs. Handmade Knives First Novel
Featured Knives: Older/Early Bank Transfers  27th Air Force Special Operations  Food Safety, Kitchen, Chef's Knives Six Distinctions of Fine Knives Second Novel
Email Jay Fisher Custom Knife Design Fee Khukris: Combat, Survival, Art Hunting Knives Knife Styles Knife Book
Contact, Locate Jay Fisher Delivery Times Serrations Working Knives Jay's Internet Stats
FAQs My Shipping Method Grip Styles, Hand Sizing Khukris The 3000th Term Videos
Current, Recent Works, Events Business of Knifemaking Concealed Carry and Knives Skeletonized Knives Best Knife Information and Learning About Knives
Client's News and Info   Military Knife Care Serrations Cities of the Knife Links
Who Is Jay Fisher?   The Best Combat Locking Sheath Knife Sheaths Knife Maker's Marks
Testimonials, Letters and Emails     Knife Stands and Cases How to Care for Custom Knives Site Table of Contents
Top 22 Reasons to Buy   Tactical Knife Sheath Accessories Handles, Bolsters, Guards Knife Making Instruction
My Knifemaking History   Loops, Plates, Straps Knife Handles: Gemstone Larger Monitors and Knife Photos
What I Do And Don't Do    Belt Loop Extenders-UBLX, EXBLX Gemstone Alphabetic List New Materials
CD ROM Archive   Independent Lamp Accessory-LIMA Knife Handles: Woods Knife Shop/Studio, Page 1
Publications, Publicity   Universal Main Lamp Holder-HULA Knife Handles: Horn, Bone, Ivory Knife Shop/Studio, Page 2
My Curriculum Vitae   Sternum Harness Knife Handles: Manmade Materials
Funny Letters and Emails, Pg. 1 Blades and Steels Sharpeners, Lanyards Knife Embellishment
Funny Letters and Emails, Pg. 2 Blades Bags, Cases, Duffles, Gear
Funny Letters and Emails, Pg. 3 Knife Blade Testing Modular Sheath Systems
Funny Letters and Emails, Pg. 4 440C: A Love/Hate Affair PSD Principle Security Detail Sheaths
Funny Letters and Emails, Pg. 5 ATS-34: Chrome/Moly Tough
Funny Letters and Emails, Pg. 6 D2: Wear Resistance King
The Curious Case of the "Sandia" O1: Oil Hardened Blued Beauty
The Sword, the Veil, the Legend Elasticity, Stiffness, Stress,
and Strain in Knife Blades

Professional Knife Consultant Heat Treating and
Cryogenic Processing of
Knife Blade Steels
