Grim Reaper
"Grim Reaper" Custom Push Dagger
- Size: Length overall: 7.5" (19.1 cm), Blade
Length:5.5" (14.0 cm), Thickness: .295" (7.5 mm)
- Weight: Knife: 12.0 oz. (340 grams) Sheath,
Kydex: 8.2 oz. (232 grams), Leather: 4.8 oz. (136 grams)
- Blade: O1 High Carbon Tungsten-Vanadium Tool
Steel, Hardened and Tempered to Rockwell C59
- Bolsters, Fittings: Hand-engraved Nickel Silver
- Handle: Black Australian Nephrite Jade Gemstone
- Sheath: Kydex, Aluminum, Nickel Plated Steel,
Leather Retainer
- Sheath: Stingray Skin Inlaid in
Hand-carved Leather Shoulder
- Knife: The Grim Reaper is a great push/punch
dagger, with a design that is combat proven in OIF and OEF. This
custom individual dagger has a long double-edged blade, double hollow
ground with a tight radius 3" contact wheel for a strong thick
spine, yet very thin and razor keen single bevel edges. The blade
was mirror finished, and then hot blued for a deep black penetration
that inhibits corrosion and gives a black, glassy look. The blade is
O1 high carbon tungsten-vanadium tool steel alloy, hardened and
tempered to HRC59 for high wear resistance, and good overall
strength. The blade was ground from very thick stock, for a center
neck at the ricasso with high strength. All tang surfaces are
radiused and polished for a comfortable grip, and the full width
tang is milled to balance the weight of the dagger exactly at the
neck. I fully fileworked the tang with a deep bold pattern, and it's
cold-blued for a finish that is easy to maintain, with some

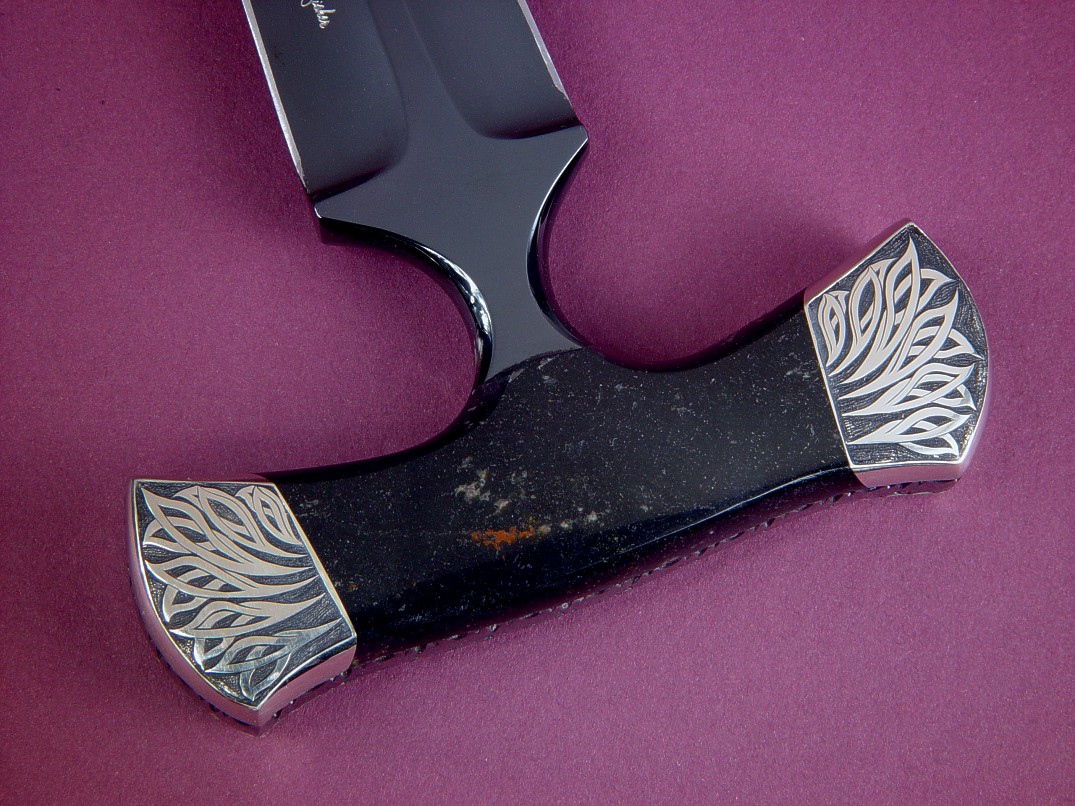

corrosion protection. The handle is bolstered with nickel silver
pinned bolsters that I hand-engraved with a winged pattern for a
great look. The bolsters are dovetailed and bed a pair of very tough
and durable Australian Black Nephrite Jade gemstone handle scales,
brightly polished. These will outlast the knife and sheaths and me,
too! The Jade has spangles of metallic pyrite, with bits of red
jasper and a nicely contoured form.

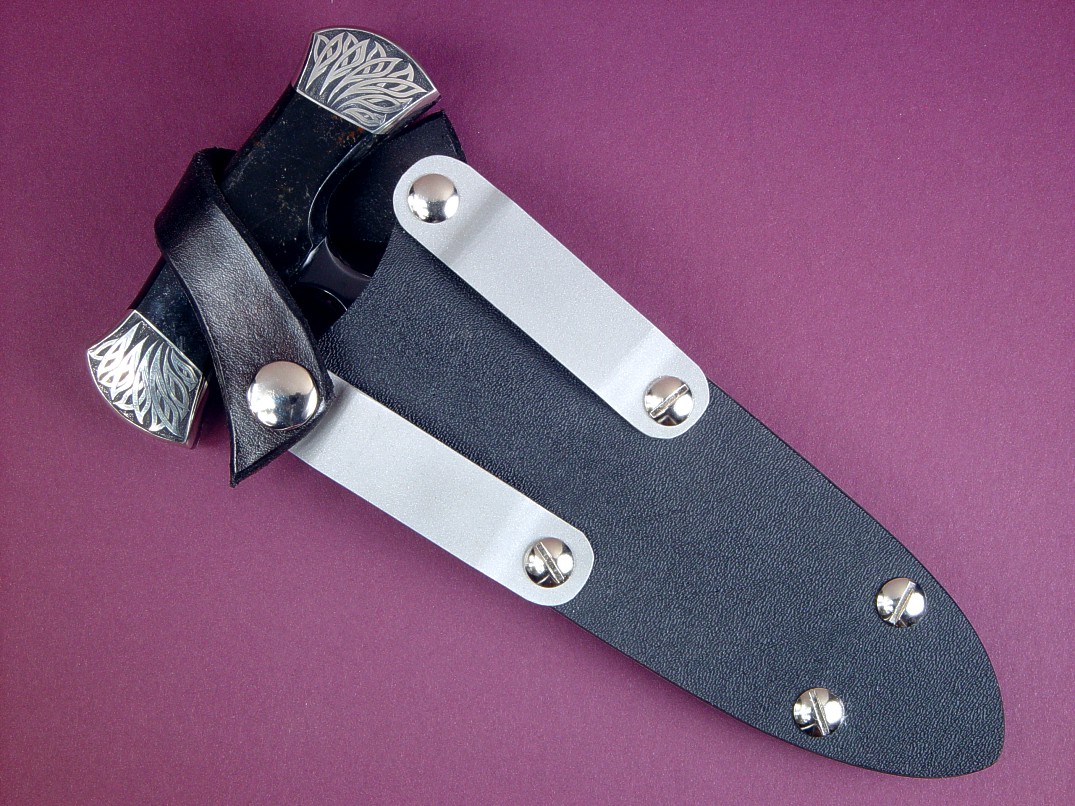

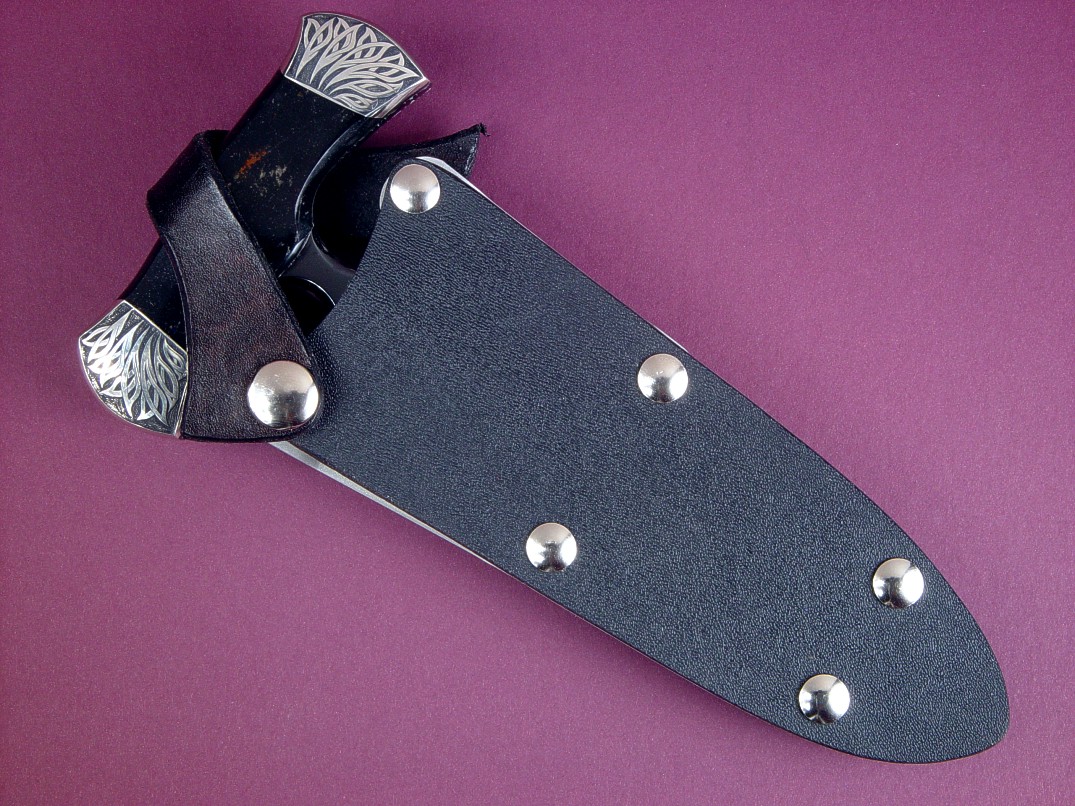

- Sheath, Kydex: The first sheath is one of my
kydex tension fit models, in double thickness thermoformed
methylacrylate/polyvinylchloride over a 5052H32 corrosion resistant
high strength aluminum welt frame, secured with nickel plated steel
Chicago screws. This sheath has die-formed aluminum belt loops that
are reversible and can also be moved to high-low locations on the
sheath. The knife is retained with a thick 9-10 oz. leather strap
that is secured with nickel plated steel snaps, secured to the
sheath with stainless steel machine screws.

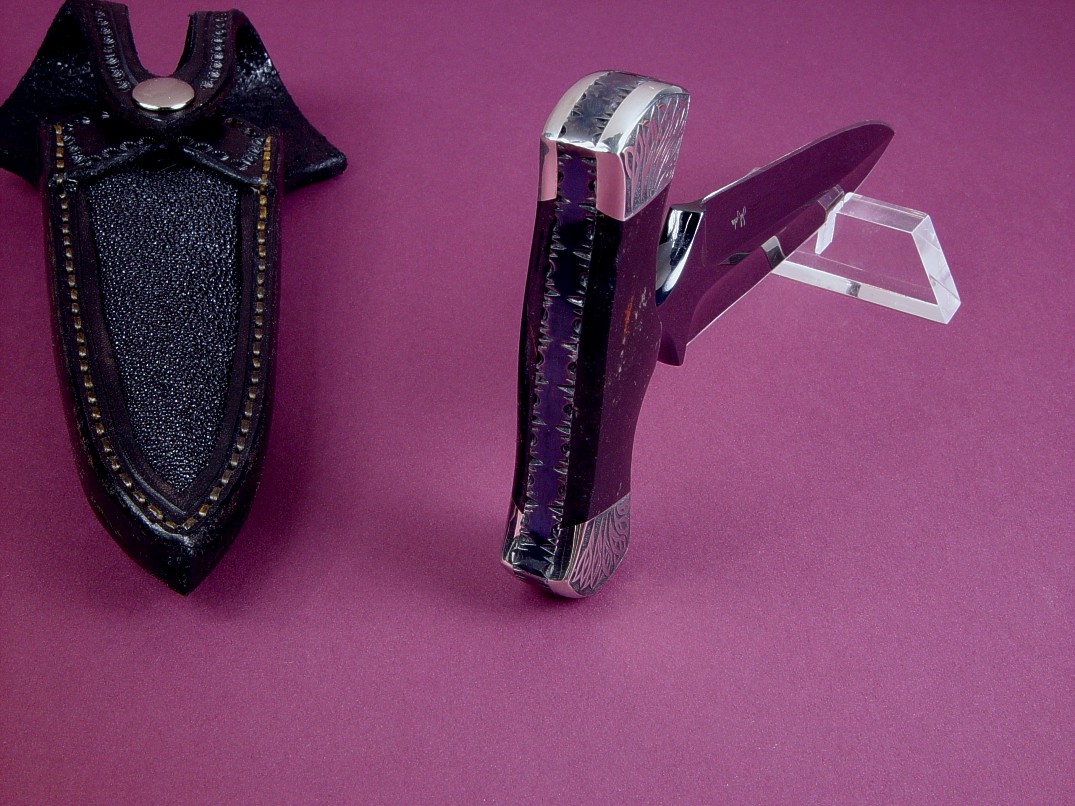

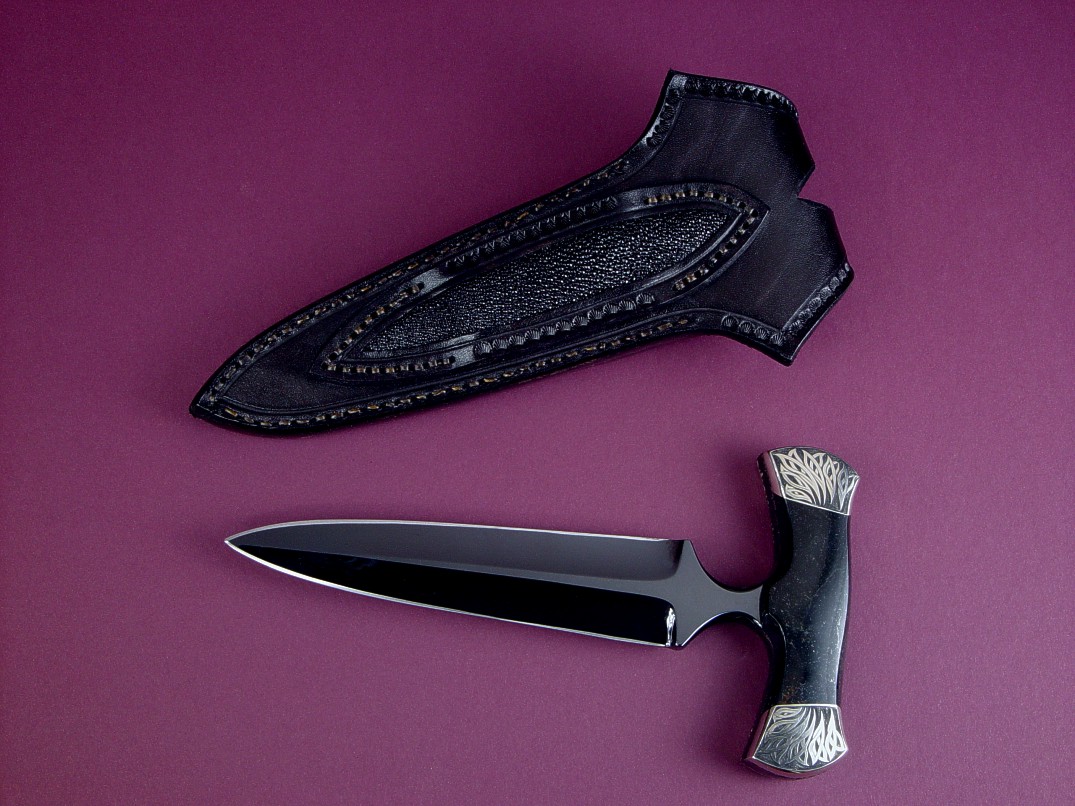

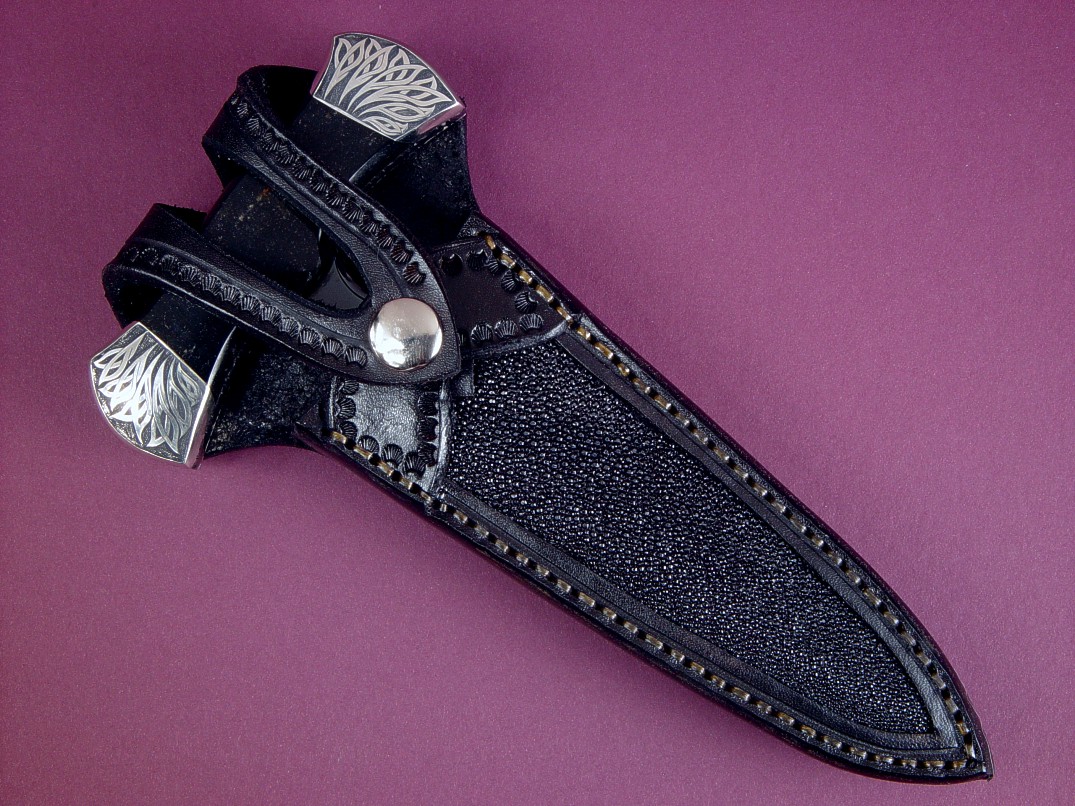

- Sheath, Leather: The client
also requested a fine leather sheath, so I built this
one with 9-10 oz., leather shoulder, dyed black,
hand-carved and inlaid with black Stingray skin panels
on the front and on the back belt loop. The dagger is
retained with a tooled double strap and a nickel plated
steel snap, and the entire sheath is hand-stitched with
polyester sinew, lacquered and sealed.
- A great primary edged weapon, with both tactical and legacy
style and accessories.
Thanks, C. S.!
I got the knife. My personal reactions:
1. Whoa, bigger than I had imagined!
2. Filework: Ok, I see what you were doing with it now with the wing design. It photographed like crap but looks fine.
3. Jade: I really like it. Has a nice cool feel. It was absolutely the right choice for this knife.
4. Engraving: looks even bolder and better.
I'm quite happy with the knife. The engraving works better than I imagined, and the filework integrates nicely with it.
-C. S.
Please click on thumbnail knife photos
