"Random Access Three" obverse side view in CPM154CM powder metal technology high molybdenum stainless steel blade, vertical and horizontal sheaths in hand-stamped brown basketweave leather shoulder
"Random Access III"


"Morta" in twist damascus welded blade, hand-engraved 304 stainless steel bolsters, ancient Bog Oak handle, hand-carved, hand-dyed leather sheath, hand-cast bronze stands
"Morta" Knife Sculpture

In the ancient past, geometry was just being developed in Egypt when Thutmose III ascended to the Egyptian throne and began the first use of the term Pharaoh. About that time the Mycenaean Greeks conquered the Minoan Civilization on Crete and the first metalworking began in South America. The war chariot was introduced to China, and Amenhotep IV introduced monotheism to Egypt. This time was before Tutankhaman (King Tut) reestablished polytheism as official religion in Egypt, before Judaism was established in Palestine, and before the Olmecs, before the Phoenician maritime dominance in the Mediterranean, and even before the use of chairs, which were first used only by Egyptian royalty. This was before the invention of steel, before the iron age began.

"Morta" side view. Stands are cast in solid silicon bronze, hand-carved in wax.

This is when a large, heavy oak tree fell into a marshy swamp, a bog, in what is now the Ukraine. Perhaps it died of age, or in a flood, or an earthquake, or even a fire; we'll never know. What we do know is the tree fell 3430 years ago, and was soon covered by other organic matter that did not allow the wood the time to rot away. I'm sure no one knew or cared about this tree, buried in the acidic and anaerobic bog, shielded from air, oxygen, and even time itself, as it slowly percolated in minerals and moisture. The world went on around it, through wars, and peace, and technology, and growth that would comprise all modern history. Then, in 2005, the remains of the log was pulled from the bog that had been its resting place for over 3400 years, outlasting nearly all of mankind's record. This is a very ancient Morta.

"Morta" reverse side view in twist damascus pattern welded steel blade, hand-engraved 304 stainless steel bolsters, Bog Oak mineralized hardwood handle, sheath of hand-carved leather shoulder, hand-dyed, stand of hand-cast bronze

The word Morta has uncertain origins, but is generally believed to be the Roman Fate who cuts the thread of life, the equivalent of the Greek Atropos. Though the use of this word as a noun is rare, it is typically used to describe bog oak in several cultures.

Morta is another name for bog oak, the central theme of this fine knife sculpture. I was lucky to acquire the bog oak from the source in the Ukraine, along with the accompanying documentation and carbon dating necessary to its provenance and pedigree. I literally built the knife based on the bog oak, and the entire theme of the piece centers around this very special ancient organic material.

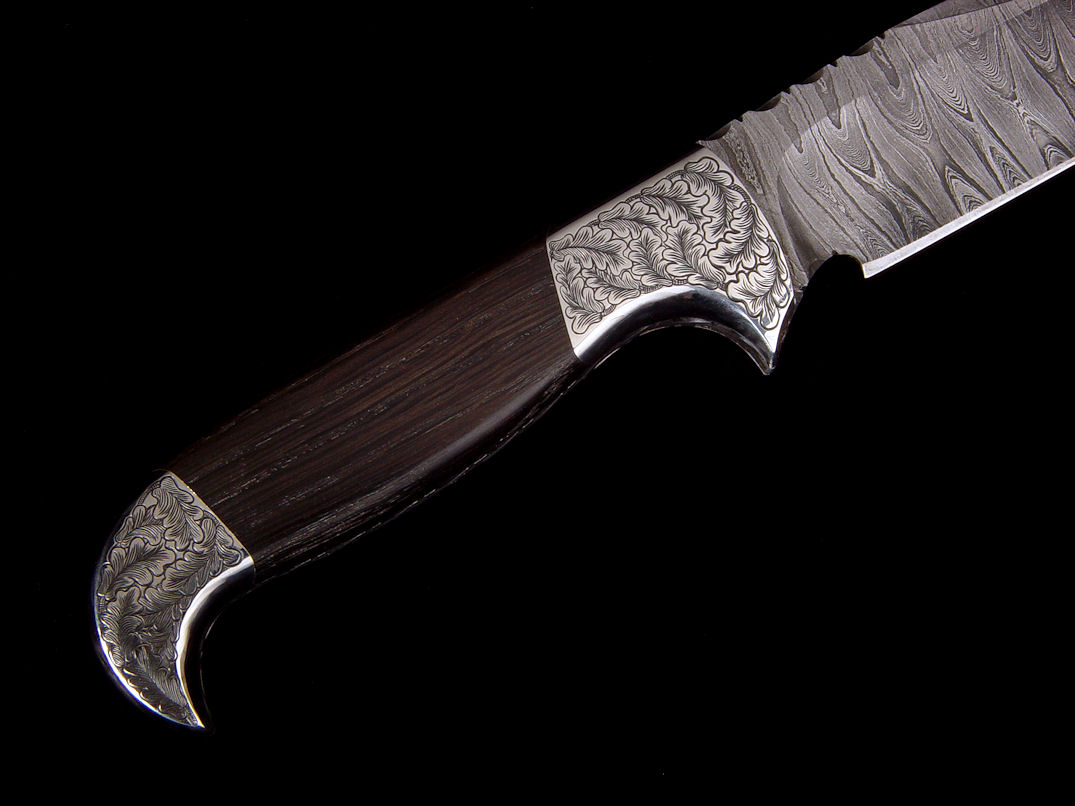

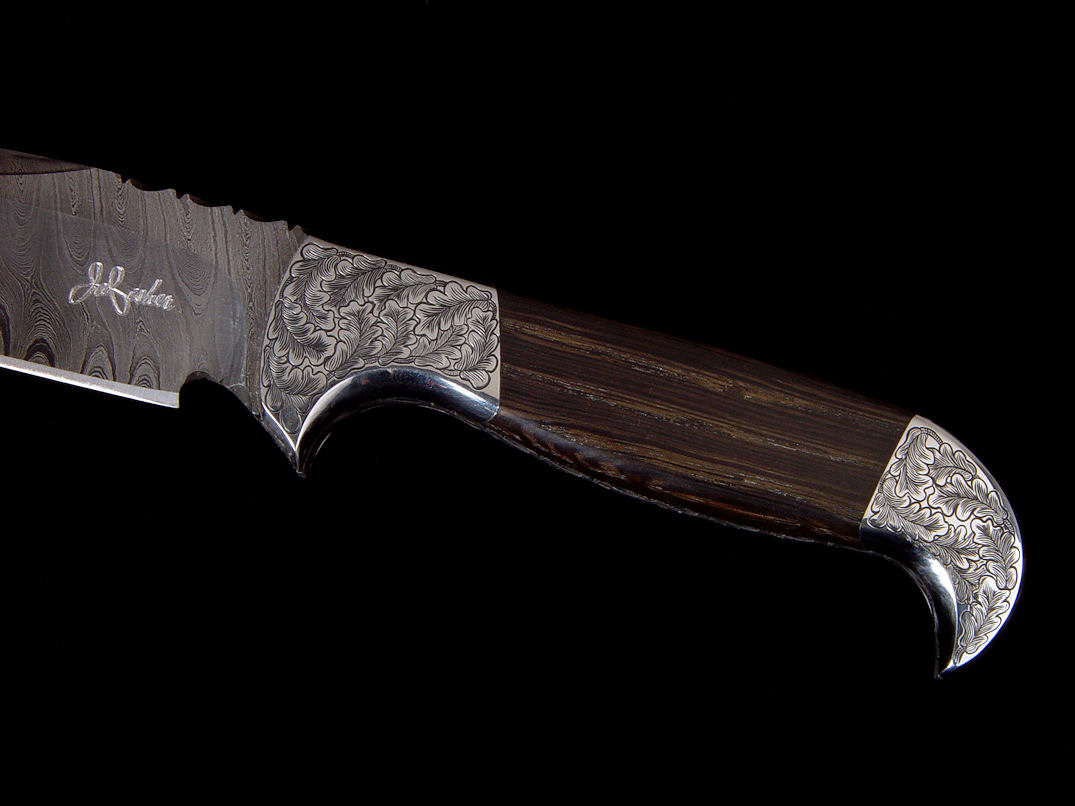

"Morta" obverse side handle detail. Bog oak handle is tough, durable, stable, and ancient.

Bog oak is very hard, tough, strong, and stable. It has literally thousands of years of penetration of minerals in its pores, filling them, permeating them, hardening and stabilizing them. This also darkens the wood, with a stain of ages that exists in no other material on the planet. Bog oak won't shrink or rot, or stain, or absorb water, it is the ultimate wood material. While we have developed modern methods to stabilize woods and other organics, we inject plastic to do this, while nature takes its time, an immense amount of time, indeed.

Bog oak has been prized throughout history, and particularly in western Europe and the British Isles. However, bog oak from this region has played out, is protected, or is tightly controlled or severely limited for export. Bog oak was prized for knife handles by the Scotts, the Irish, and the English, French, and others, and even has even been treasured for magical powers.

In Morta, I bring this very ancient, respected, and valued historical material to a modern art form.

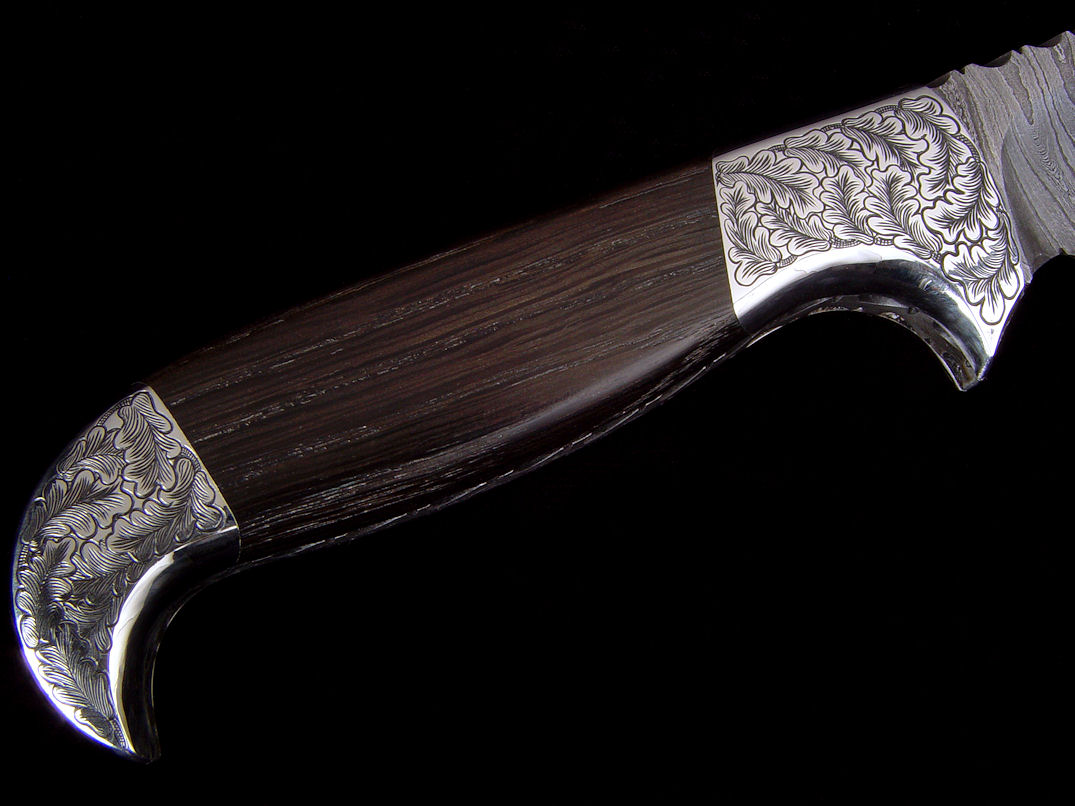

"Morta" reverse side view, bog oak handle detail. Natural mineral impregnation darkens wood pores, hardens and stabilizes the wood over thousands of years.

I started with a dark twist arrangement of pattern welded damascus steel, using O1 high carbon oil hardening tool steel and A36 structural steel, layered together and twisted, forged, hardened and tempered, and selectively blued to bring out the pattern. The knife shape is a tanto point with a top swage, deeply and accurately hollow ground with crisp, matching grinds that yield an extremely sharp cutting edge. Variations of material along the cutting edge layers create an aggressive, microscopic toothed cutting action, and the blade is fully fileworked with a bold and deep pattern fully around the tapered tang.

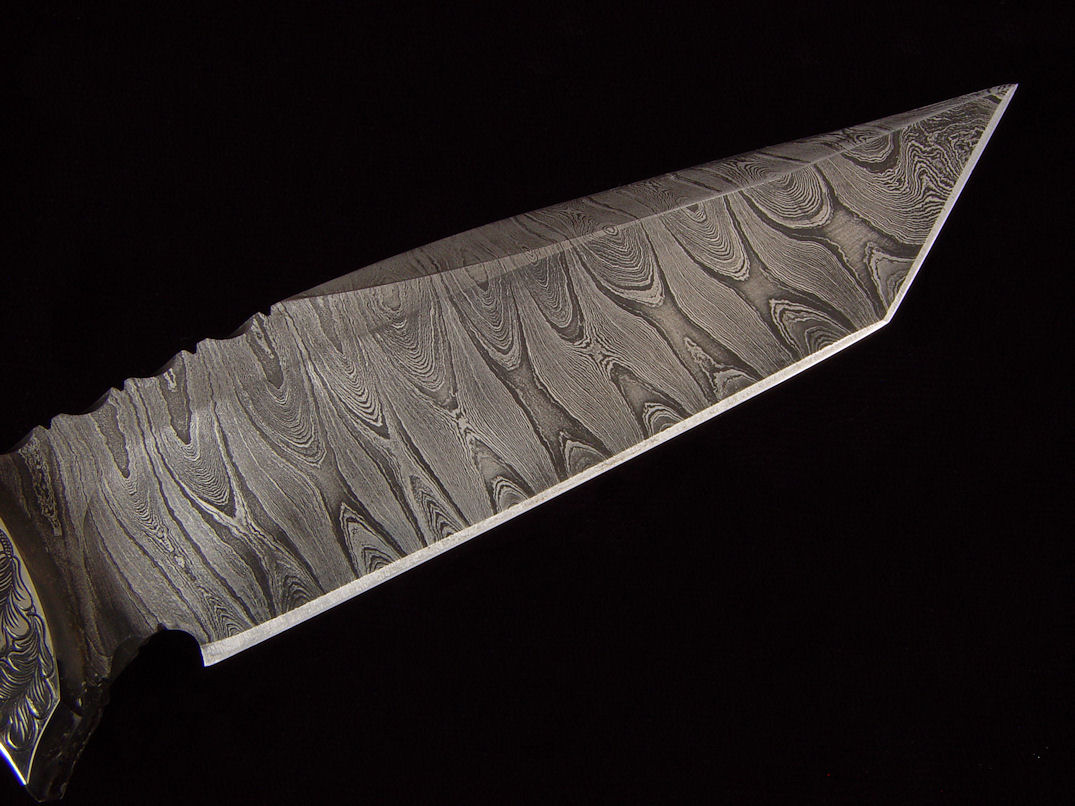

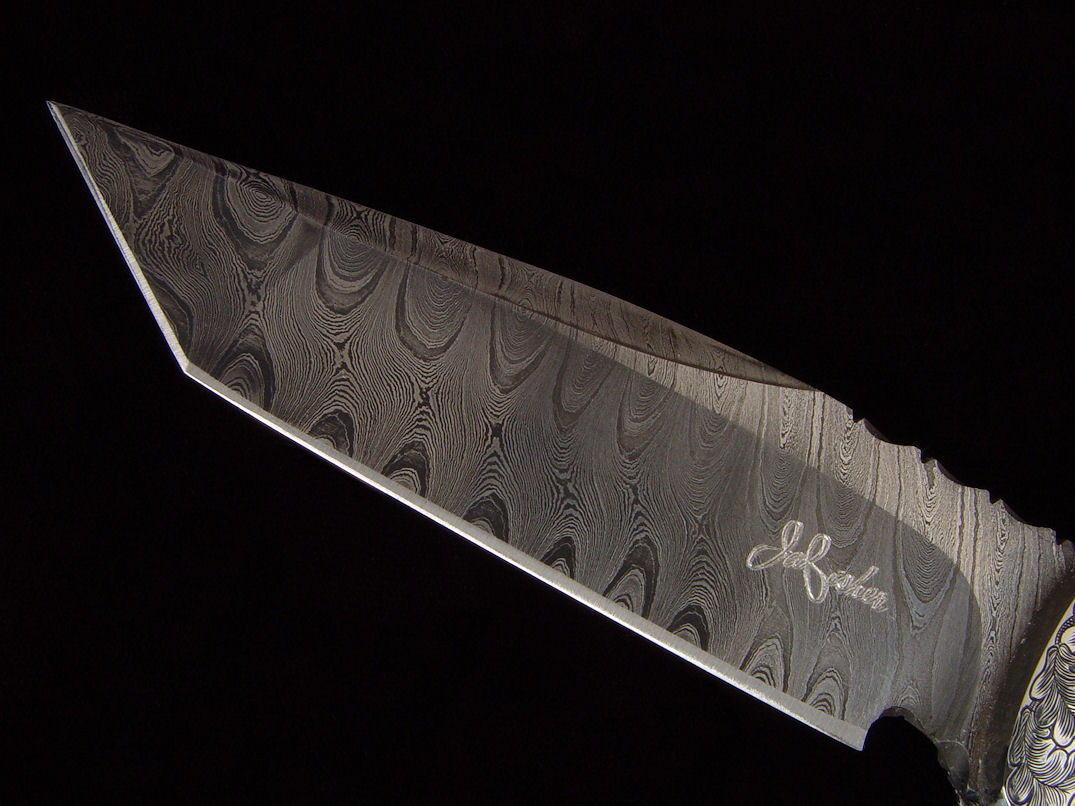

Pattern welded twist damascus in O1 and A36 steels

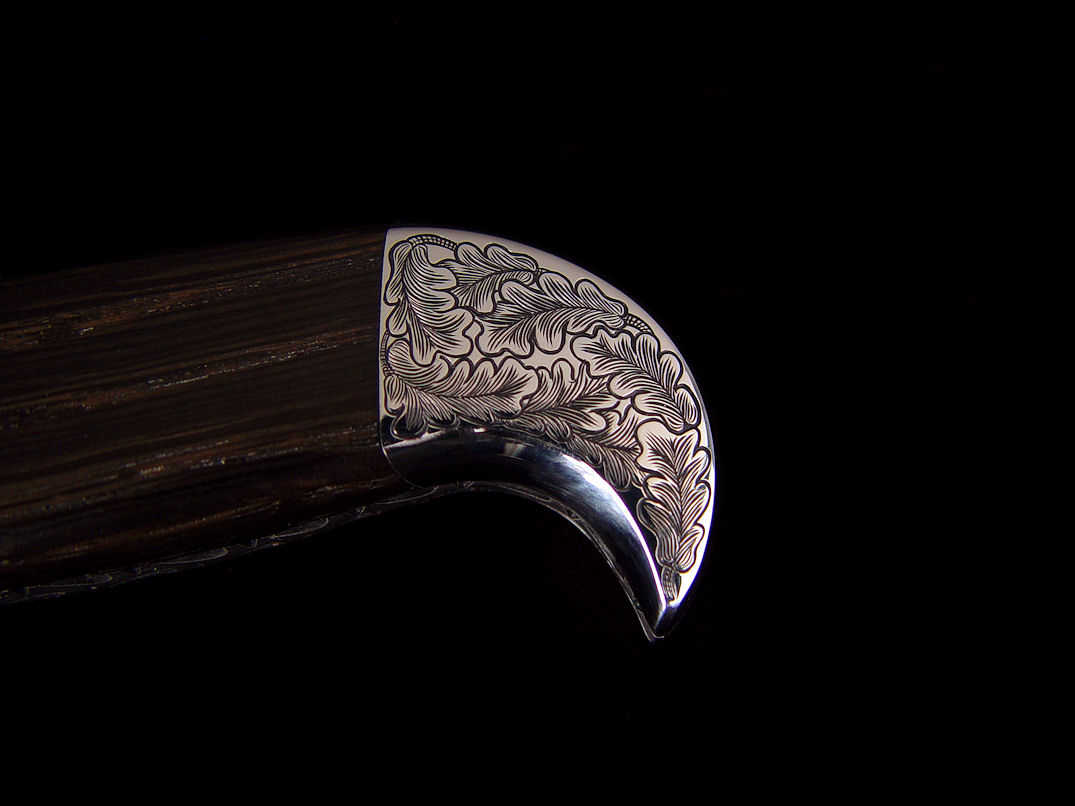

The knife is bolstered with zero-care high chromium, high nickel 304 austenitic stainless steel, the same steel used to make tough and hard stainless steel fasteners. These are dovetailed to bed the bog oak handle scales, and they are fully engraved with a packed oak leaf pattern. It is rare that any knifemaker hand-engraves this stainless steel; it is brutally difficult and time consuming, but will outlast all other bolster material. The bolsters are contoured, rounded, formed and polished for comfort.

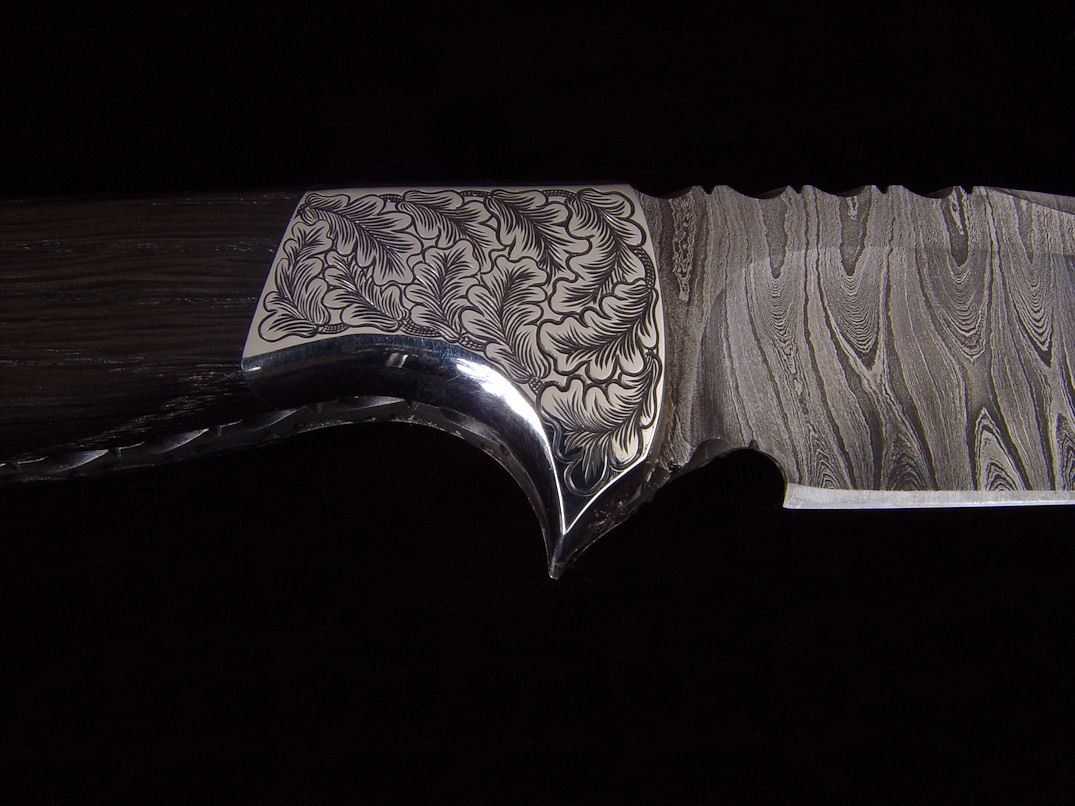

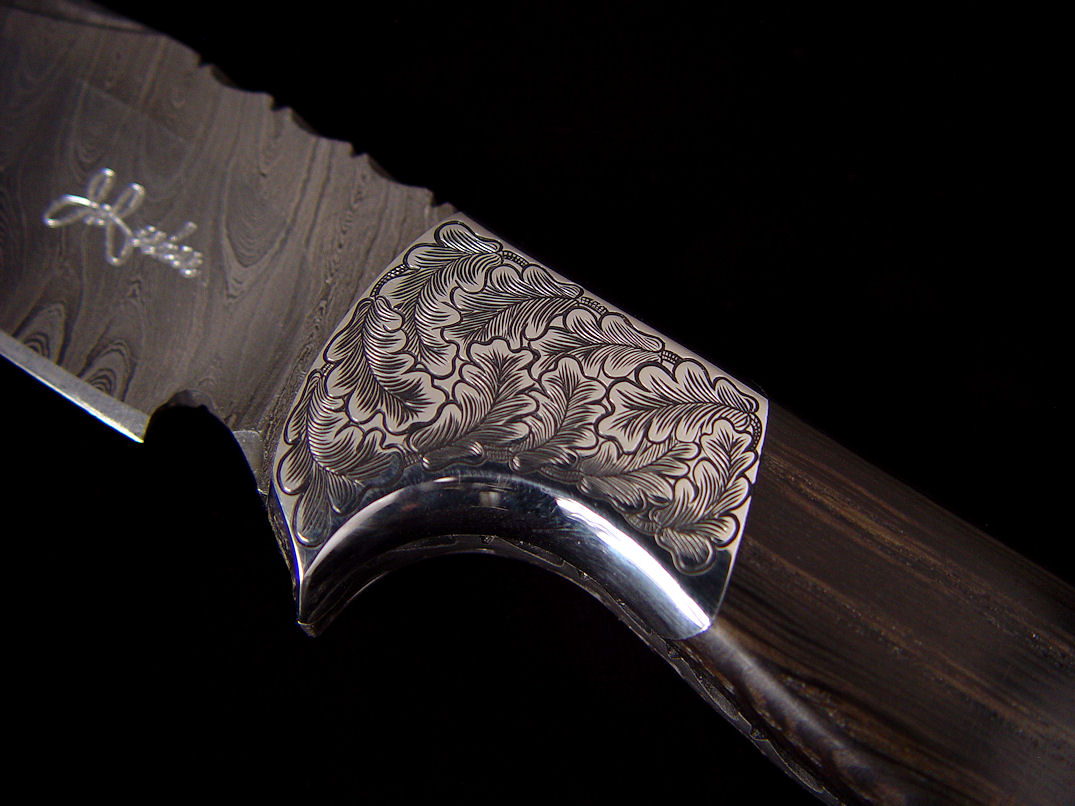

"Morta" obverse side front bolster detail. Bolsters are hand-engraved 304 high nickel, high chromium stainless steel

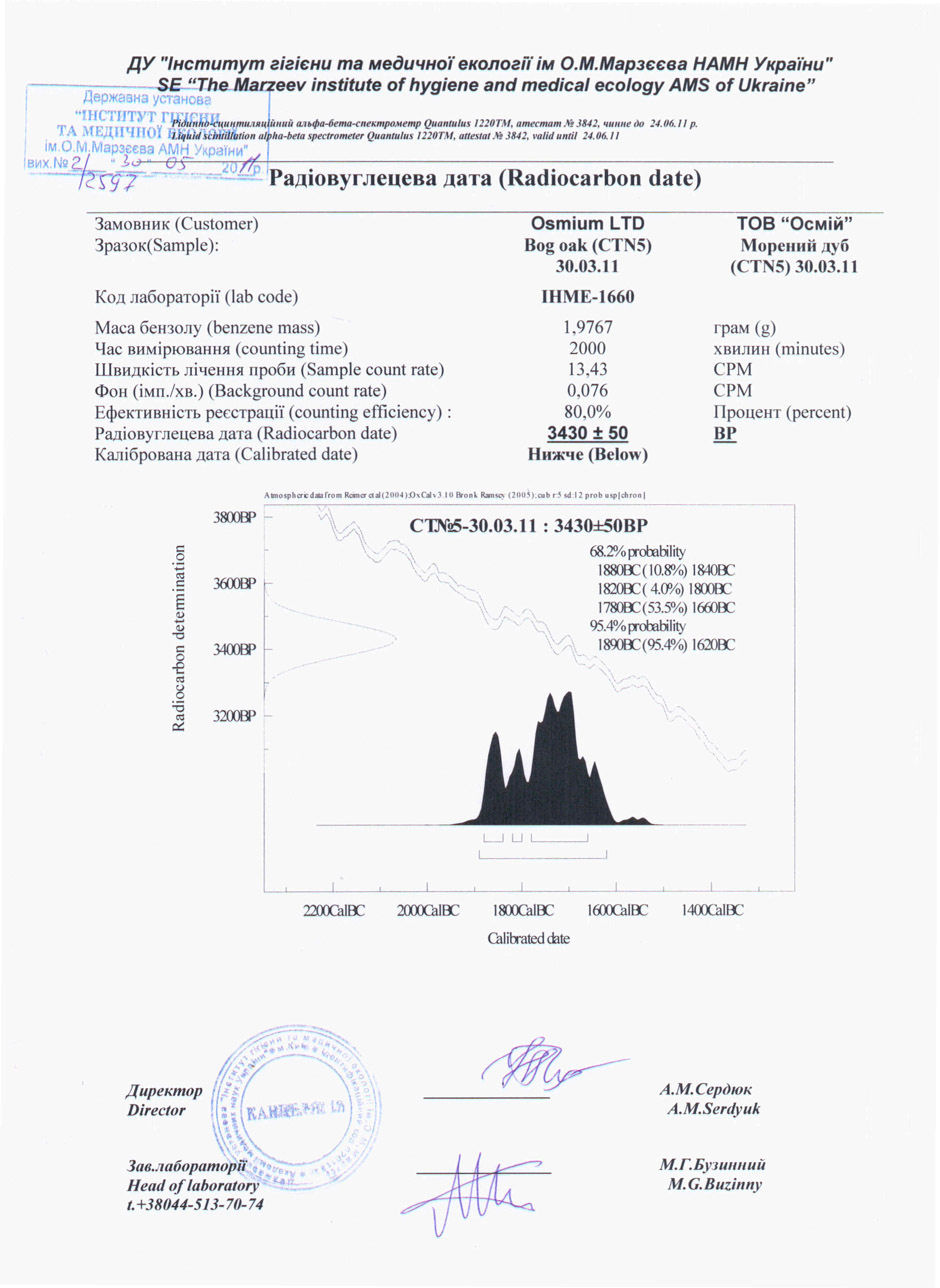

The handle scales are bog oak, radiocarbon dated (see provenance below and included in package) to 3430 years BP (Before Present) with a variable of plus or minus 50 years, which is as accurate as reasonable for this testing and material. While there are other woods that are loosely called bog oak, merely because they are buried and mineralized, this is truly oak, with the unmistakable grain and structure of this Quercus species. Due to the immense aging and mineralization, the Morta handle is thoroughly a dark brown color with hints of black and a tiny bit of silver sheen when turned in bright sunlight. Of course, the color is through and through, and the mineralized wood is incredibly stable and solid. I finely finished the wood to a bright polish, and an occasional coat of light wax as on the blade keeps it pristine. It's dramatic to think that this piece of wood is older than the entire human history of steel, predating the iron age! The wood feels warm and solid in the hand. When I grasp the knife, I'm clearly aware that this organic substance has already lasted over 100 generations and three millennia. I'm humbled to know it will probably last many more generations, with little concern.

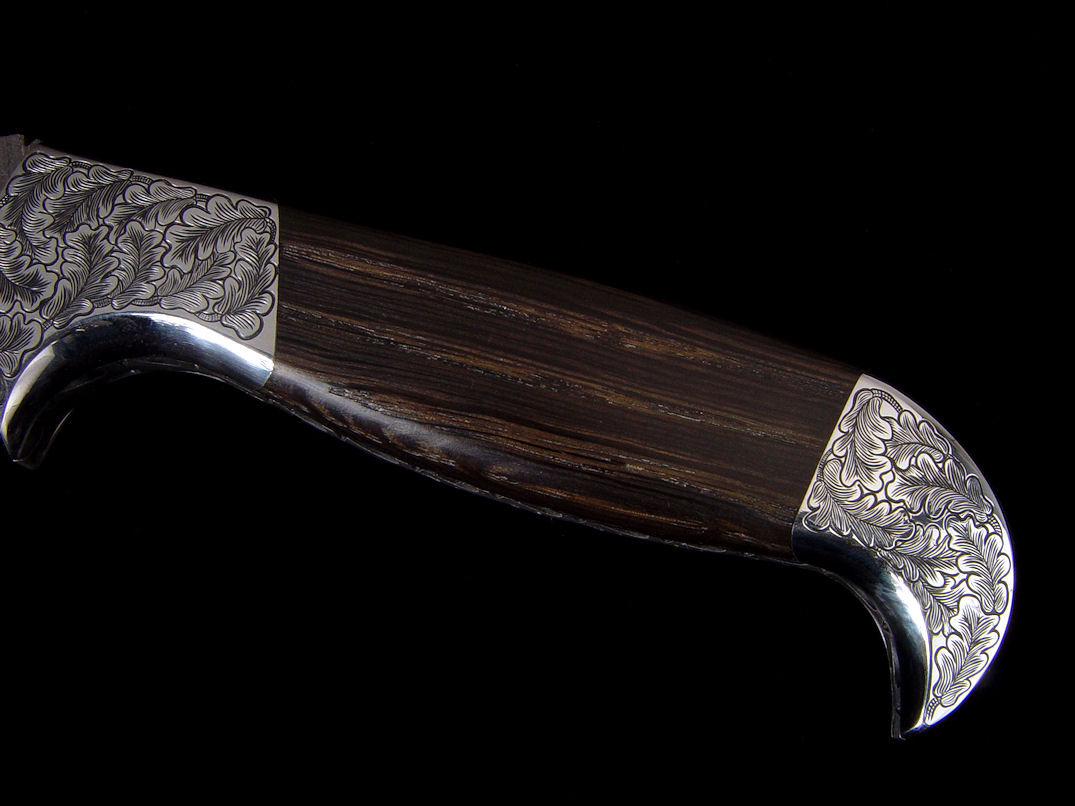

"Morta" reverse side view, handle detail. Bog oak is dense, hard and durable, self-sealed and stabilized through millenia

The knife feels inviting and solid in the hand, the quillons keep the fingers comfortably wrapped to the handle, and the cool stainless steel is balanced by the warmth of the old oak. The knife has perfect forefinger balance; comfortable in either forward or reverse grip.

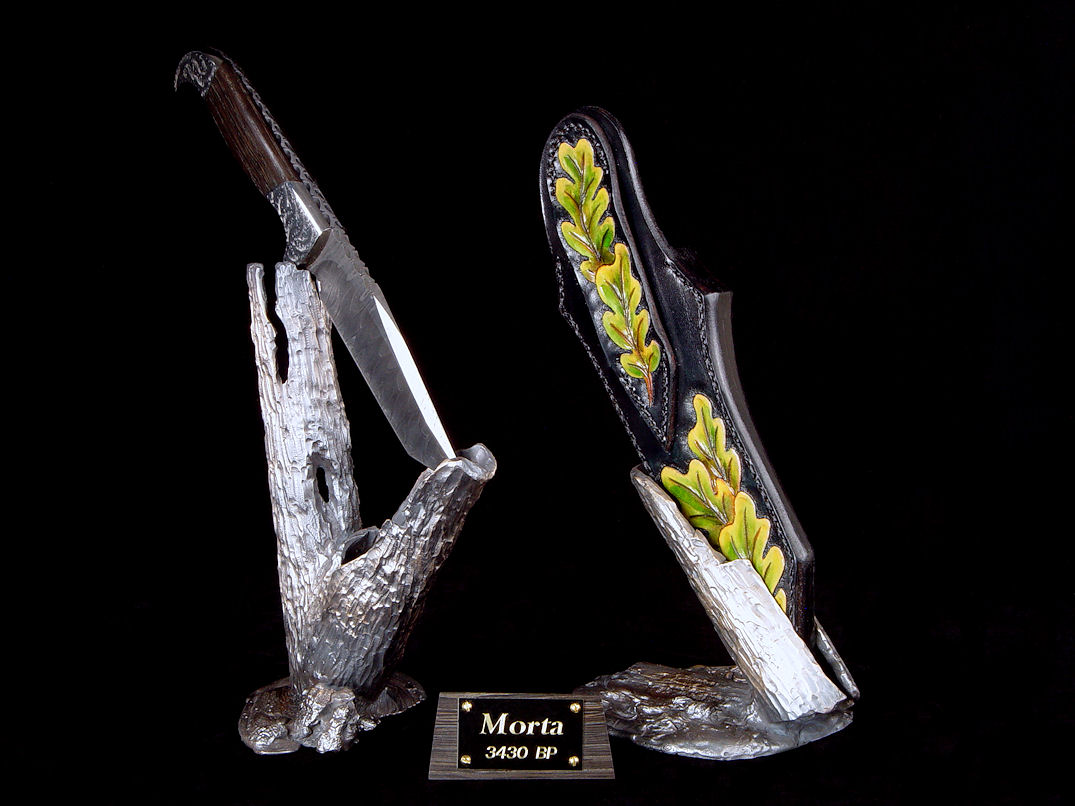

"Morta" obverse side view in twist damascus pattern welded steel (O1 and A36), hand-engraved 304 stainless steel bolsters, Bog Oak mineralized handle, sheath of hand-dyed, hand-carved leather shoulder.

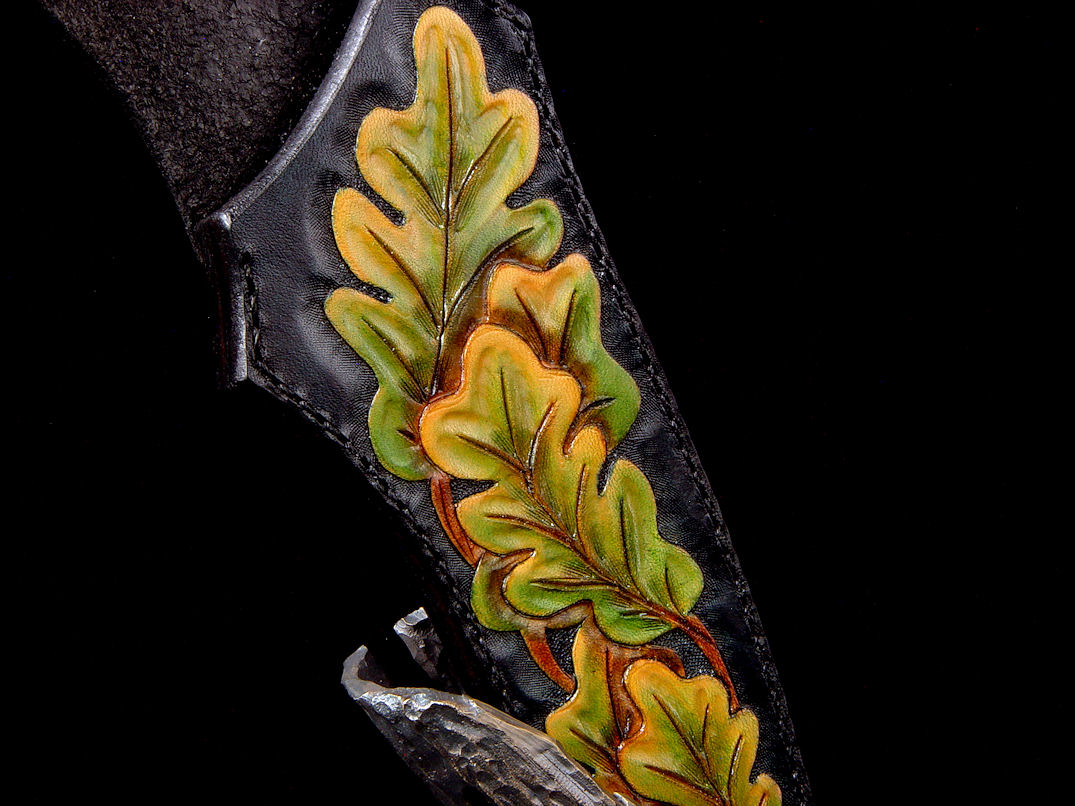

The sheath was the next creation that I needed to honor the ancient oak. I hand-carved and meticulously hand-dyed 9 - 10 ounce thick leather shoulder, in the pattern of oak leaves and stems, just beginning to turn. For me, this symbolizes the eternal cycle of years that all life on the planet endures. The sheath is hand-stitched with black nylon and polished, finished, and sealed. It's a deep, protective sheath that displays a view of the handle and the rear bolster, with a high rise back protecting the wearer. It's smooth, solid, and functional, but beyond that, it honors the knife, which is how it should be.

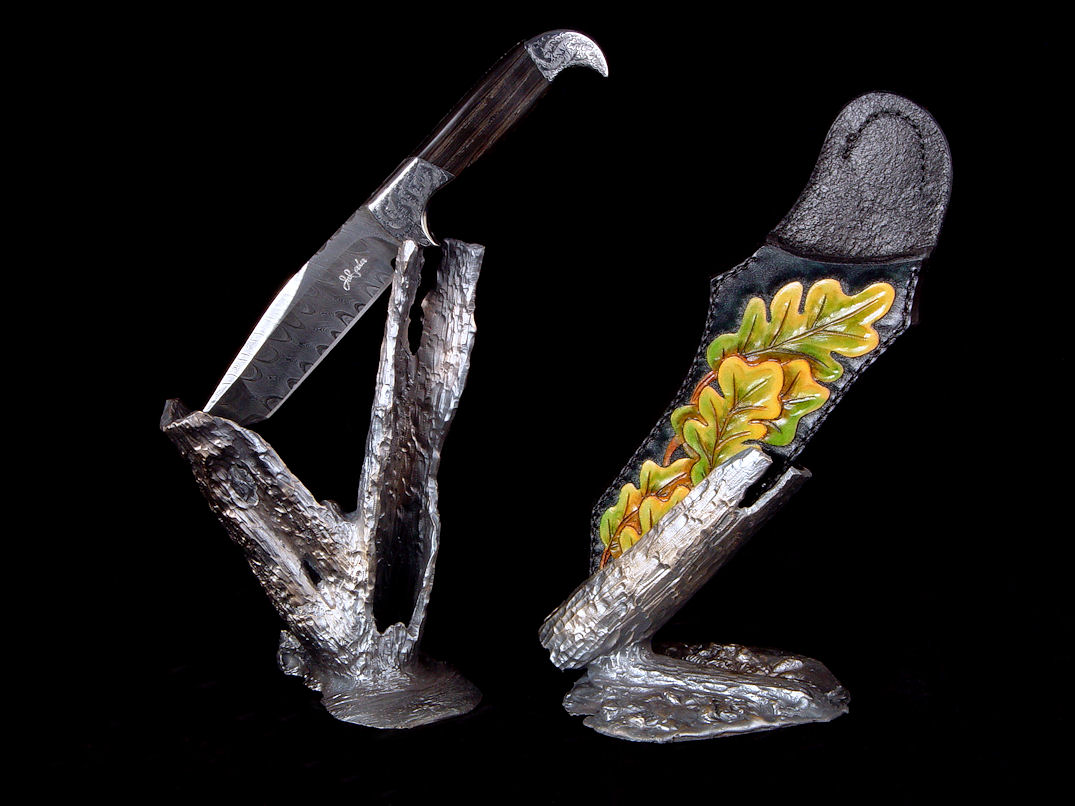

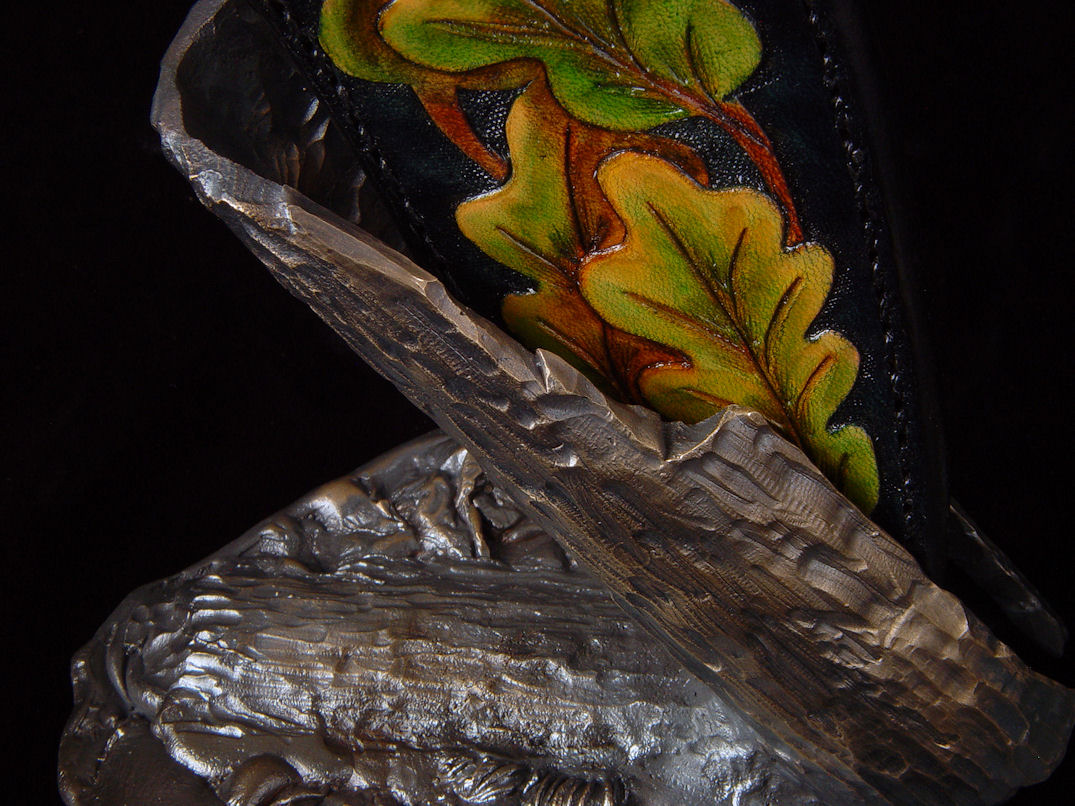

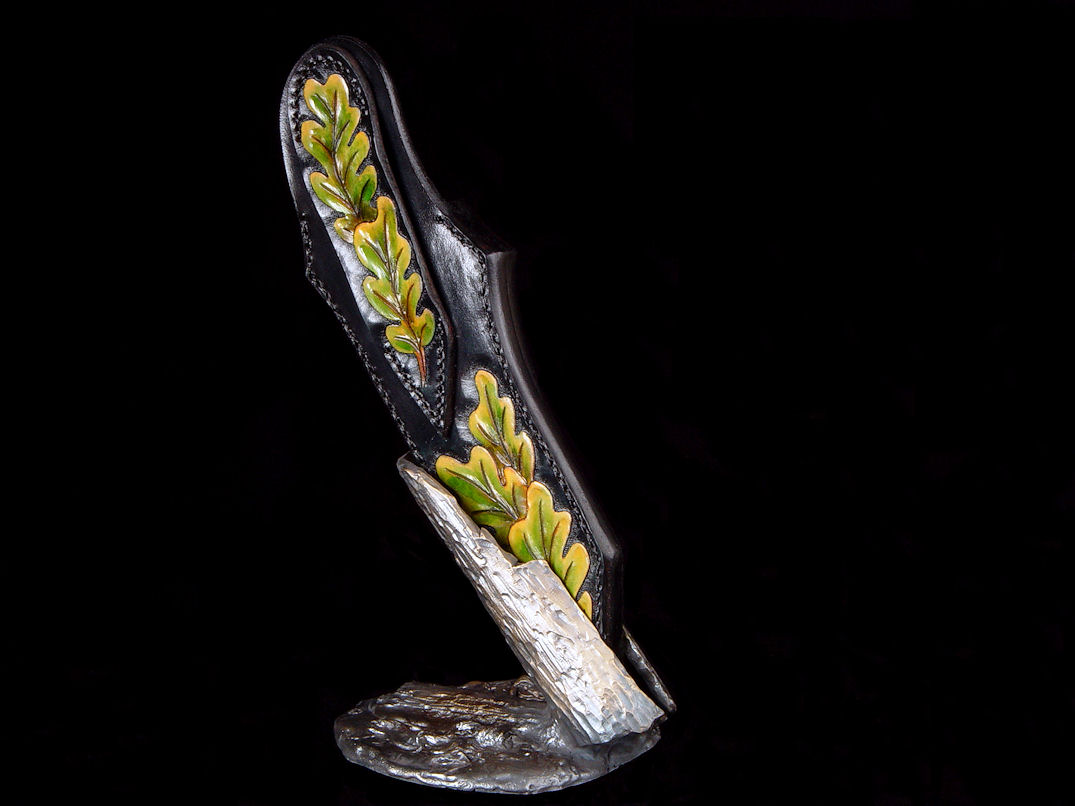

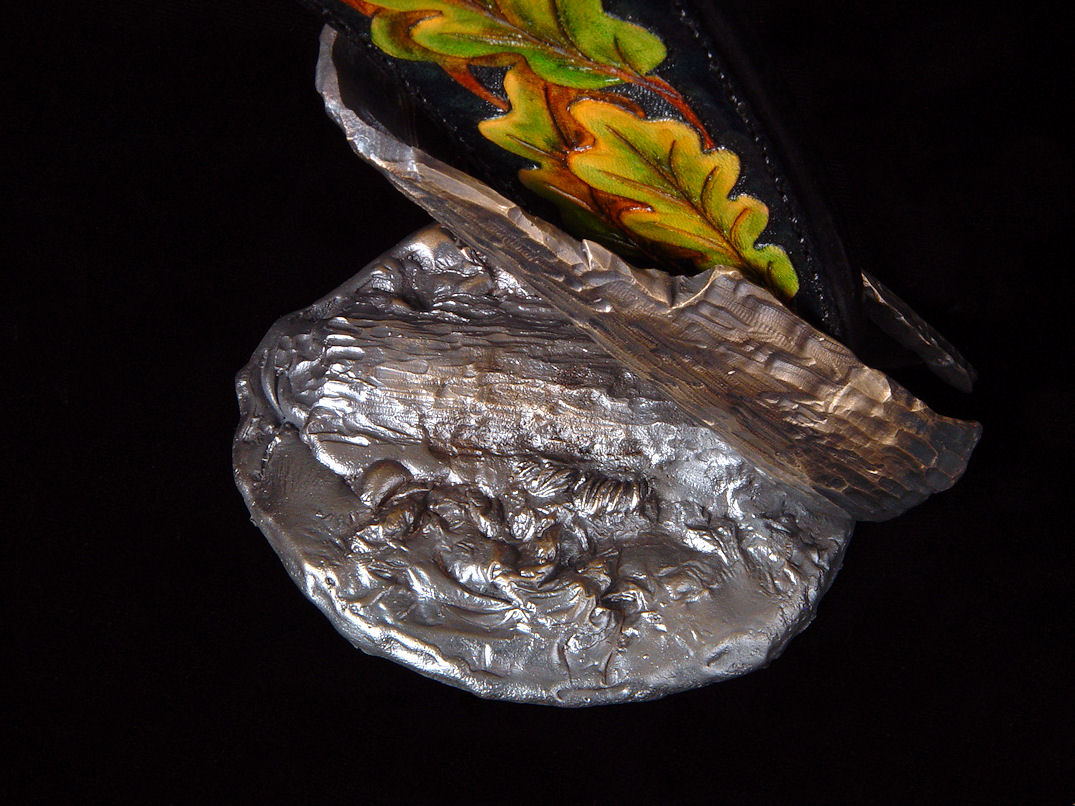

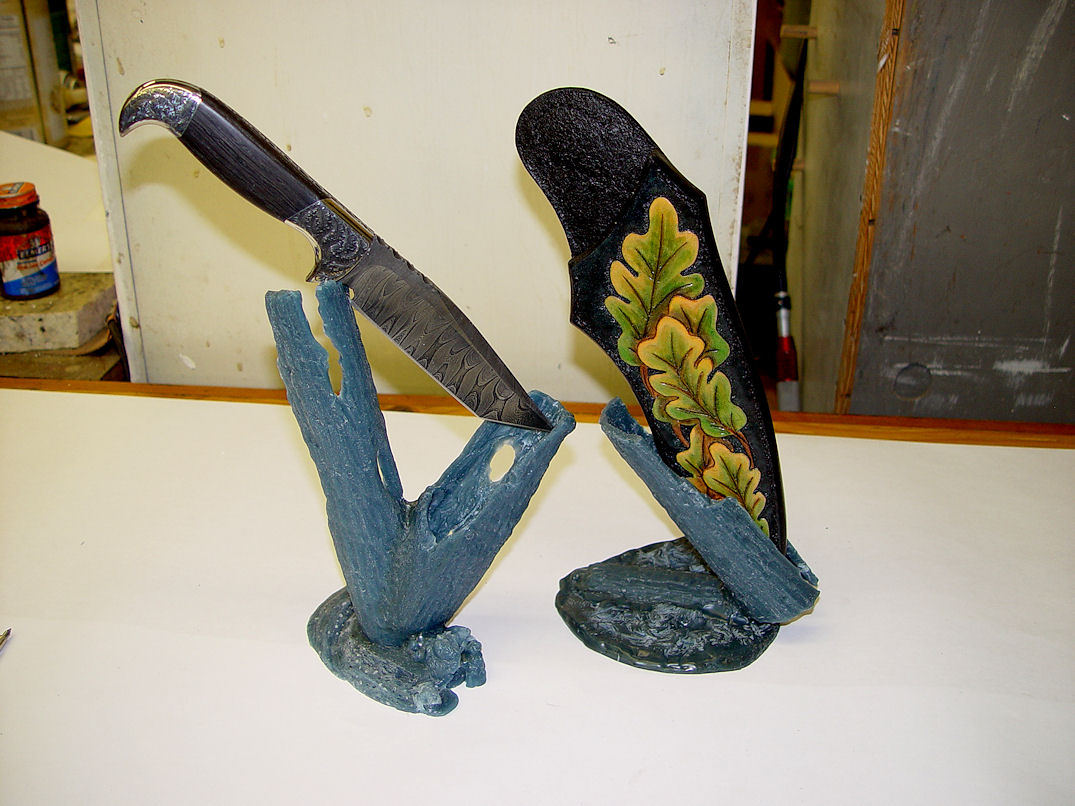

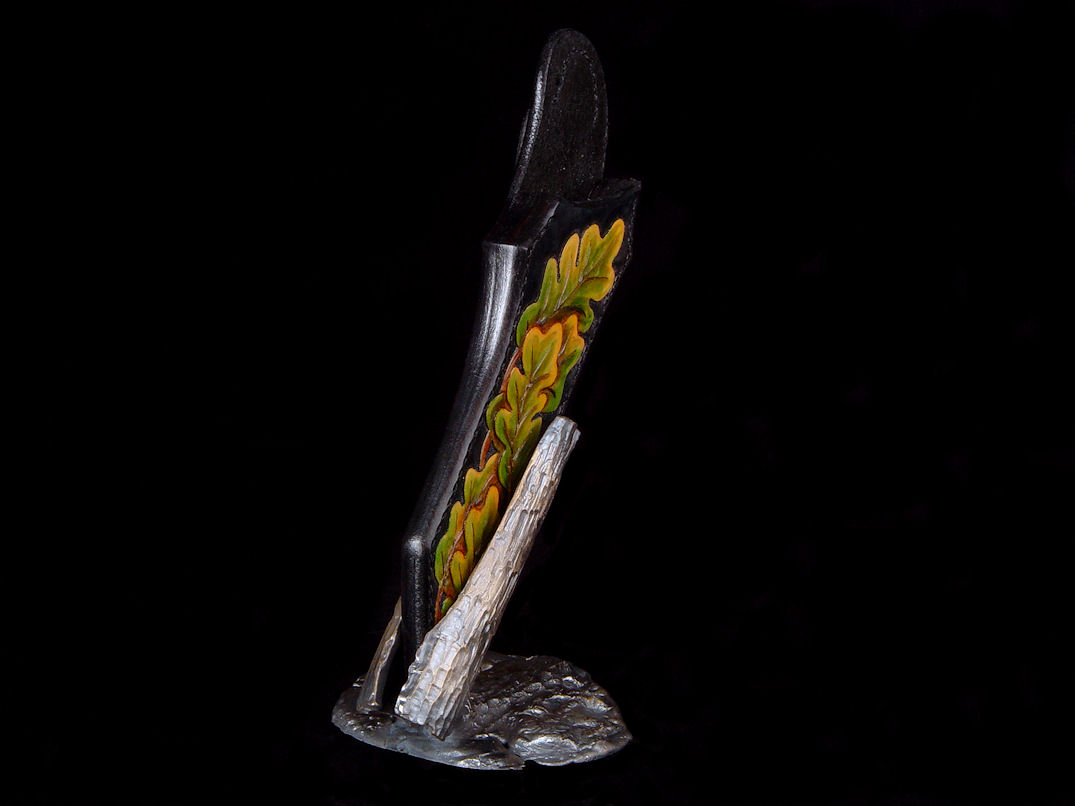

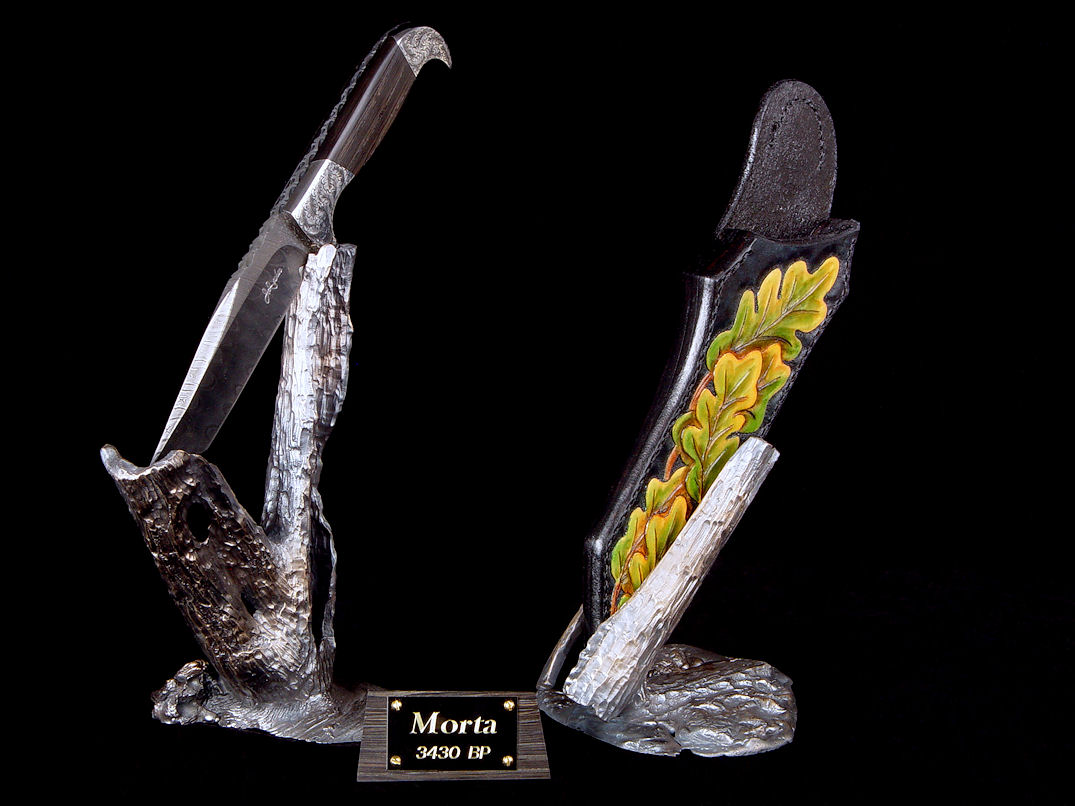

"Morta" sheath and cast bronze stand view. Sheath rests inside stand, is stable and sculptural.

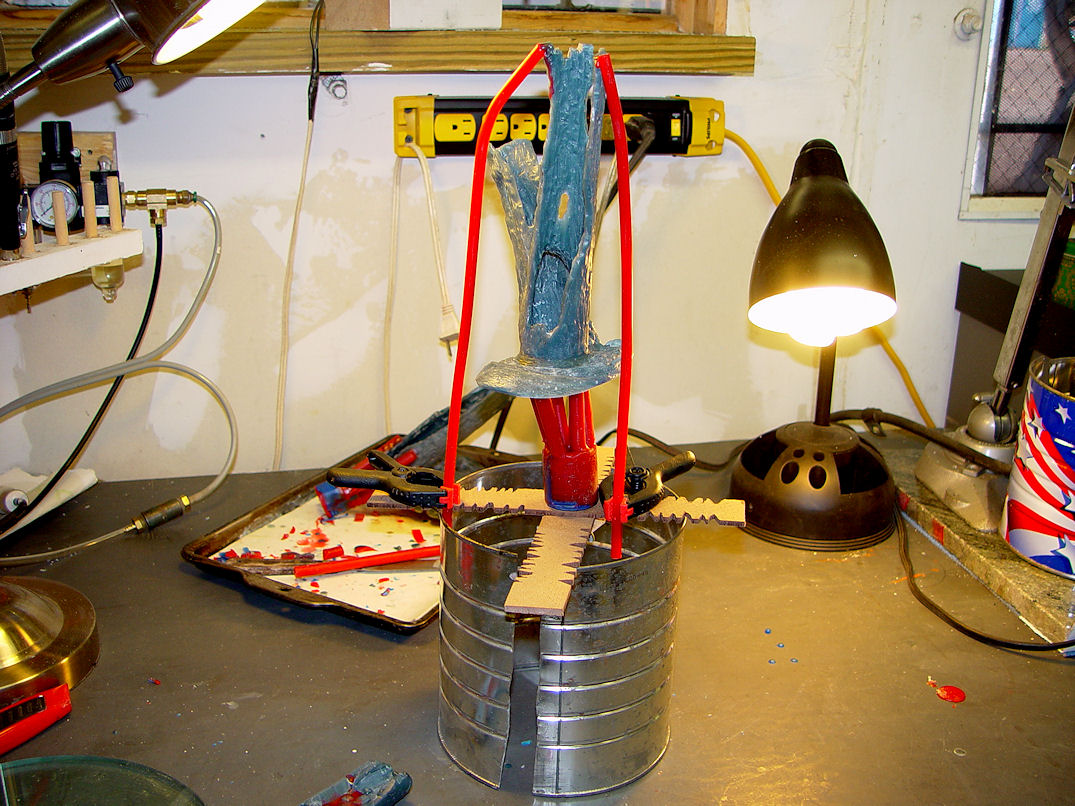

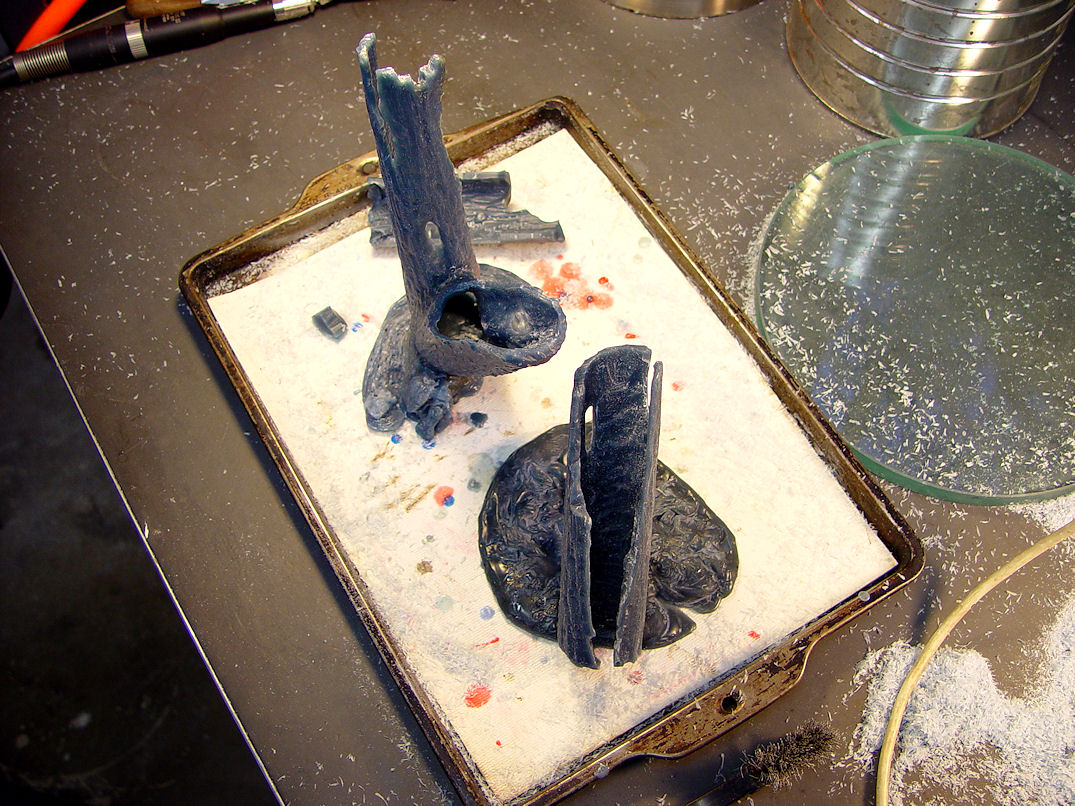

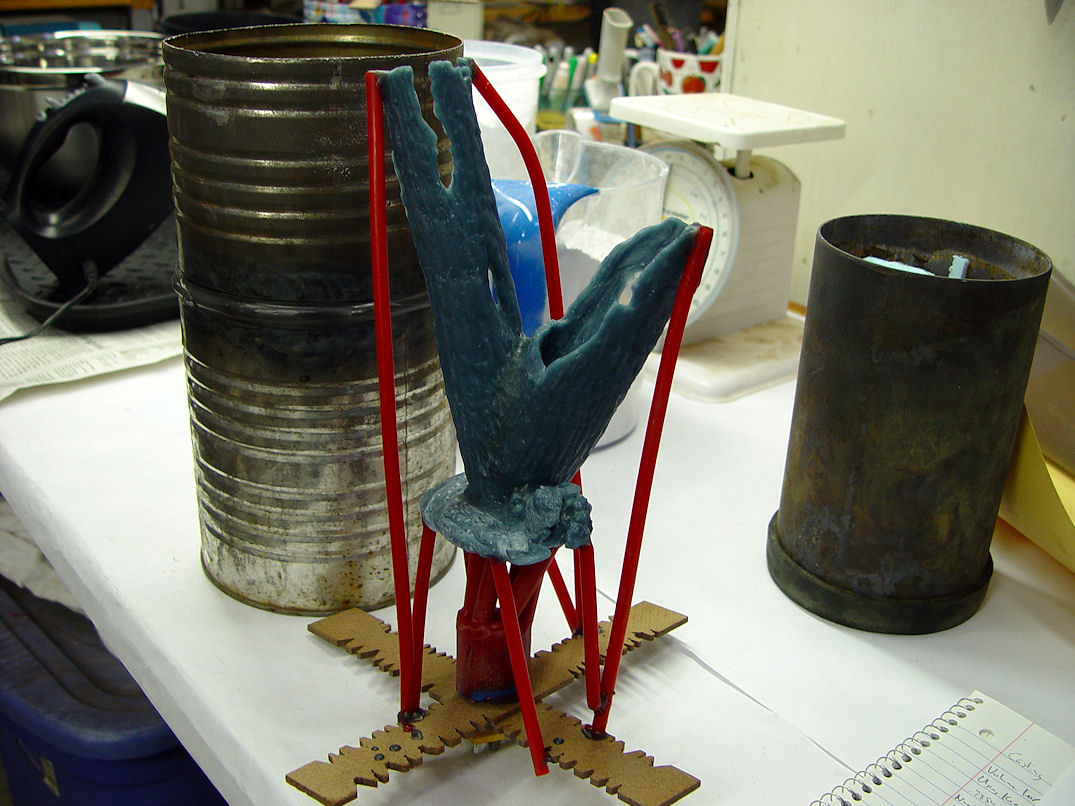

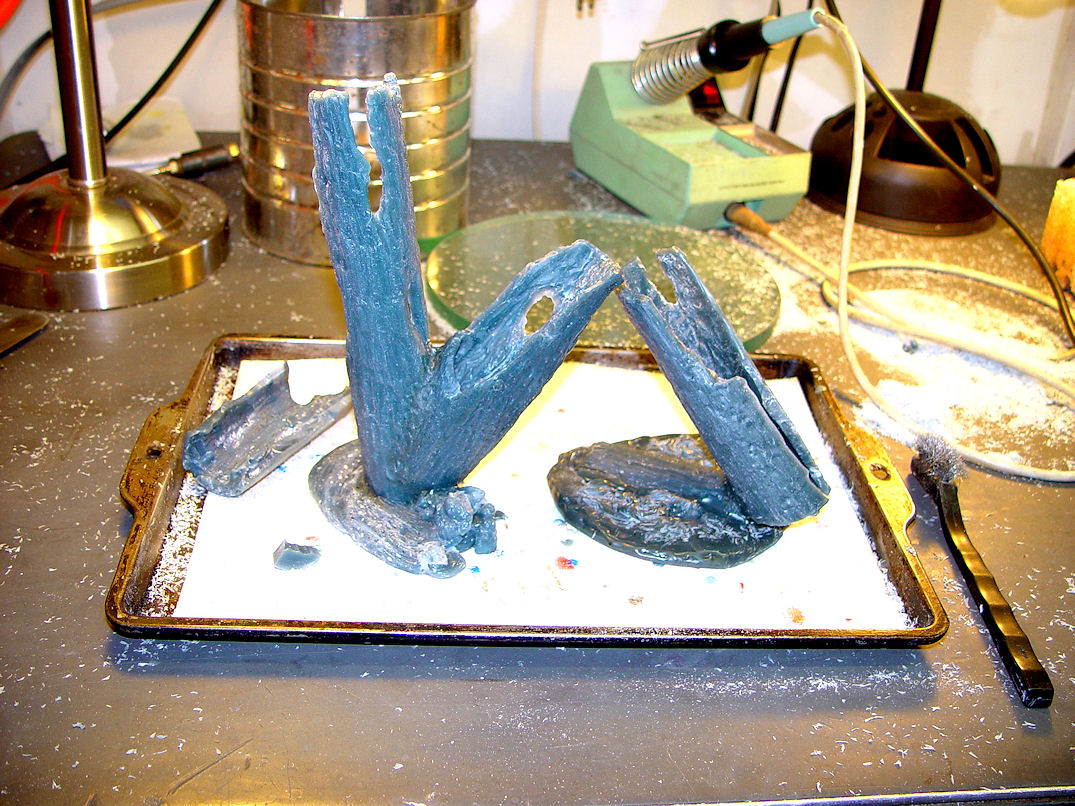

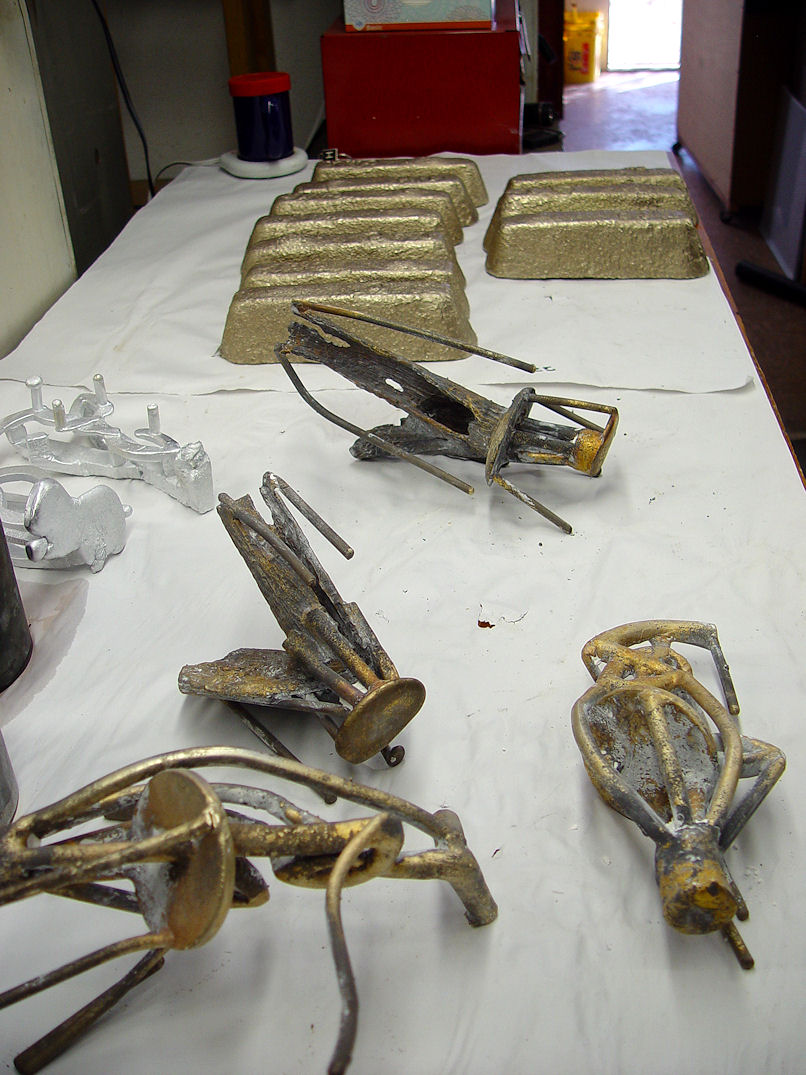

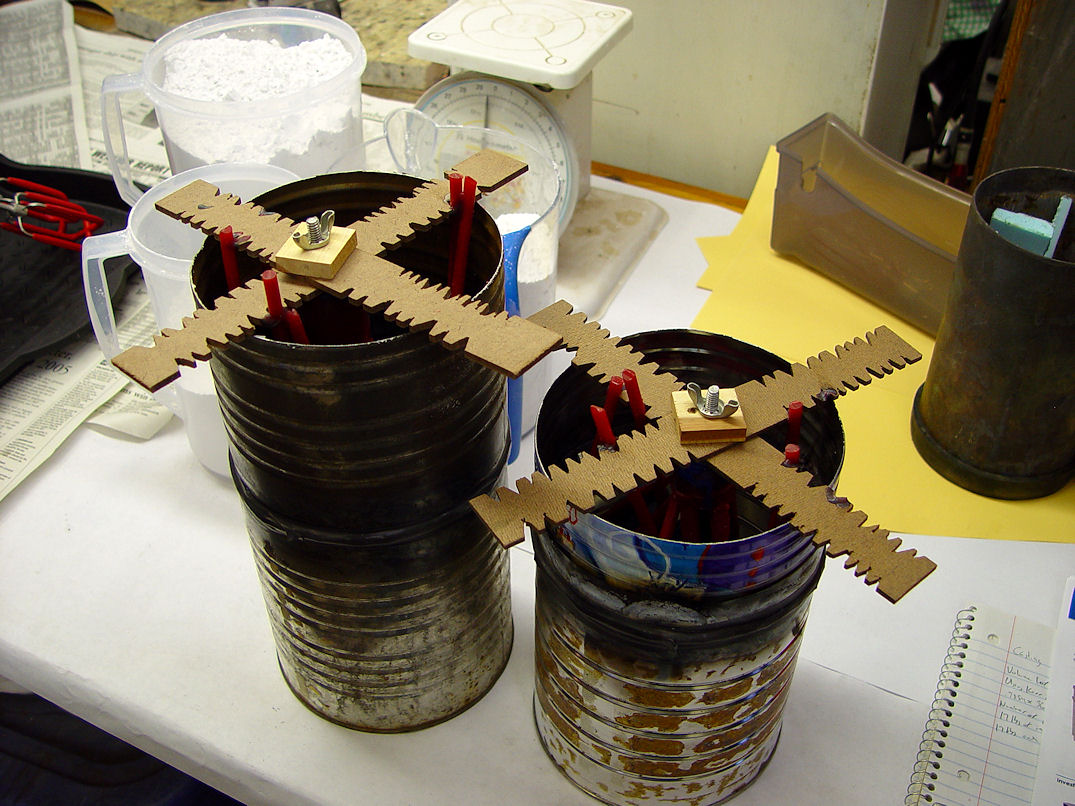

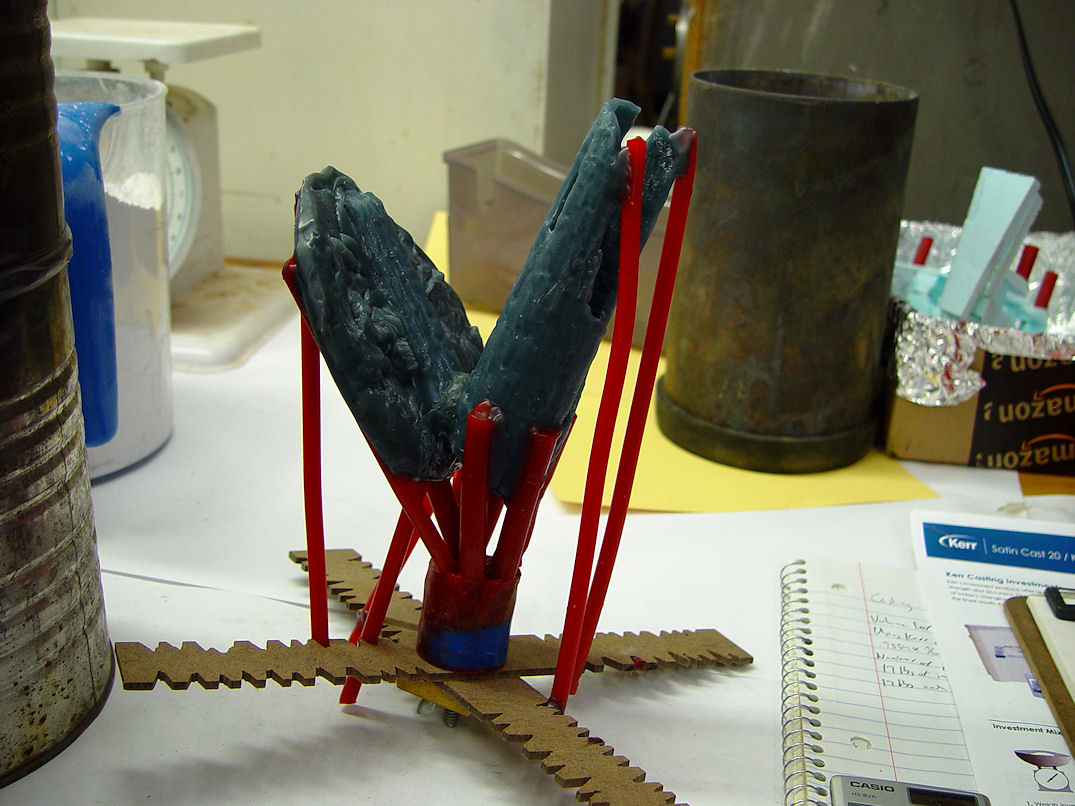

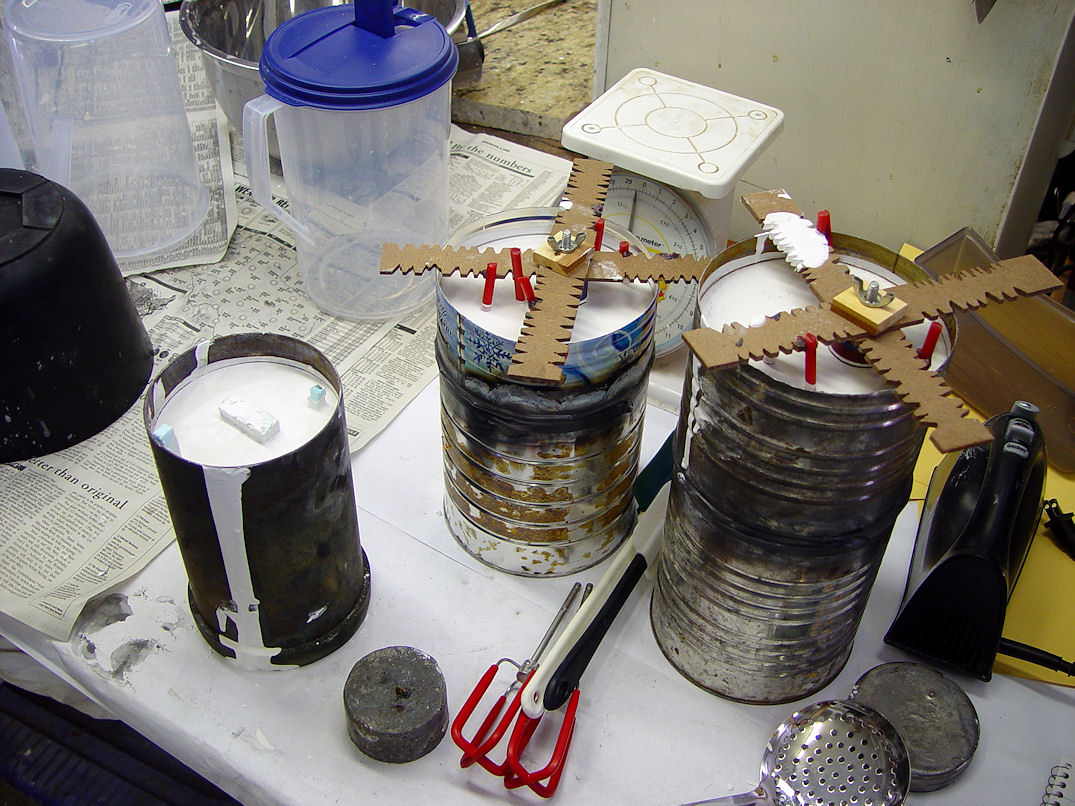

Perhaps the most striking components of this work of art are the stands. In my commitment to complete works, I realized that the stand must not just be a display, but must reflect the origin and emotion of this ancient, once-living organic remains. I went all out. I designed and hand-carved renditions of old, hollowed, decaying trunks of oaks in carving wax. The trunks were designed to hold the knife and sheath at specific display angles, to compliment the knife and sheath without overshadowing them. The trunks were set in carved and formed bogs of patterned and melted wax, and the entire wax models took many hours to complete. Since this was a singular work, without mold or other model, I knew that one error in the process would cause me to lose the wax models and thus the result. I attached sprues and vents, carefully placed and calculated runners and gates, and set the wax model in casting investment. This is a specialized plaster that reproduces exactly the model, its surface, form, volume, and shape. I had to construct several welded coffee cans for these large casting flasks, and mix up a sizeable amount of investment. I had to make special holders for the wax frames, and accommodate these oversized flasks in the burnout oven. The invested waxes were burned out during a 38 hour process (see video) and over three pounds of 1950°F molten bronze were poured into the 900°F flasks. The castings were cooled, the molds broken out and dissolved in shake-out, the bronzes fettled (cleaned, de-sprued, and formed by carving and sanding), and then patinaed. For the patina, I chose a lustrous silver color, with hints of bronze peeking through to compliment the color of the knife blade, engraving, and bog oak.

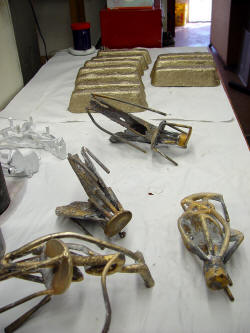

The stands alone are works of sculptural art. Be sure to watch the video of the casting and shakeout of these fine castings.

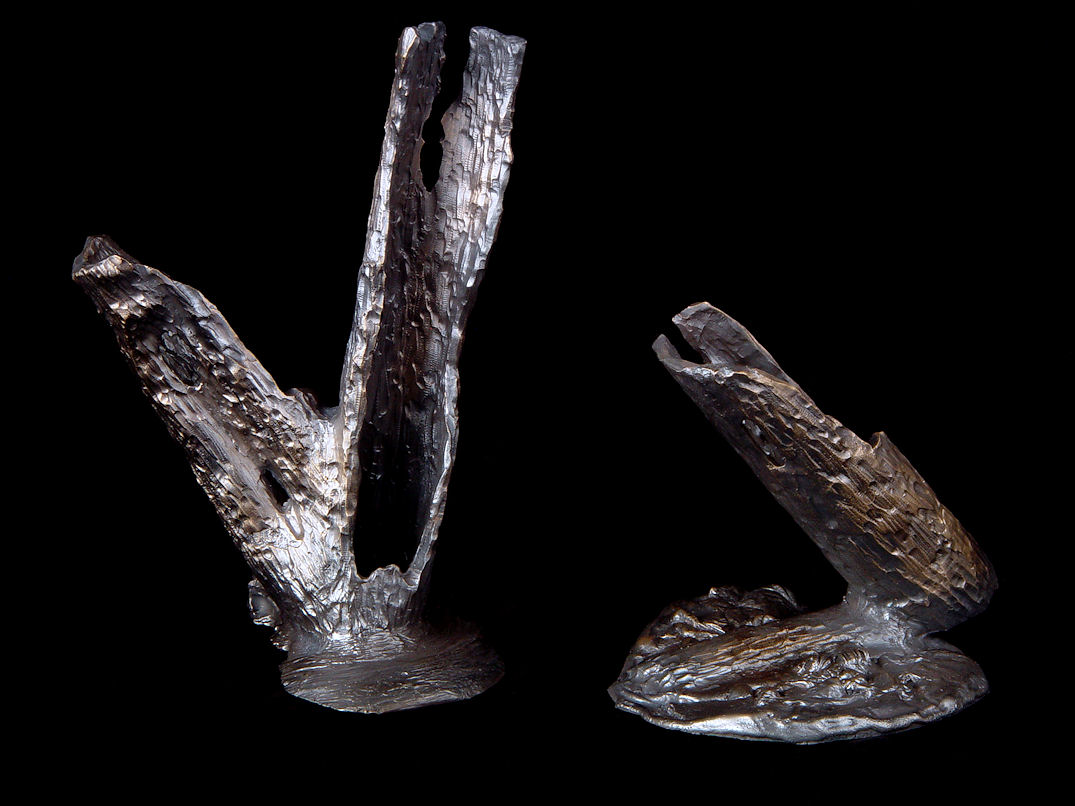

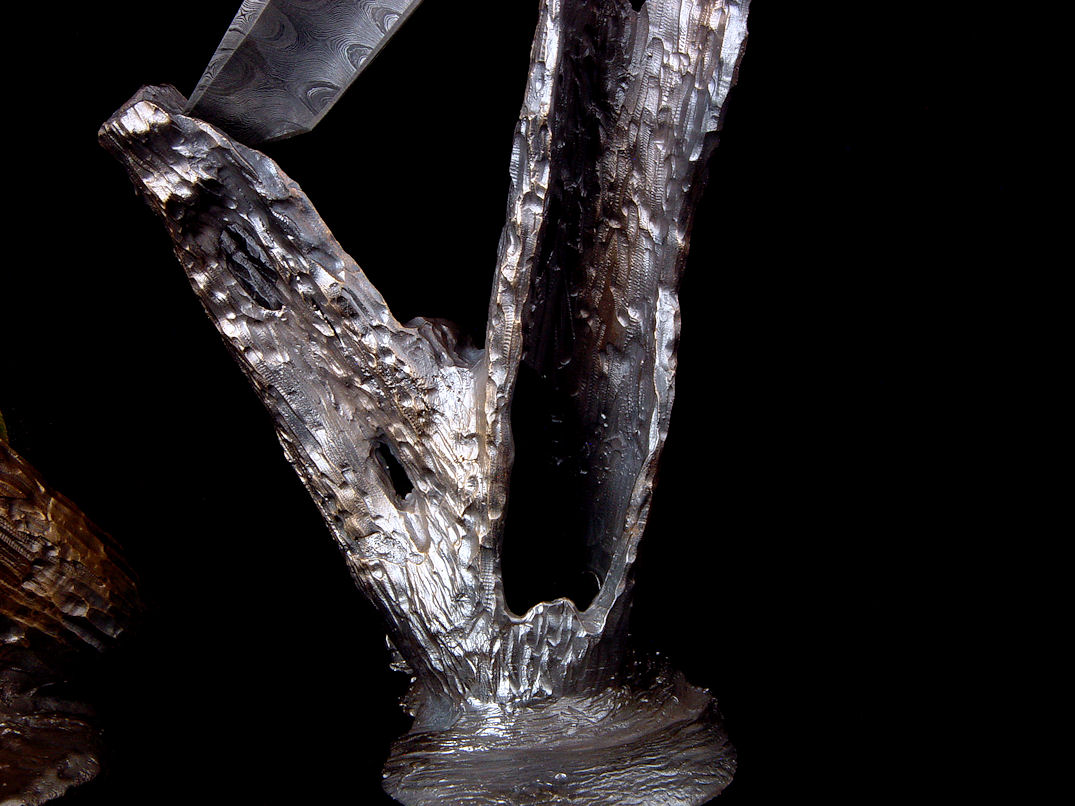

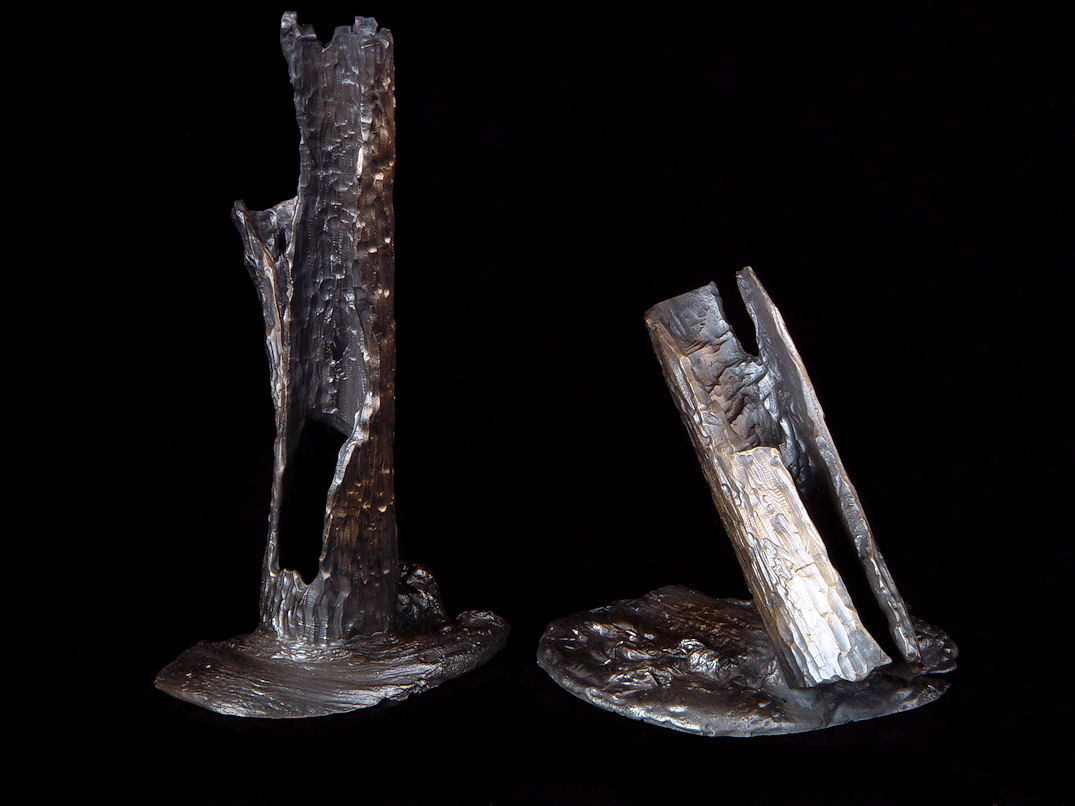

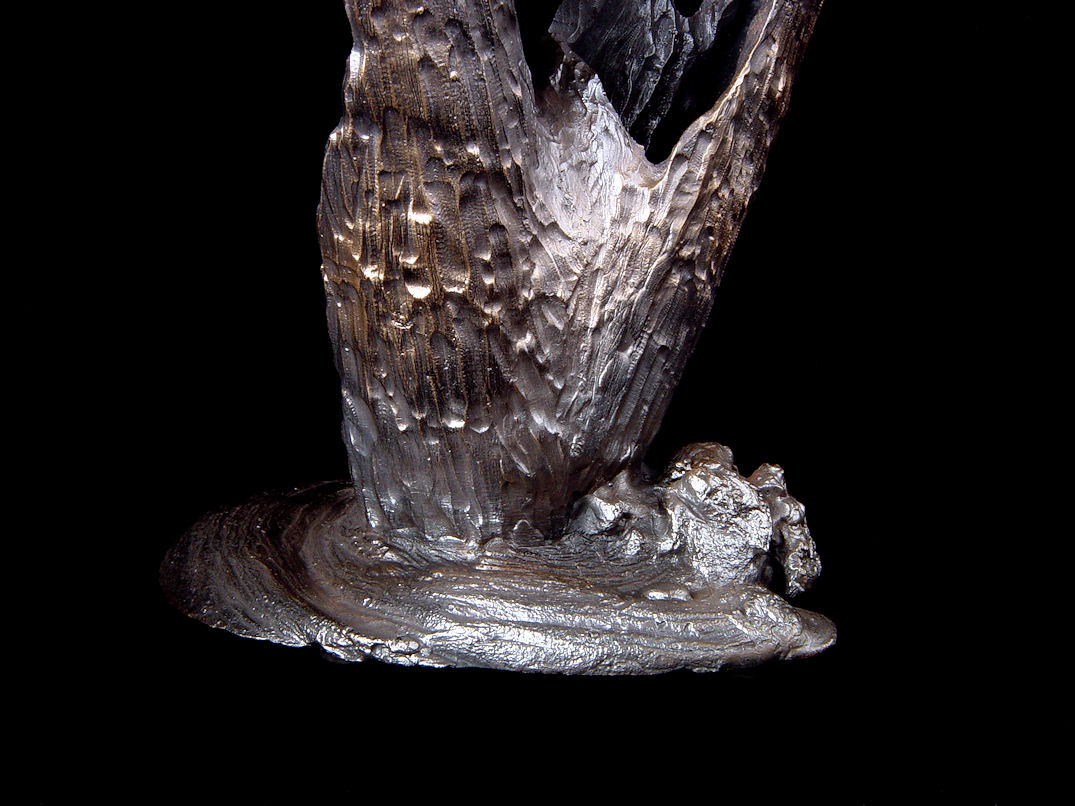

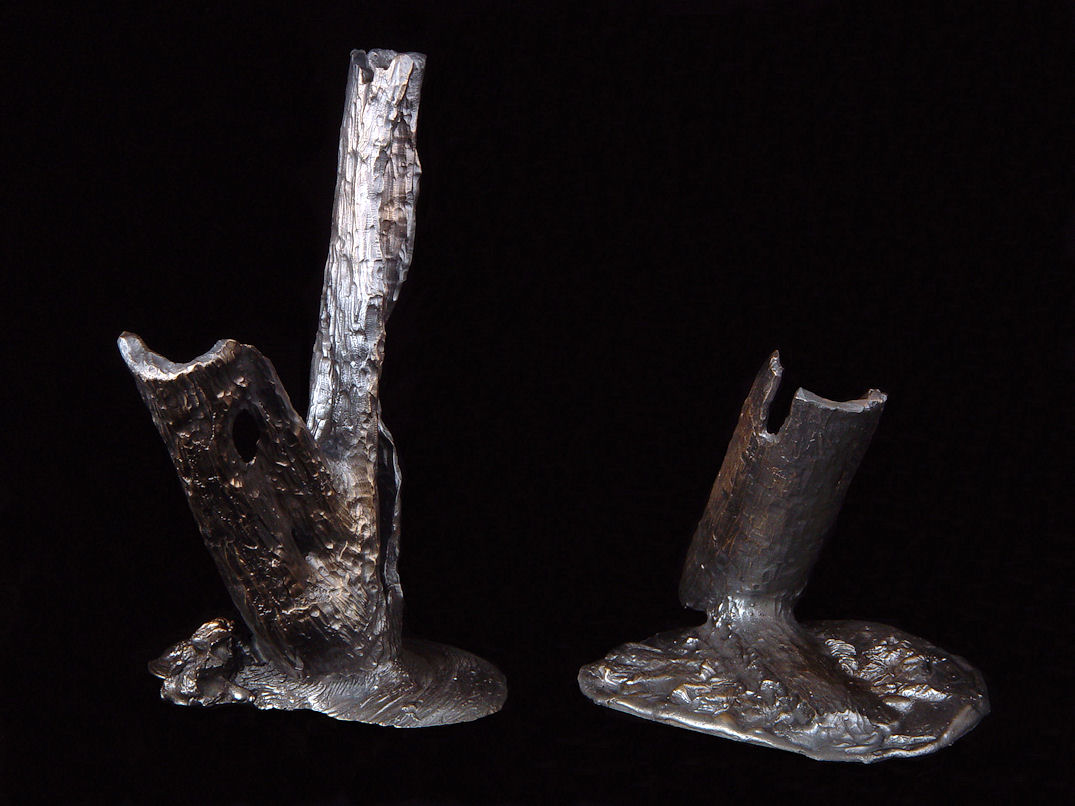

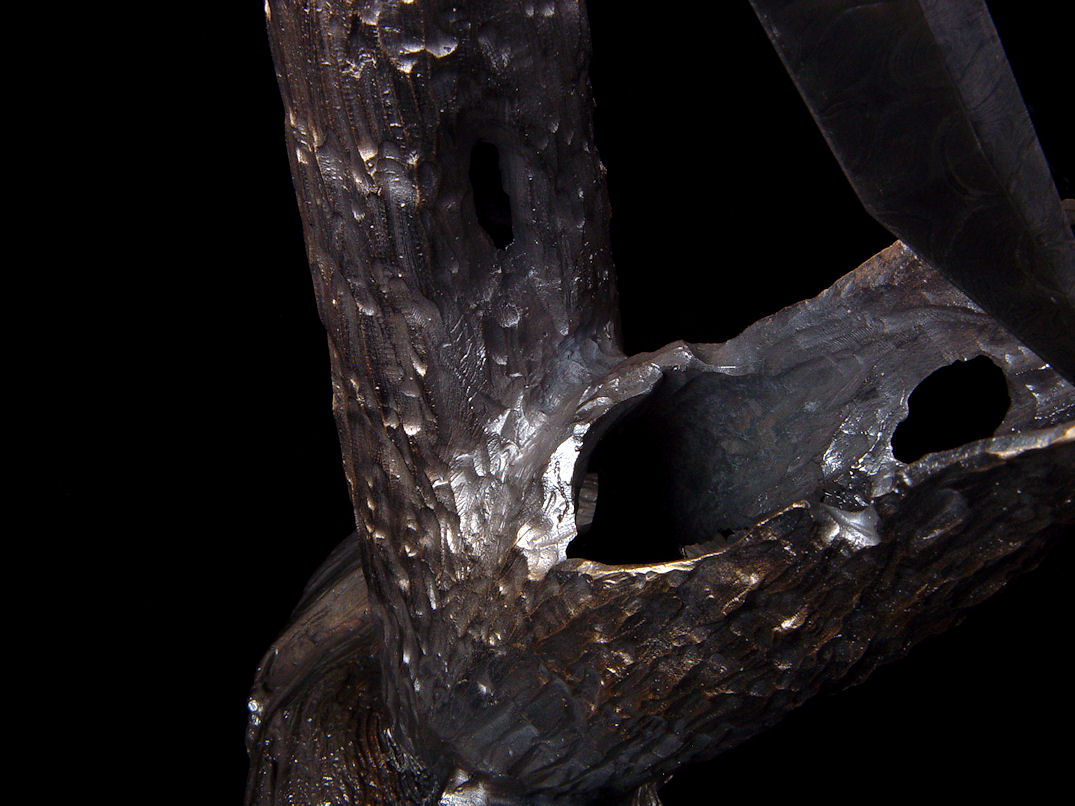

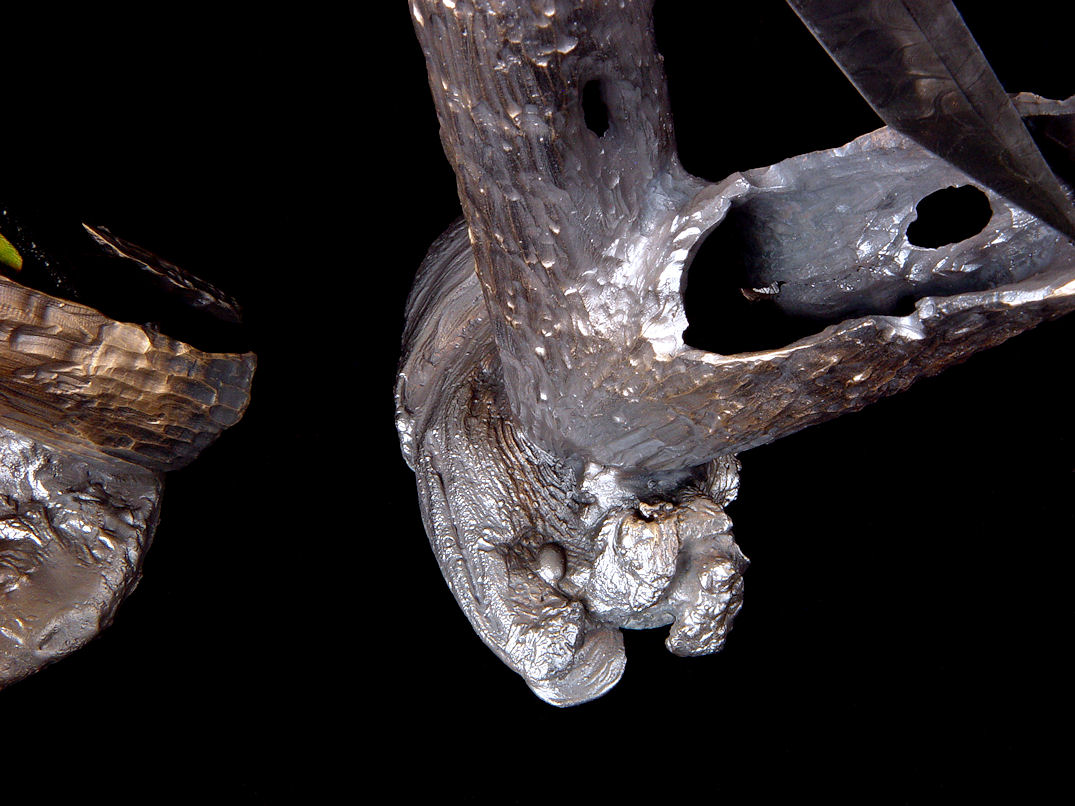

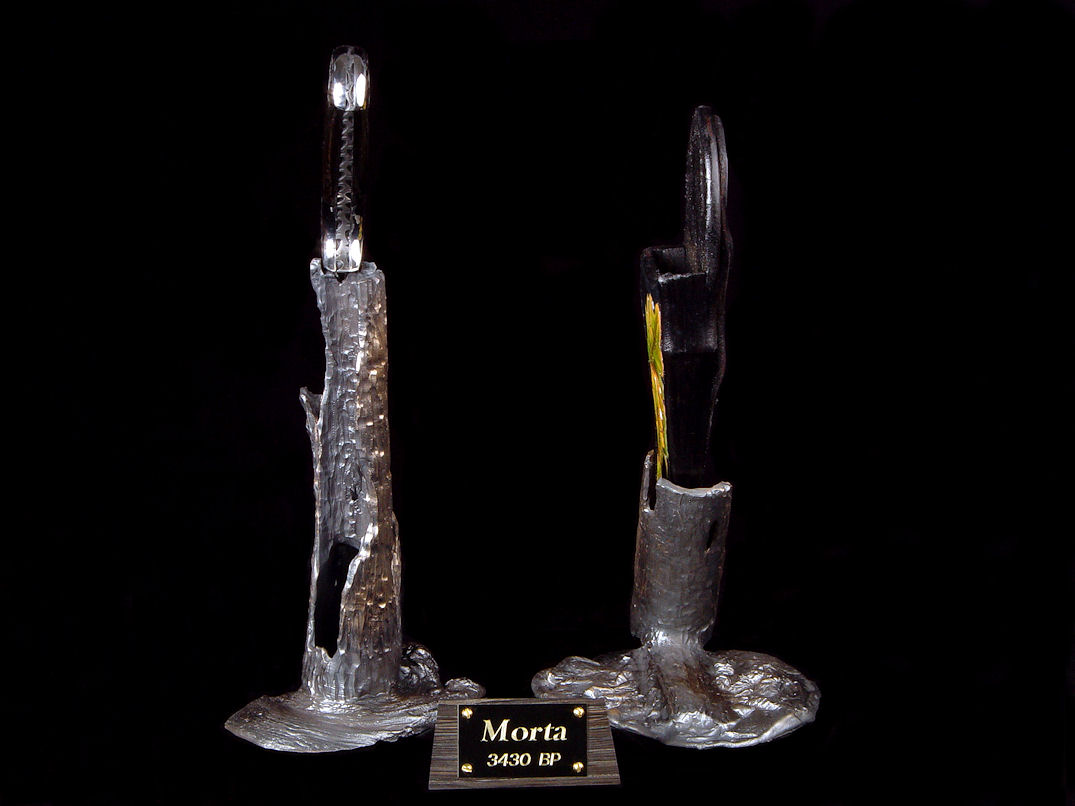

"Morta" stands in hand-cast bronze from wax carvings, patinaed in silver-metallic gray

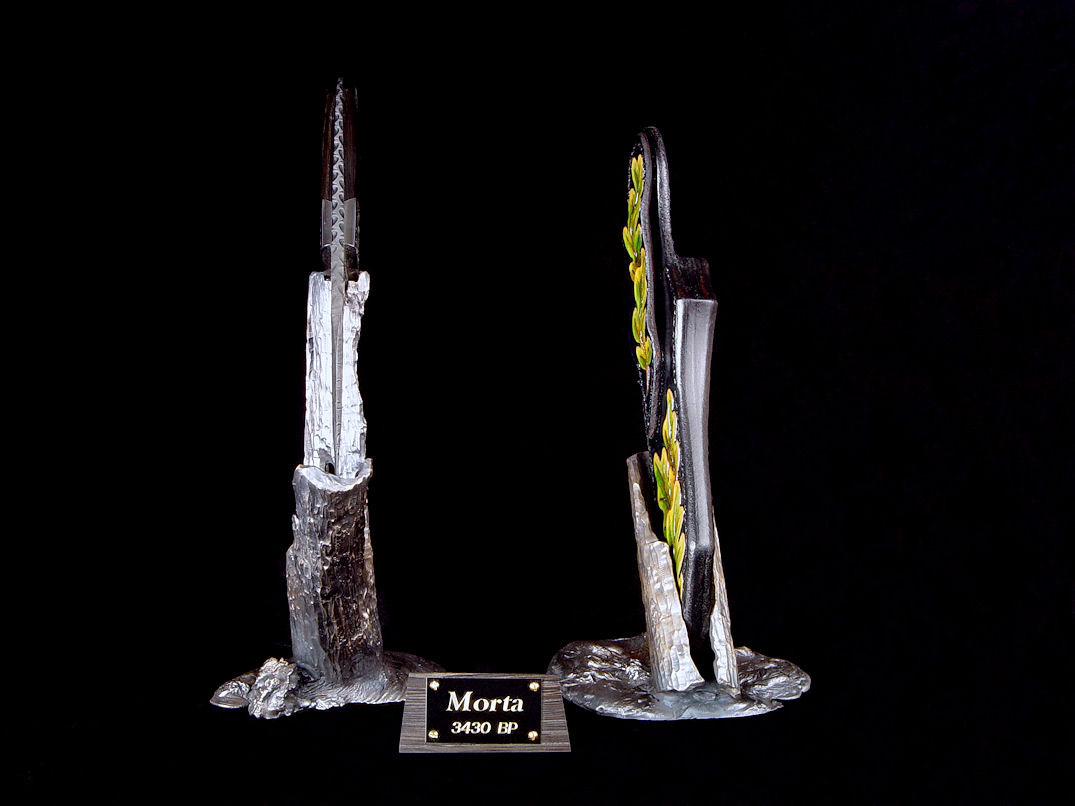

I completed the piece with a custom nameplate made of the same bog oak, and an engraved black lacquered brass plate, attached with brass screws. Morta has been dated at 3430 years Before Present time.

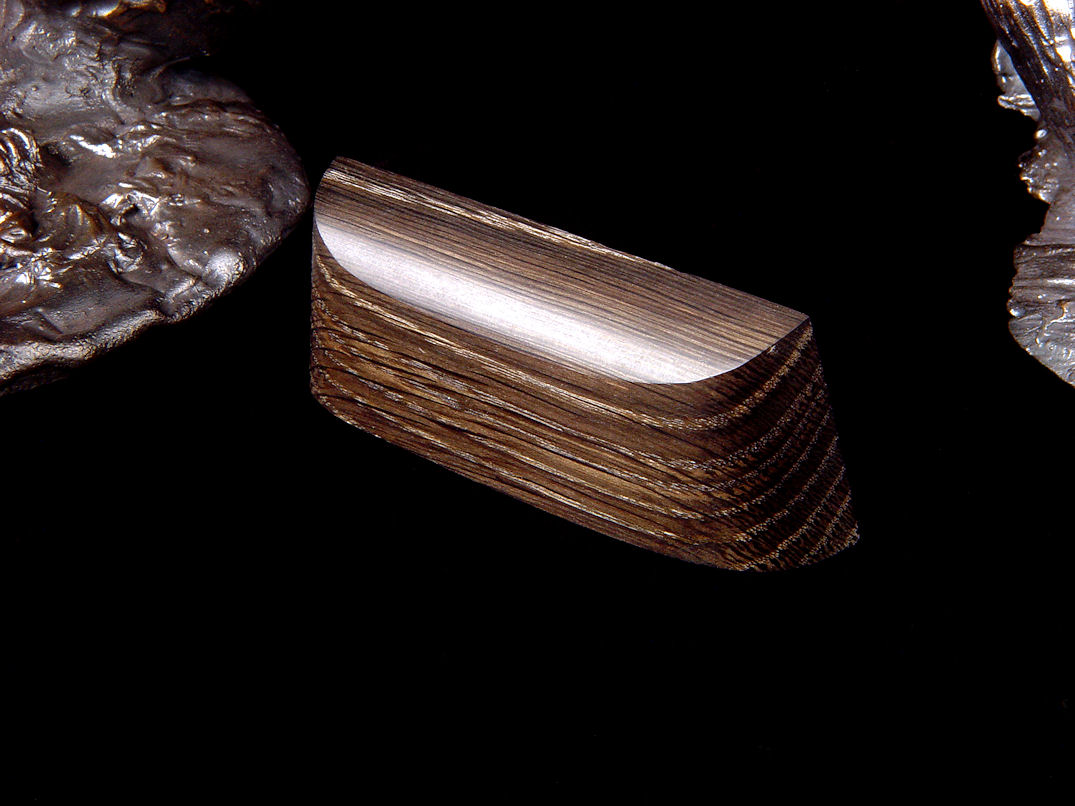

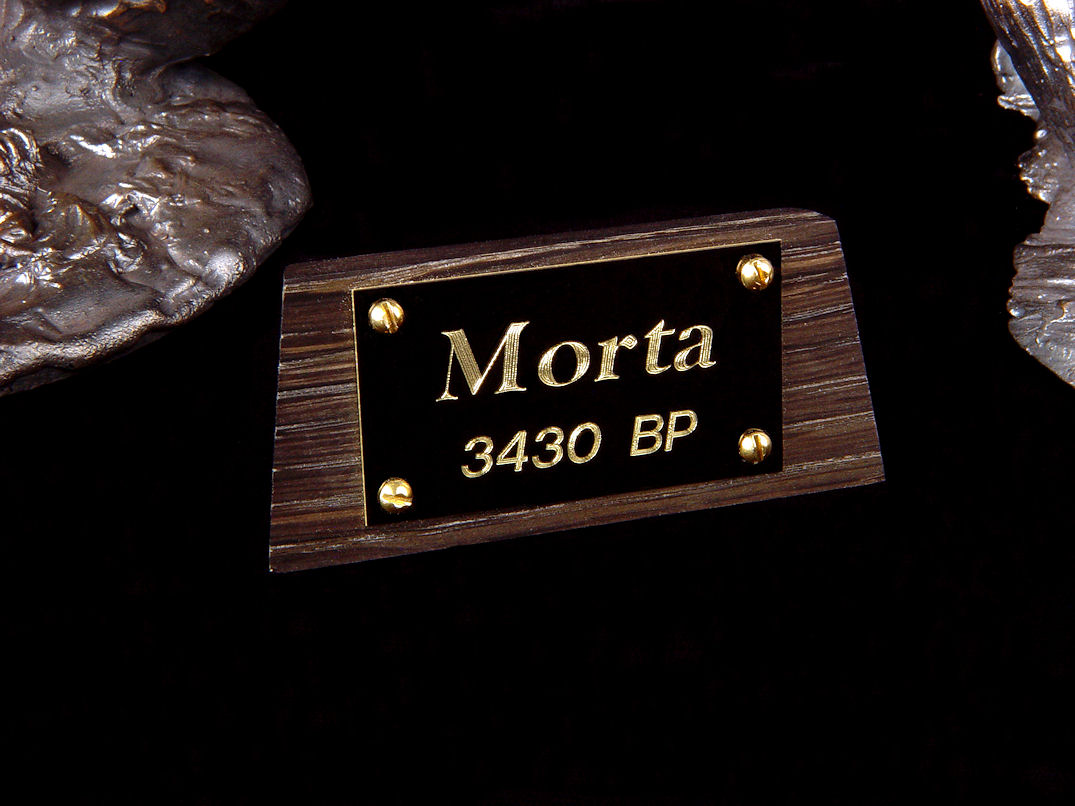

"Morta" nameplate in 3420 year old bog oak, engraved black lacquered brass, brass screws

I've taken a lot of photos of this piece, for I can enjoy them long after Morta has found a home. I hope you enjoy them too, and can understand the feeling of infinite time that is reflected in this work of art.

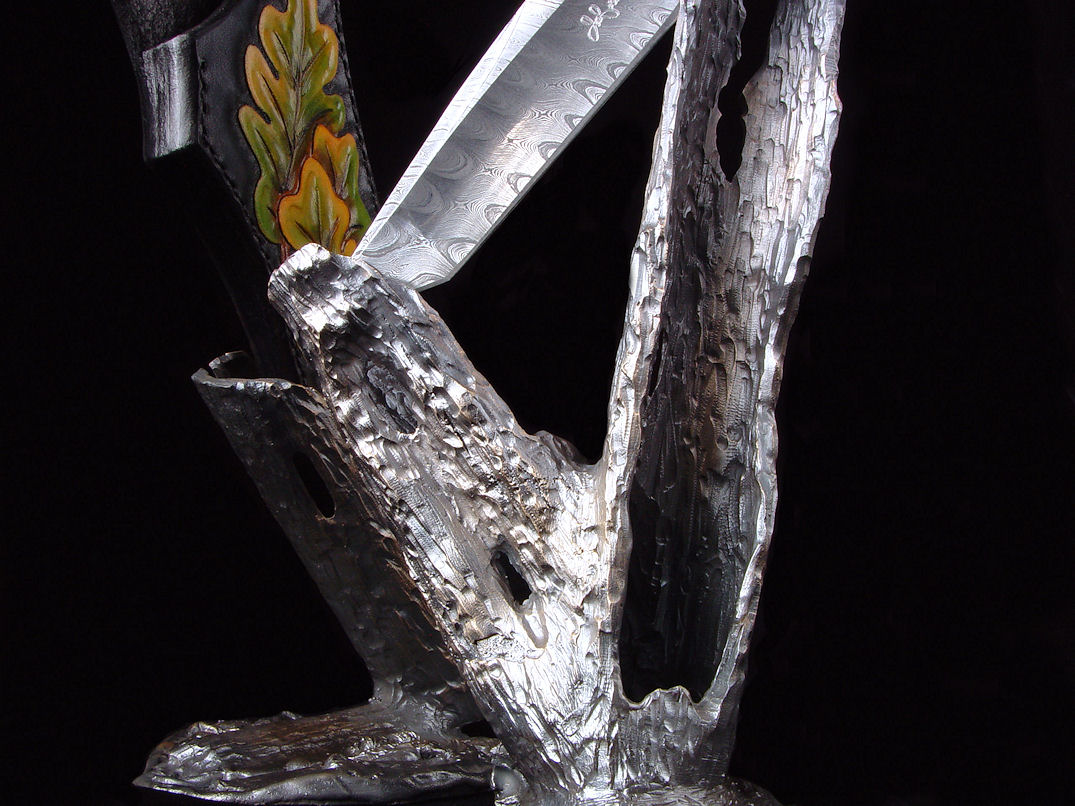

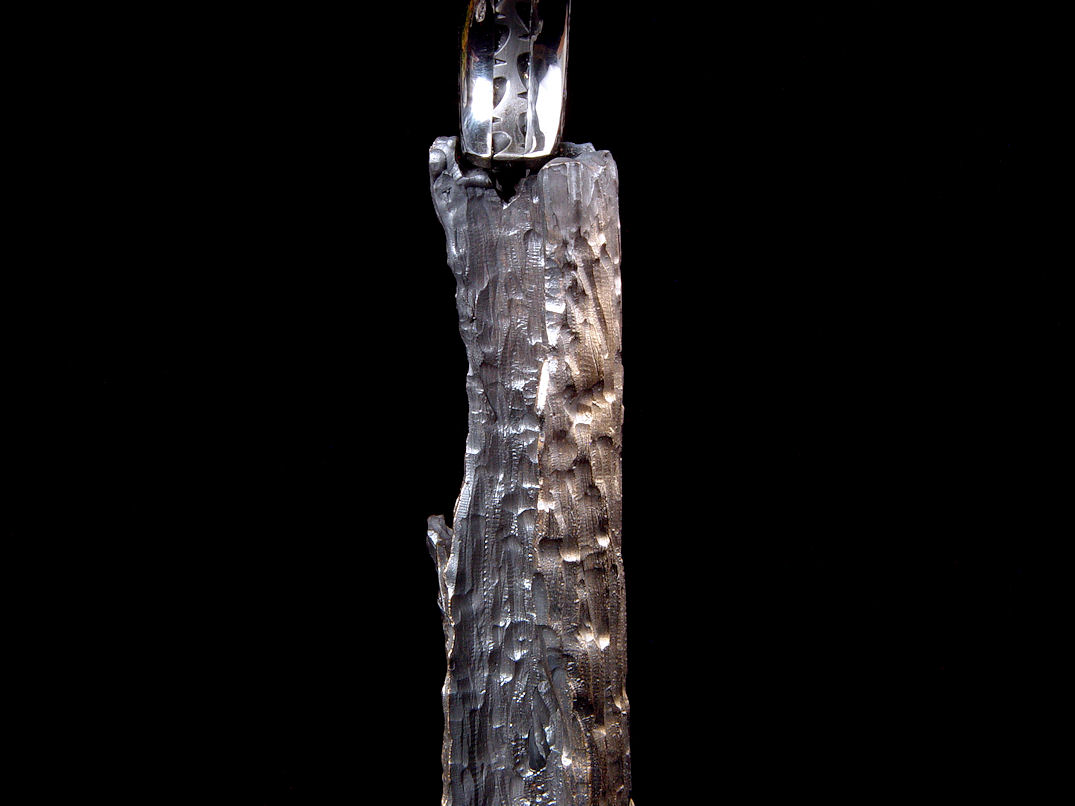

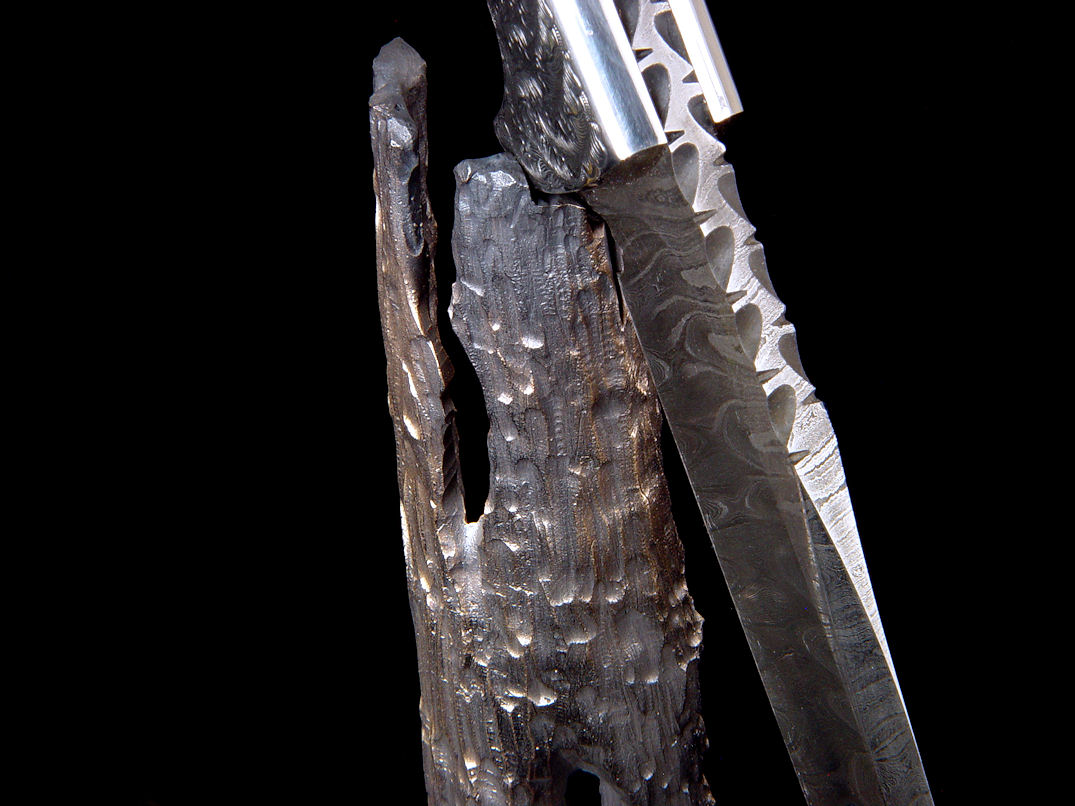

"Morta" blade and stand detail, cast bronze and damascus steel blade
"Morta" Knife Sculpture Specifications, Materials
  • Size
    • Overall Sculpture: Knife: 11.25" (28.6 cm) height x 7.25" (18.4 cm) wide x 4.5" (11.4 cm) depth
      Sheath: 10.75" (27.3 cm) height x 7" (17.8 cm) wide x 4.75" (12.1 cm) depth
    • Knife: Length Overall: 9.6" (24.4 cm), Blade Length: 5.0" (12.7 cm), Thickness: .221" (5.6 mm)
  • Weight
    • Sculpture with Knife: 3 lbs. (1.361 kg.), Sculpture with Sheath: 2 lbs., 10 oz. (737 grams)
    • Knife: 9.5 oz. (269 grams), Sheath: 5.4 oz. (154 grams)
  • Blade: Pattern welded damascus twist steel in O1 oil hardening tool steel, A36 structural steel, Hardened and Tempered to 58/40HRC
  • Blade Finish: Bright satin, differentially etched and blued
  • Bolsters, Fittings: 304 high nickel, high chromium austenitic stainless steel, hand-engraved
  • Handle: Polished Bog Oak Mineralized Wood, certified 3430 years old, BP (Before Present)
  • Sheath: Hand-carved, hand-dyed leather shoulder, hand-stitched in nylon
  • Holder/Sculpture: Silicon Bronze hand-cast by lost wax process, silver-gray patina, neoprene feet
  • Nameplate: Polished Bog Oak Mineralized Wood, certified 3430 years old, engraved black lacquered brass with brass screws

Thanks, G. L.!

Please click on additional thumbnail knife photos below
Be sure to watch the video of the casting and shakeout of these fine castings.

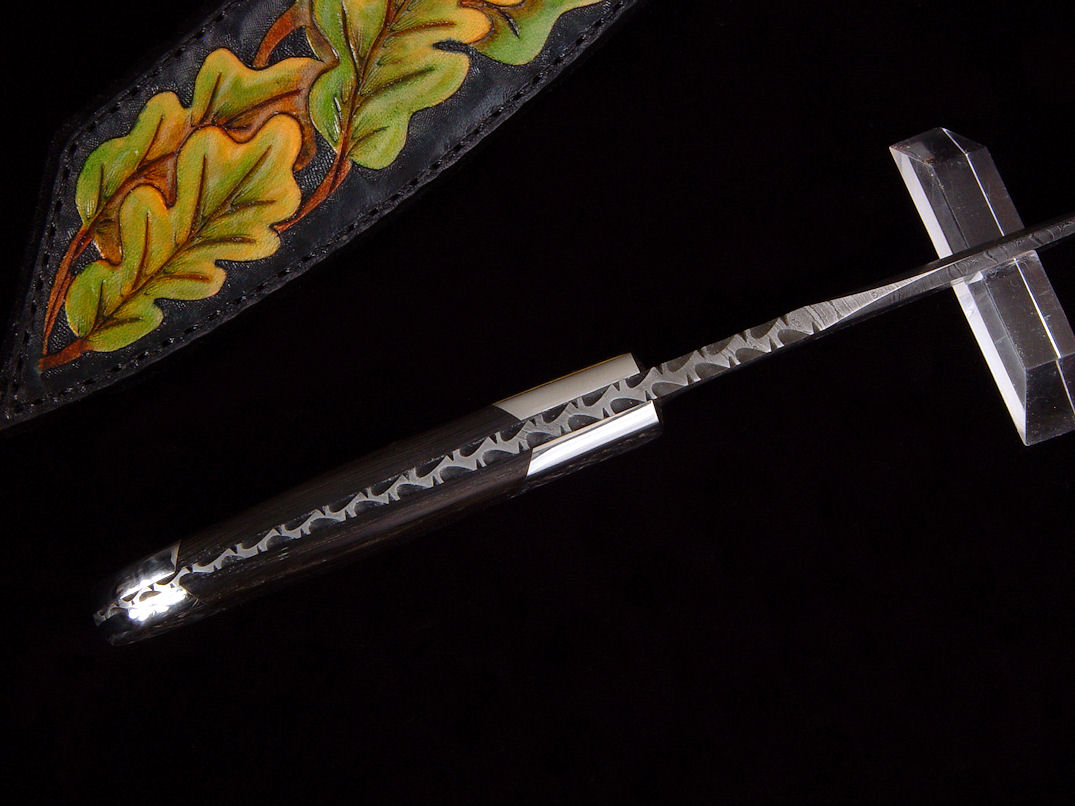

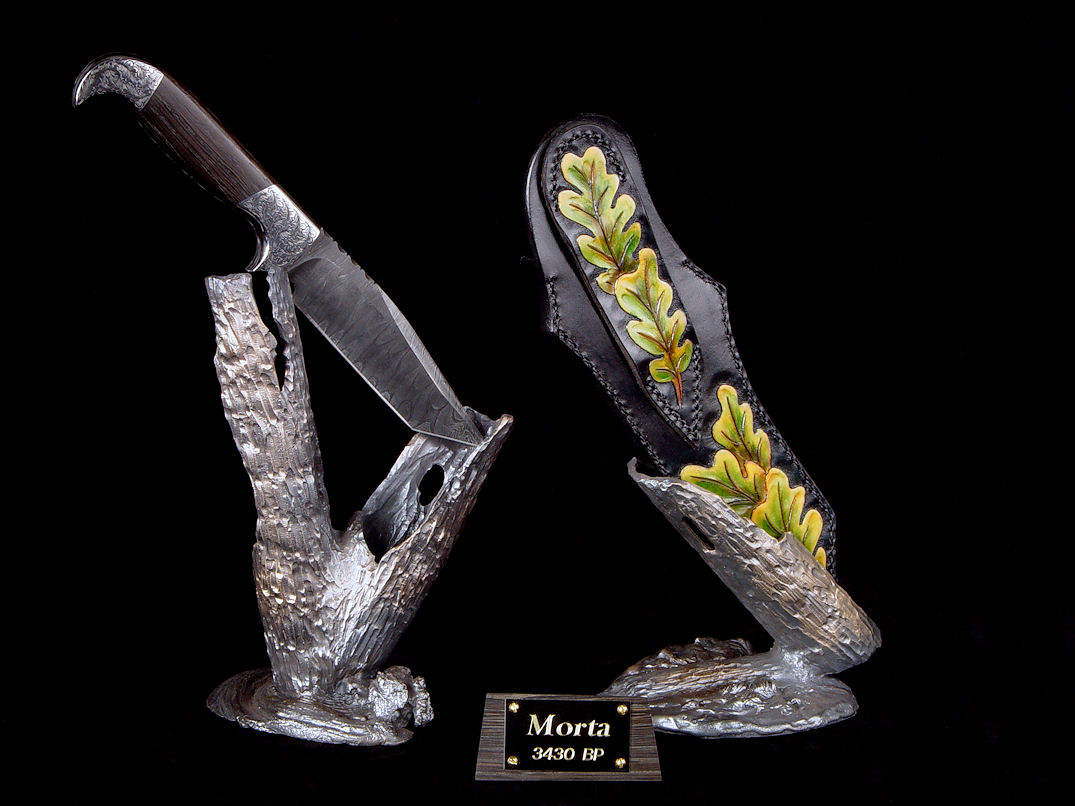

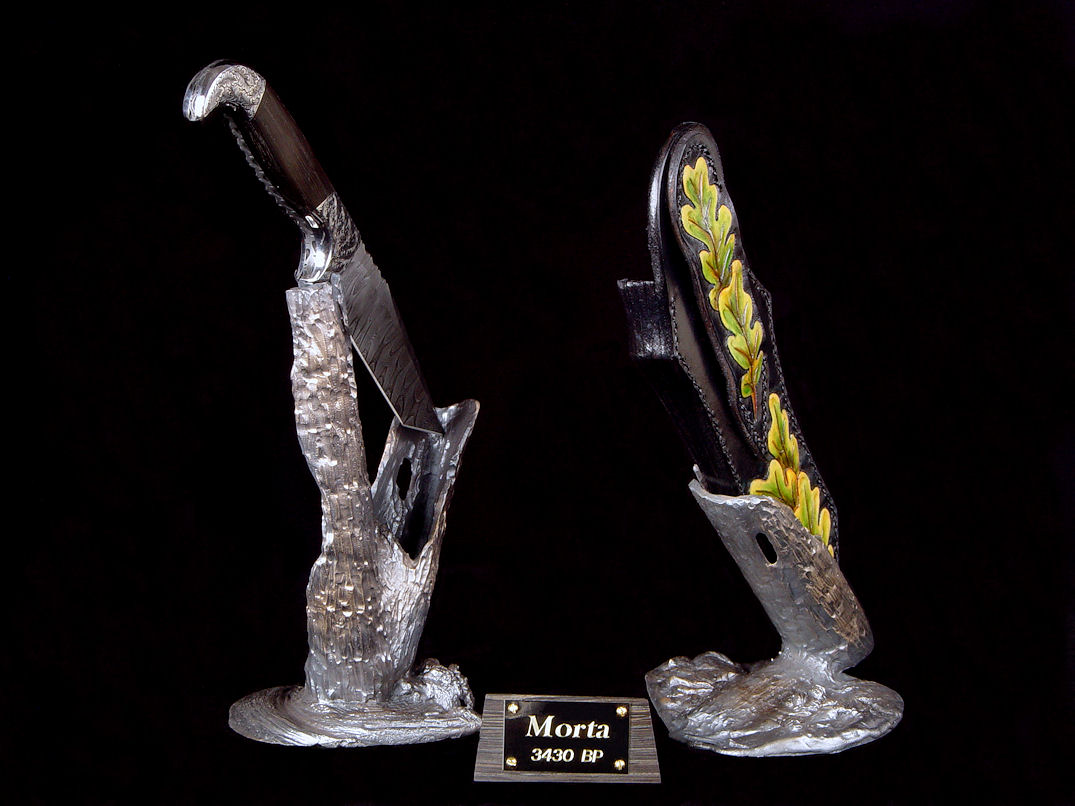

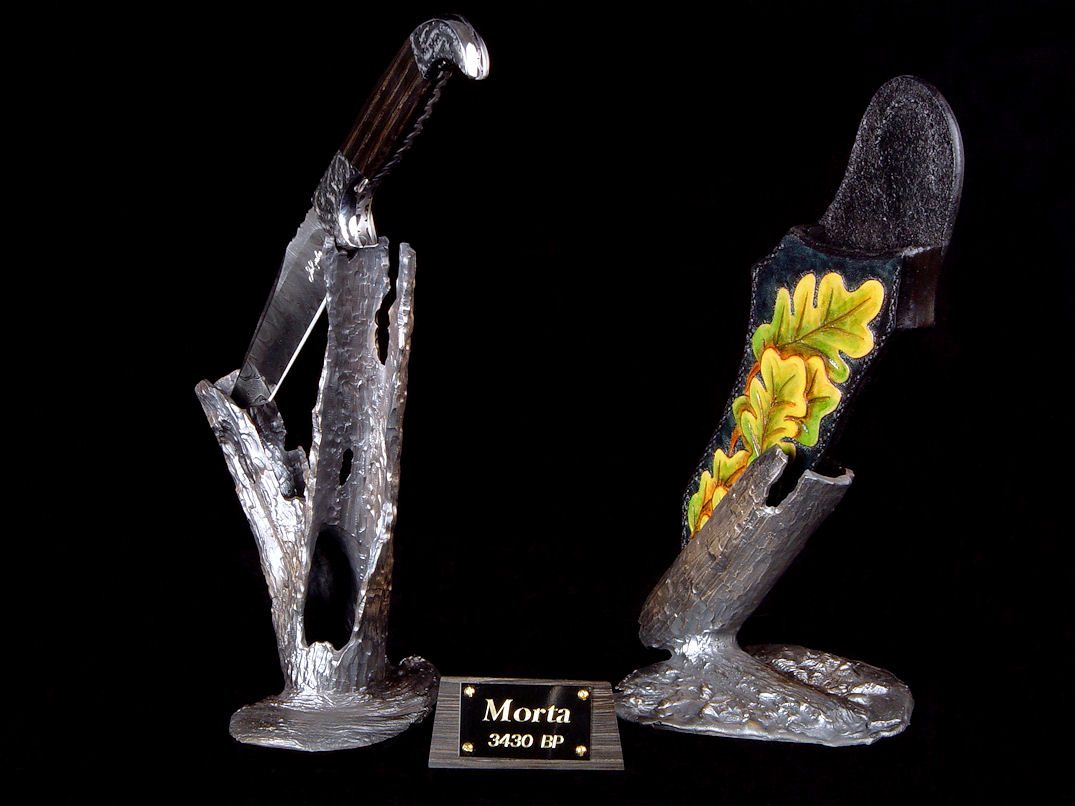

"Morta" front left view. Knife sculpture with damascus blade knife on stand and hand-carved leather sheath on bronze stand "Morta" fine sculptural knife and cast bronze display stand, end view, left. Knife and sheath rest in dedicated sculptural forms cast in bronzed "Morta" knife sculpture, left rear view. Knife and stand rest in complimentary hand-cast bronze stands "Morta" knife sculpture. Stands are cast by lost wax process, without copies "Morta" knife sculpture, right end view. Forms are carved in wax and cast in molten bronze by hand. "Morta" knife sculpture featuring ancient bog oak knife handle "Morta" knife sculpture, front view. Damascus pattern welded blade, hand-engraved bolsters match silver patina of bronze casting "Morta" knife and stand. Knife rests in hand-cast bronze, unique and singular knife sculpture "Morta" knife and stand, reverse side view. High detail wax carving yields detailed casting in silicon bronze "Morta" sheath stand view. Sheath is hand-carved, hand-dyed leather shoulder "Morta" sheath and stand view, back. Even sheath belt loop is hand-carved and hand-dyed "Morta" cast stands in silicon bronze are individual sculptures alone "Morta" cast bronze stands detail. High three dimensional detail of wax carving cast in heavy bronze with patina "Morta" bronze knife and sheath stand detail. Many hours of fine carving in wax are cast in solid bronze metal "Morta" reverse side view. Sheath has complete work on back side, is hand-stitched with nylon for durability "Morta" knife filework edgework detail. Deep relief pattern in damascus carbon steel blade "Morta" inside handle detail. Bolsters are dovetailed stainless steel, all surfaces are contoured, rounded, polished, finished. "Morta" obverse side handle scale detail. Bog oak is intensely old, mineralized wood that is stable, beautiful, strong. "Morta" pattern welded twist damascus blade in O1 and A36 steels, deeply hollow ground, etched, and blued "Morta" obverse side rear bolster detail. High resolution engraving by hand in high nickel, high chromium stainless steel. "Morta" reverse side rear bolster engraving detail. Engraving is oak leaves to match bog oak mineralized handle "Morta" reverse side front bolster detail. bolsters are contoured polished, finished, and surfaces hand-engraved stainless steel "Morta" Sheath bronze cast stand, down view. Interesting texture of bog on base with floating log "Morta" knife bronze cast stand, detail of bubbling bog at stump base "Morta" knife blade on stand detail of deep filework complimenting hand-carved wax cast bronze sculptural stand "Morta" cast bronze base with silver-gray patina and bog detail on base "Morta" knife stand detail, cast bronze by lost wax process, hand carved detail "Morta" sheath stand detail in silicon bronze with patina surface in silver-gray with bronze accents "Morta" beautiful stand is independant work of sculpture and art "Morta" knife resting in cast bronze sculptural knife stand "Morta" sheath and stand detail. Hand-dyed leather to reflect turning oak leaves and cycle of life "Morta" knife cast bronze stand bottom detail representing bog and trunk "Morta" knife and sheath in cast bronze stands "Morta" detail of moveable stands cast in bronze by lost wax process "Morta" nameplate back shows color and texture of fine bog oak wood, 3430 years old "Morta" bog oak carbon dating test and results, provenance for age of Ukranian bog oak "Morta" carving wax models for casting into bronze knife stand "Morta" complex wax patterns, handmade, hand-carved into models for lost wax casting "Morta" Wax models fittted to knife and sheath for casting in bronze with lost wax casting "Morta" sprue and vent attachment for wax models to allow bronze to flow into void and air to vent out "Morta" vent and sprue placement for bronze casting. At the bottom is the sprue gate former where bronze will be poured in (model inverted) "Morta" wax model for sheath stand, with sprues and vents attached "Morta" casting flasks for stands, made of welded coffee cans, with wax models inverted inside, ready for investing "Morta" wax models in flasks, invested with specialized casting plaster investment, ready for burnout "Morta" cast bronze for knife and sheath stand with ingots of silicon bronze in background, after casting.
