Sadr
"Sadr" Liner Lock Folding Knife
- Size: Length overall: (open): 6.6" (16.8 mm), Blade Length:
2.8" (7.2 cm), Length Closed: 3.8" (9.7 cm), Thickness:
.125" (.32 cm)
- Case Size: 4.5"
long x 2.6" wide x 1.4" tall (11.4 cm x 6.6 cm x 3.5 cm)
- Weight: Knife: 3.5 oz. Case: 1 lb. 3 oz.
- Blade: 440C High Chromium Martensitic Stainless
Tool Steel, Hardened and Tempered to Rockwell C59, hollow ground and
mirror polished
- Bolsters, Fittings: 304 Austenitic Stainless
Steel, bright satin finished, hand-engraved
- Thumb Stud: 304 Austenitic Stainless Steel,
hand-engraved, set with faceted Rhodolite Garnet gemstone
- Liners: Cobalt blue anodized 6AL4V titanium,
fully fileworked
- Handle: Polished New Mexico Jasper Gemstone
- Case: Porphyry Granite, Labradorite Porphyry Granite

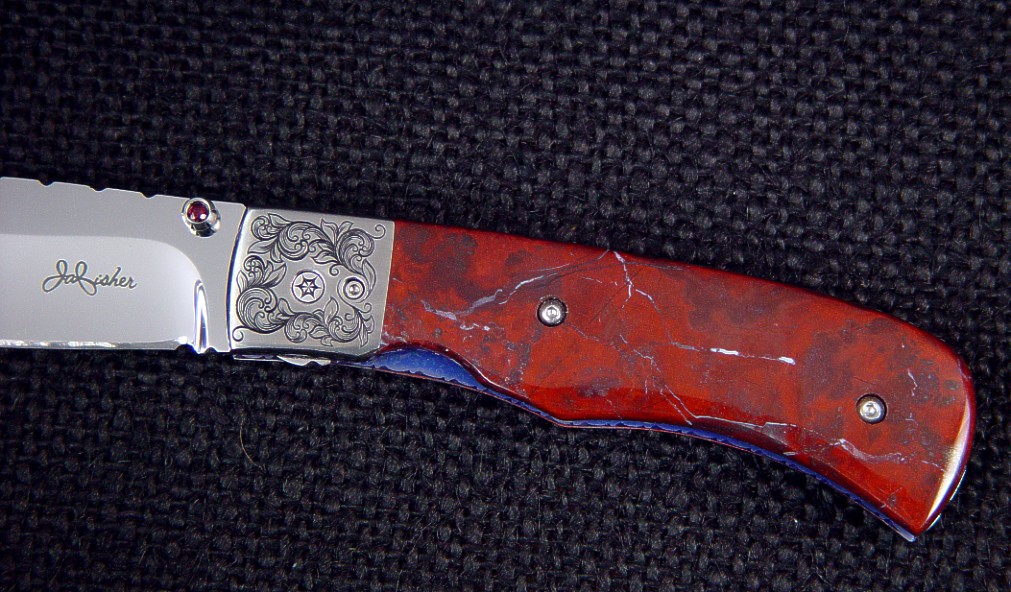

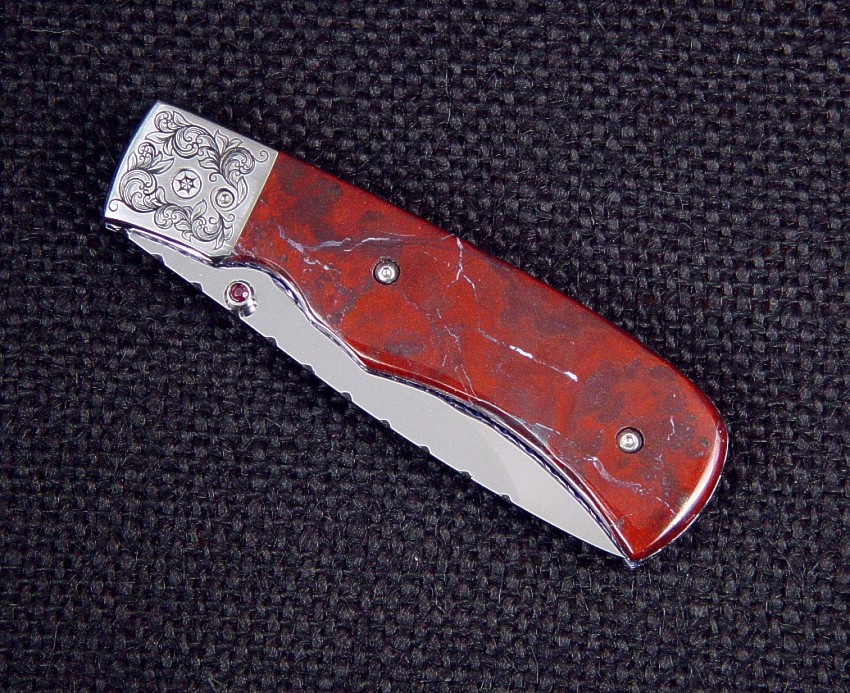

- Knife: There are very few knives that classify as
presentation grade, and this is one. Sadr (pronounced "sadder")
is named for a star in the constellation Cygnus, and is in a complex
region of the Milky Way, surrounded by reddish interstellar clouds,
excited by the glow of ultraviolet hot stars. Sadr lies at the
center of the constellation of the northern cross. I carried this
theme throughout the knife and case. For the blade, I chose 440C
high chromium martensitic stainless steel, for its great beauty,
corrosion resistance, and longevity. Hollow ground in a gentle and
accurate grind, the blade and spacer (also made of hardened and
tempered 440C) are fully fileworked and engraved in my "starshine"
pattern. Even the inside of the spacer has the design. Mounted in
the blade are a pair of handmade thumb studs, made from 304 high
chromium, high nickel austenitic stainless steel, hand-engraved with
accents and set with Rhodolite Garnet faceted gemstones that match

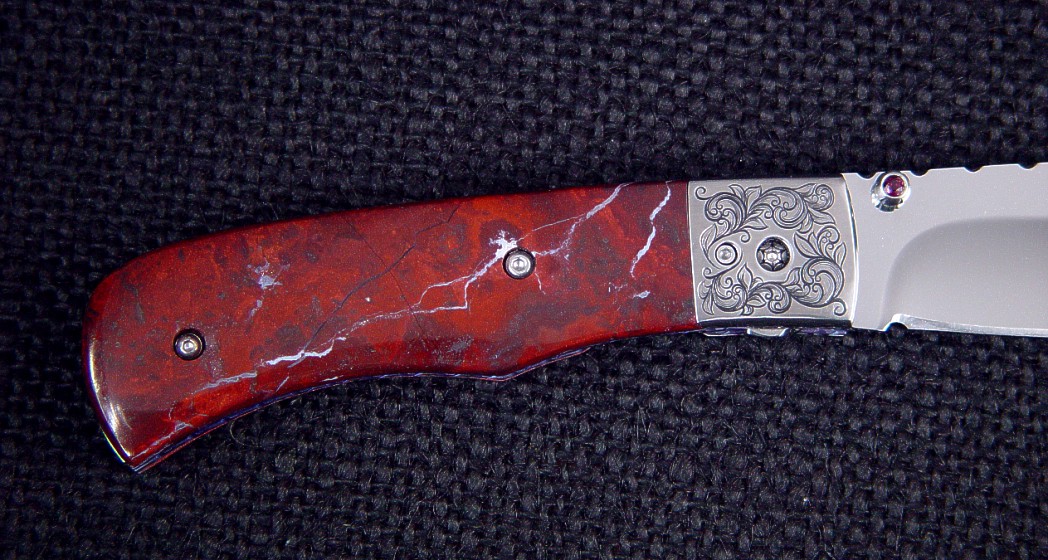

the handle. The bolsters are also made of 304 stainless, and I
hand-engraved them with a fine scrolled pattern that surrounds and
emphasizes the pivot and pivot screw head, which are engraved in a

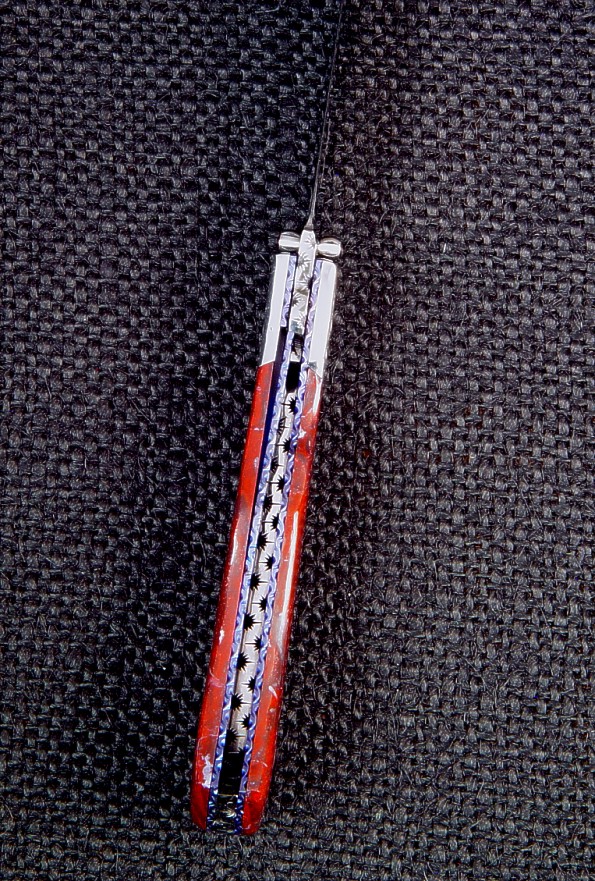

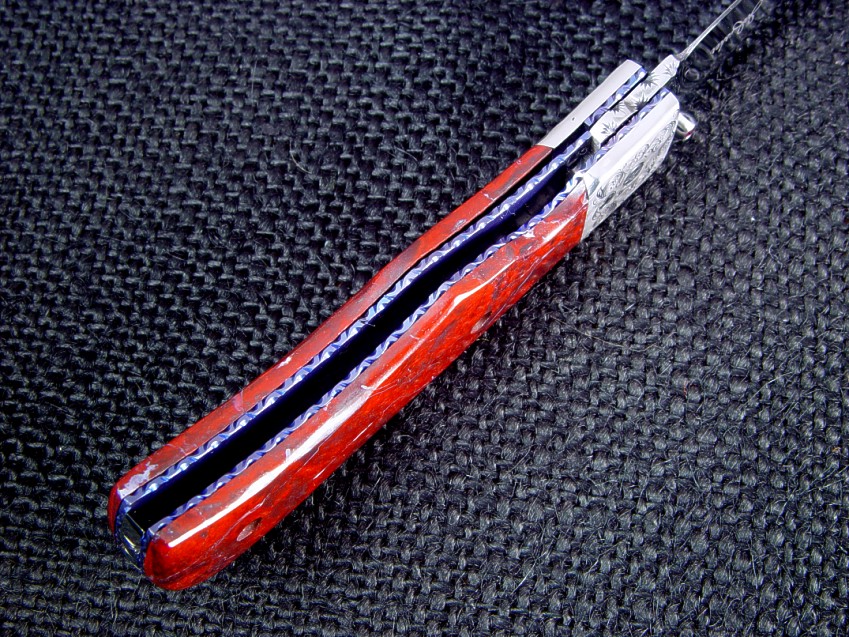

hex-star pattern. The knife liners are fileworked 6AL4V titanium,
which I anodized to a deep, cobalt-blue color to match the theme of
the knife. The filework on the liners is extremely fine, please
remember when you're looking at the pictures that the liners are
less than .050" thick! All of these pictures are enlargements; for
example, the photo above is over twice the size of the knife. For
the handle scales, I chose a tough, hard, and fascinating polished
red Jasper gemstone from New Mexico that has white agate "lighting bolts" playing
through the cloudy reds and burgundy colors of Jasper. The action of
the knife is snug on closure, with smooth locking and a solid feel.

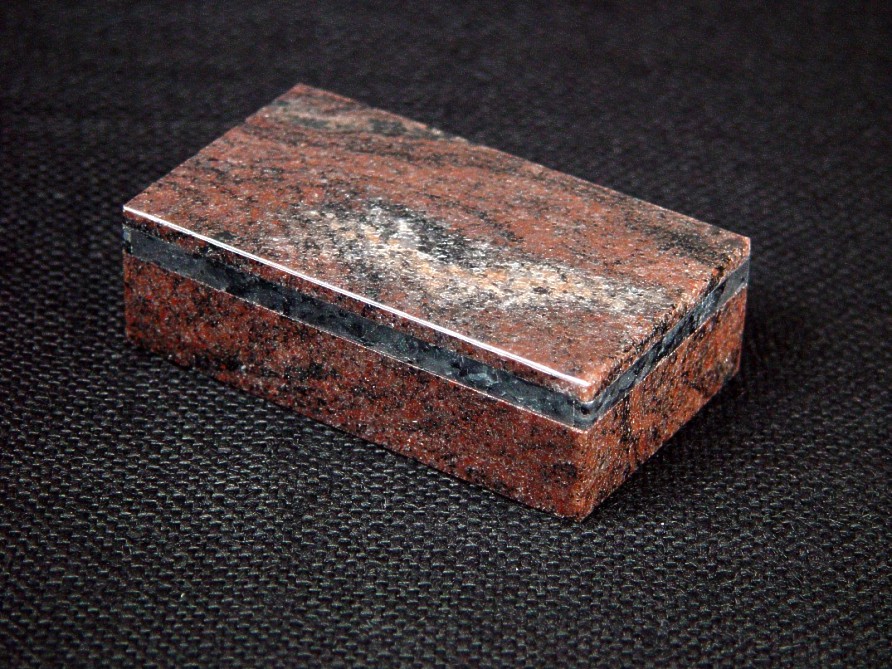

- Case: A knife this nice could not just be
shoved into a pocket, it needed a display and presentation case
befitting the effort and idea. So I created a very nice Porphyry
Granite combination stone case. The first Porphyry Granite is
composed of large crystals (or phenocrysts) of quartz, feldspar,
biotite, and hornblende. The Granite is surrounded with a ring of
gray-blue Labradorite Porphyry Granite, also containing basalt. The
Labradorite shines with silvery-blue reflections depending on the
light and viewing angle. Weighing over a full pound, yet only 4.5
inches long, the Granite case is polished throughout, and lined with
suede leather. I've cut and polished two finger cuts into the inside
of the case for easy removal of the knife. The case was quite a bit
of lapidary work and I don't think you'll find anything else like it
in the knife world. I love the feel of this glossy polished rock,
and it's heavy and solid, just right for storage of this fine,
unique knife.
Thanks, J.P.!
Jay,
I received "Sadr" yesterday. Thank you for your promptness.
As you know, this is a beautiful knife in all ways, but your custom
filework and engraving impress me the most. The attention to detail
is incredible. It makes me wonder how much time it takes to create
such a knife.
Please keep up the great works.
--J.
